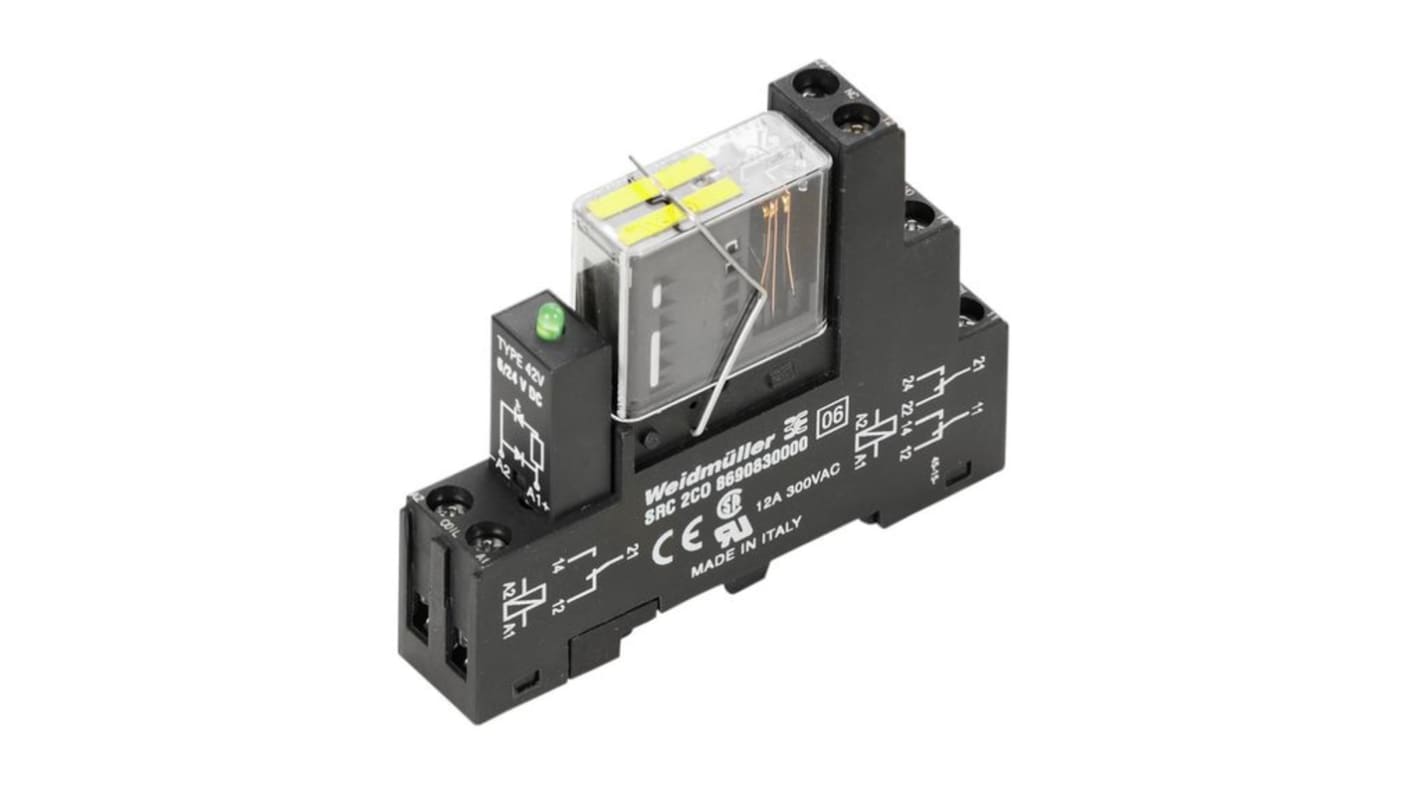

Weidmüller DIN Rail Power Relay, 24V dc Coil, 6A Switching Current, DPDT
- RS Stock No.:
- 288-1749
- Distrelec Article No.:
- 302-77-411
- Mfr. Part No.:
- 1218410000
- Brand:
- Weidmüller
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 288-1749
- Distrelec Article No.:
- 302-77-411
- Mfr. Part No.:
- 1218410000
- Brand:
- Weidmüller
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Weidmüller | |
| Product Type | Power Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mount Type | DIN Rail | |
| Series | RIDER | |
| Terminal Type | Screw | |
| Switching Current | 6A | |
| Switching DC Voltage | 250V dc | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Coil Resistance | 720Ω | |
| Maximum Operating Temperature | 70°C | |
| Width | 16mm | |
| Height | 78mm | |
| Coil Power | 759mW | |
| Standards/Approvals | No | |
| Length | 62mm | |
| Contact Material | Silver Copper Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand Weidmüller | ||
Product Type Power Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mount Type DIN Rail | ||
Series RIDER | ||
Terminal Type Screw | ||
Switching Current 6A | ||
Switching DC Voltage 250V dc | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Coil Resistance 720Ω | ||
Maximum Operating Temperature 70°C | ||
Width 16mm | ||
Height 78mm | ||
Coil Power 759mW | ||
Standards/Approvals No | ||
Length 62mm | ||
Contact Material Silver Copper Nickel Alloy | ||
- COO (Country of Origin):
- RO
The relay module is a reliable and efficient solution for various control applications. With 2 CO contacts, optional status indicators, and a test button, The module offers flexibility and ease of use in a compact package. Tested for dielectric strength and function, The module ensures reliable performance in demanding environments.
Proven component with excellent reputation in safety technology
99% diagnostics coverage for reliable performance
2 CO contacts with 6 A, forcibly guided according to EN 61810-3 type B
Alert contact maintains switching status in case of errors
Rated c
