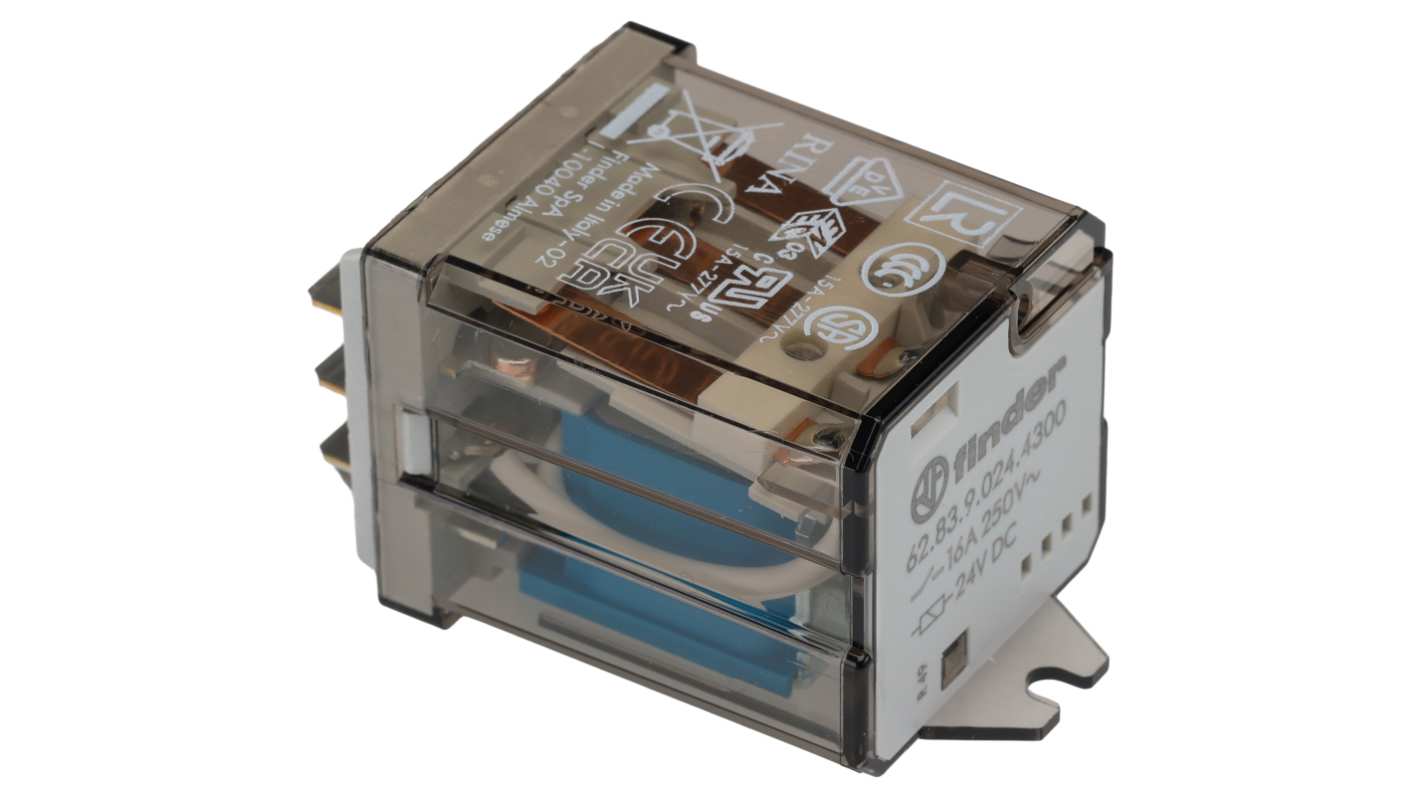

Finder Flange Mount Power Relay, 24V dc Coil, 16A Switching Current, 3PST

View all Power Relays

Subtotal (1 unit)*

£17.31

(exc. VAT)

£20.77

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 22 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£17.31

*price indicative

RS Stock No.:
282-6695
Mfr. Part No.:
628390244300
Brand:
Finder
Find similar products by selecting one or more attributes.
Select all

Brand

Finder

Coil Voltage

24V dc

Contact Configuration

3PST

Mounting Type

Flange Mount

Switching Current

16A

Number of Poles

3

Series

62

Maximum Switching Voltage AC

400V ac

Maximum Switching Voltage DC

220V dc

Maximum Switching Current AC

120 A

Coil Power

3W

Standards Met

cURus, EAC

Contact Material

Silver Alloy

Isolation Coil To Contact

6kV

Maximum Operating Temperature

+50°C

Life

100000 Cycles

Minimum Operating Temperature

-40°C

Number of Coils

Single

COO (Country of Origin):
IT

Finder Series 62 Power Relay, 24V DC Coil Voltage, 16A Switching Current - 628390244300


This power relay is a high-performance device designed for various industrial applications. It operates at a coil voltage of 24V DC, featuring a robust 3PST configuration that allows for efficient switch operations. This model embodies reliable performance and longevity, boasting a life cycle of up to 100,000 cycles. Its flange mount design ensures easy installation in control panels and machinery.

Features & Benefits


• Achieves maximum switching voltage of 400V AC and 220V DC
• Handles a switching current of up to 16A for enhanced performance
• Utilises AgSnO2 contact material for improved durability
• Offers reinforced insulation between coil and contacts for better safety
• Designed to withstand extreme temperatures from -40°C to +50°C
• Meets rigorous isolation standards with 6kV coil-to-contact isolation

Applications


• Suitable for control and management of electric power
• Used in road and tunnel lighting systems
• Ideal for operation in industrial furnaces and ovens
• Effective for driving pumps, motors, and heating systems
• Works seamlessly in control panels and circuit breakers

What is the maximum load capacity for this relay?


The relay can handle a maximum switching current of 16A and a peak current of 120A for short durations, making it suitable for a variety of load requirements.

How does the contact material affect the relay’s longevity?


Utilising AgSnO2 contact material improves the relay's durability, enabling it to withstand higher electrical loads and significantly extend its operational life.

What safety features are integrated into this power relay?


The relay incorporates reinforced insulation between the coil and contacts, ensuring safety under various operational conditions while meeting stringent isolation standards.

Can this relay effectively operate under extreme temperatures?


Yes, it is designed to function efficiently across a wide temperature range from -40°C to +50°C, making it suitable for harsh environments.
