RS PRO PCB Interface Relay, 60V Coil, 6A Switching Current, SPDT
- RS Stock No.:
- 282-4484
- Brand:
- RS PRO
Subtotal (1 unit)*
£11.62
(exc. VAT)
£13.94
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 86 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £11.62 |
*price indicative
- RS Stock No.:
- 282-4484
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Interface Relay | |
| Coil Voltage | 60V | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Terminal Type | PCB Pin | |
| Switching Current | 6A | |
| Switching AC Voltage | 400V ac | |
| Switching DC Voltage | 400V dc | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Coil Resistance | 16.6kΩ | |
| Height | 19mm | |
| Length | 27mm | |
| Coil Power | 210mW | |
| Standards/Approvals | No | |
| Width | 5mm | |
| Contact Material | Silver Tin Oxide | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Interface Relay | ||
Coil Voltage 60V | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Terminal Type PCB Pin | ||
Switching Current 6A | ||
Switching AC Voltage 400V ac | ||
Switching DC Voltage 400V dc | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Coil Resistance 16.6kΩ | ||
Height 19mm | ||
Length 27mm | ||
Coil Power 210mW | ||
Standards/Approvals No | ||
Width 5mm | ||
Contact Material Silver Tin Oxide | ||

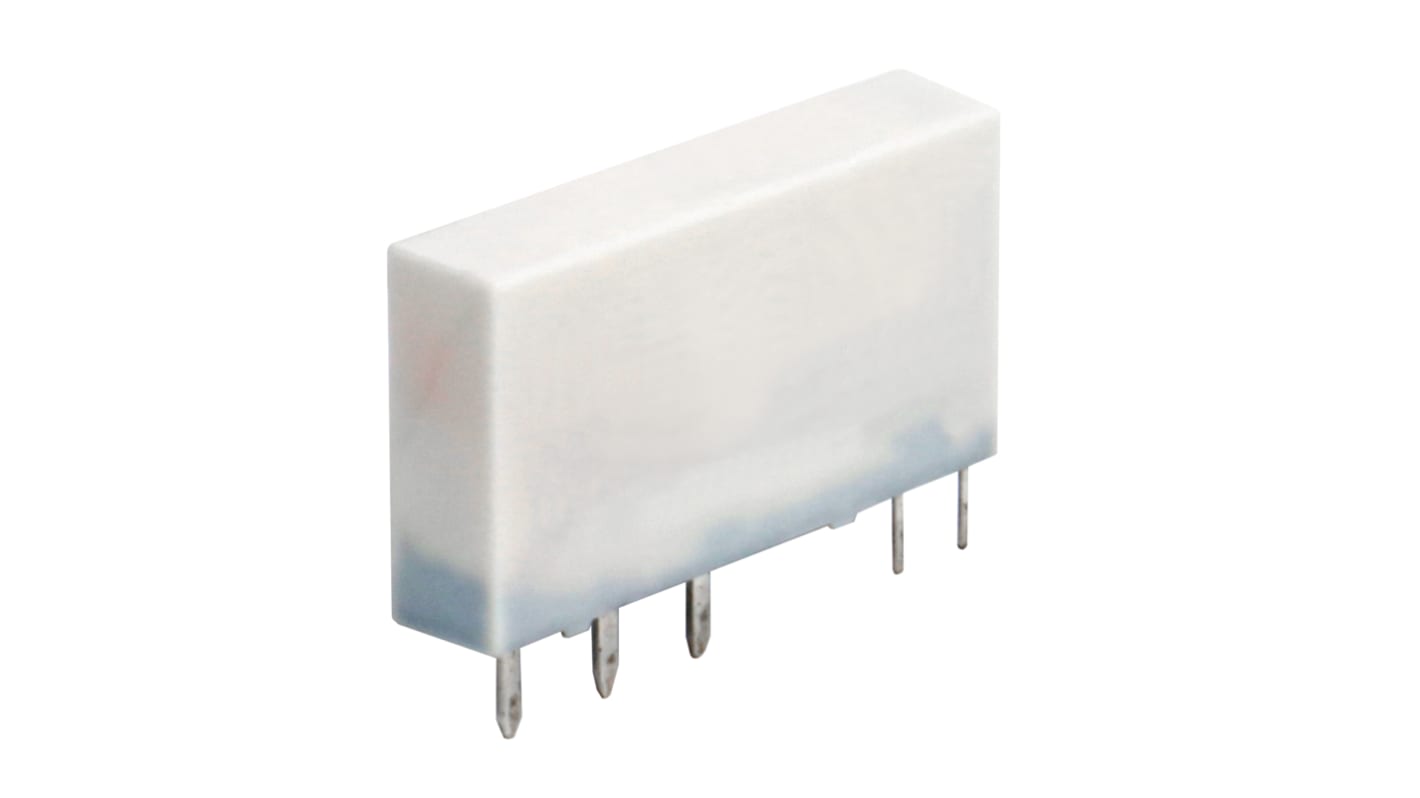

RS PRO 60V SPDT PCB Pin Interface Relay, 6A
An SPDT (Single Pole Double Throw) changeover relay with PCB Pins designed for use with the RS PRO range of interface relay sockets to enable quick installation without the need for soldering.;Ideal for use as a control device the general purpose PCB relay benefits from a high breakdown voltage of 4KV and a surge voltage of up to 6KV between coils and the contacts and features screw terminals for easy installation.;Constructed with Silver Tin Oxide contacts providing a low level of contact resistance with a high level of conductivity for excellent signal stability and strength.
Features and Benefits
60V Interface relay;SPDT changeover;Screw terminals;PCB pins;4KV breakdown voltage;6kV surge voltage;5g weight;Silver Tin contacts;27 x 19 x 5mm dimensions
