RS PRO PCB Interface Relay, 12V Coil, 6A Switching Current, SPDT

View all Power Relays

Subtotal (1 unit)*

£7.24

(exc. VAT)

£8.69

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 9 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£7.24

*price indicative

RS Stock No.:
282-4481
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Interface Relay

Coil Voltage

12V

Contact Configuration

SPDT

Mount Type

PCB

Terminal Type

PCB Pin

Switching Current

6A

Switching DC Voltage

400V dc

Minimum Operating Temperature

-40°C

Switching AC Voltage

400V ac

Maximum Operating Temperature

70°C

Coil Resistance

848Ω

Width

5mm

Length

27mm

Coil Power

170mW

Standards/Approvals

No

Height

19mm

Contact Material

Silver Tin Oxide

COO (Country of Origin):
CN

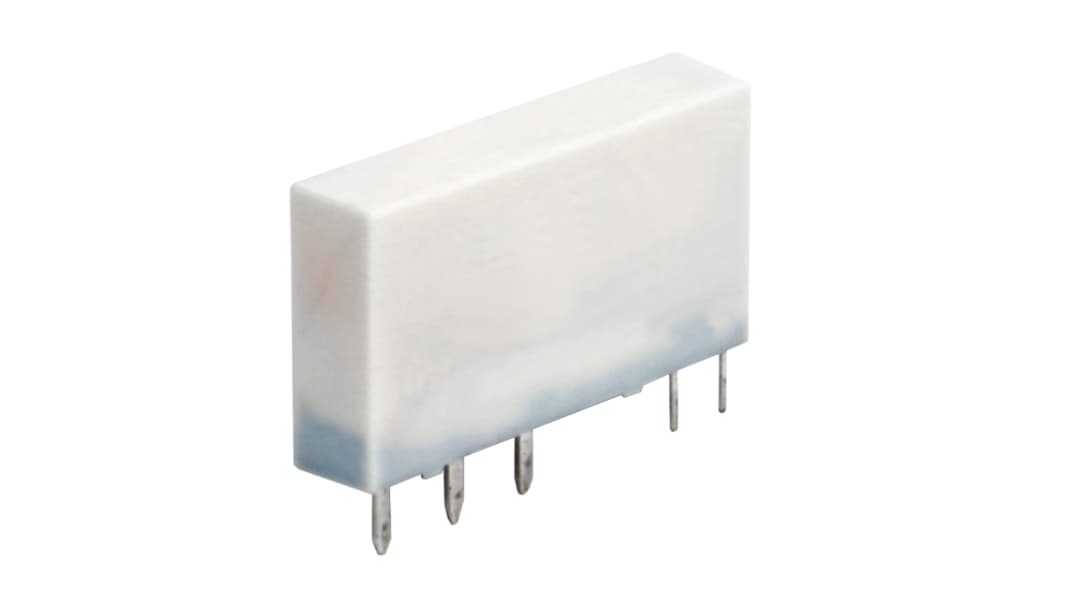

RS PRO 12V SPDT PCB Pin Interface Relay, 6A


An SPDT (Single Pole Double Throw) changeover relay with PCB Pins designed for use with the RS PRO range of interface relay sockets to enable quick installation without the need for soldering.;Ideal for use as a control device the general purpose PCB relay benefits from a high breakdown voltage of 4KV and a surge voltage of up to 6KV between coils and the contacts and features screw terminals for easy installation.;Constructed with Silver Tin Oxide contacts providing a low level of contact resistance with a high level of conductivity for excellent signal stability and strength.

Features and Benefits


12V Interface relay;SPDT changeover;Screw terminals;PCB pins;4KV breakdown voltage;6kV surge voltage;5g weight;Silver Tin contacts;27 x 19 x 5mm dimensions
