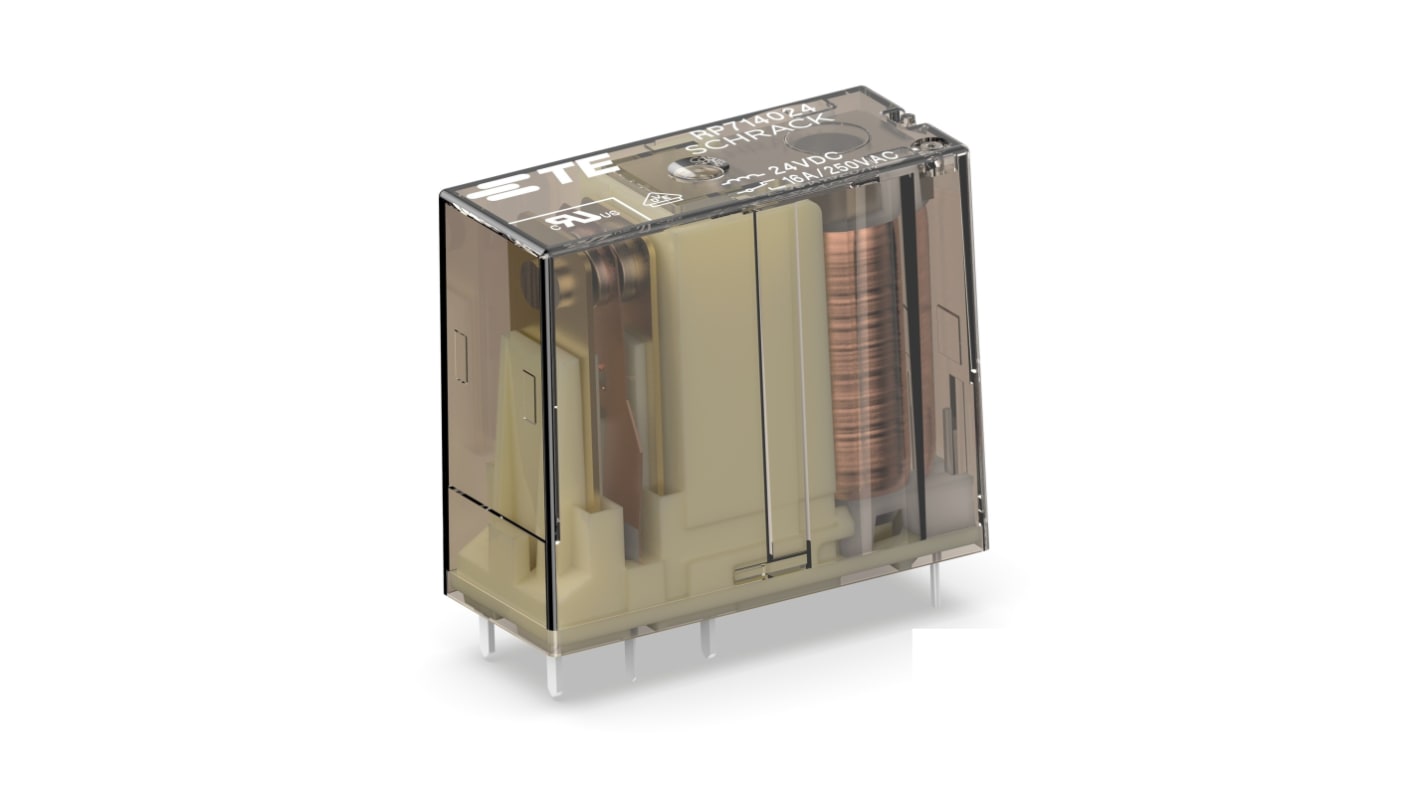

TE Connectivity PCB Mount Relay, 24V dc Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 279-8748
- Mfr. Part No.:
- 1415547-1 RP714024
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£12.77
(exc. VAT)
£15.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 314 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £12.77 |
| 10 + | £12.24 |
*price indicative
- RS Stock No.:
- 279-8748
- Mfr. Part No.:
- 1415547-1 RP714024
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 16A | |
| Number of Poles | 1 | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 400V | |
| Maximum Switching Voltage DC | 300V | |
| Length | 29mm | |
| Coil Resistance | 985 Ω | |
| Coil Power | 500mW | |
| Height | 25.5mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +70°C | |
| Contact Material | Silver Alloy | |
| Width | 12.6mm | |
| Dimensions | 29 x 25.5 x 12.6mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 16A | ||
Number of Poles 1 | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 400V | ||
Maximum Switching Voltage DC 300V | ||
Length 29mm | ||
Coil Resistance 985 Ω | ||
Coil Power 500mW | ||
Height 25.5mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +70°C | ||
Contact Material Silver Alloy | ||
Width 12.6mm | ||
Dimensions 29 x 25.5 x 12.6mm | ||
The TE Connectivity Power PCB Relay RPII/1 has 4kV and 8mm coil contact.
RoHS compliant
AgNi 90/10 contact material
AgNi 90/10 contact material
