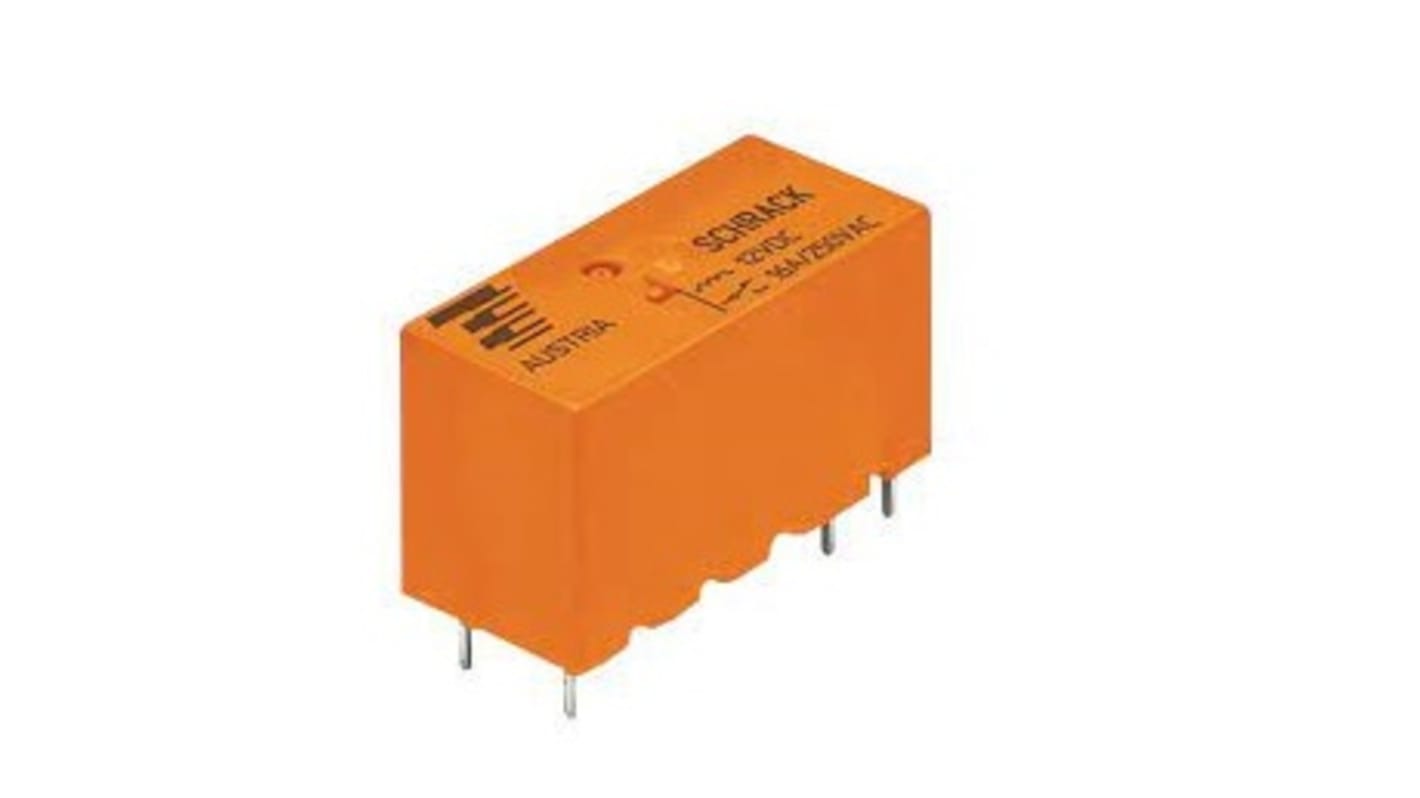

TE Connectivity PCB Mount Power Relay, 24V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 276-3908
- Mfr. Part No.:
- RZ03-1A3-D024 5-1415899-0
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 box of 20 units)*
£50.04
(exc. VAT)
£60.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,020 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 20 - 80 | £2.502 | £50.04 |
| 100 - 180 | £2.352 | £47.04 |
| 200 - 380 | £2.271 | £45.42 |
| 400 + | £2.156 | £43.12 |
*price indicative
- RS Stock No.:
- 276-3908
- Mfr. Part No.:
- RZ03-1A3-D024 5-1415899-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 16A | |
| Number of Poles | 1 | |
| Series | SCHRACK Power PCB Relay RZ | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 400V ac | |
| Length | 29mm | |
| Coil Resistance | 1.44 kΩ | |
| Coil Power | 400mW | |
| Depth | 12.7mm | |
| Height | 15.7mm | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | +85?°C | |
| Width | 12.7mm | |
| Dimensions | 29 x 12.7 x 15.7mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 16A | ||
Number of Poles 1 | ||
Series SCHRACK Power PCB Relay RZ | ||
Latching No | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 400V ac | ||
Length 29mm | ||
Coil Resistance 1.44 kΩ | ||
Coil Power 400mW | ||
Depth 12.7mm | ||
Height 15.7mm | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature +85?°C | ||
Width 12.7mm | ||
Dimensions 29 x 12.7 x 15.7mm | ||
The TE Connectivity Power PCB Relay RZ Series is suitable for a broad range of applications within the industrial, building automation and equipment and in appliance industries. The RZ series includes single-pole relays with normally open or changeover contacts as well as standard versions for 85°C ambient temperature and high temperature models for 105°C.
Global standard platform for 16 Amp applications
Designed to overcome micro welding
Designed to overcome micro welding
