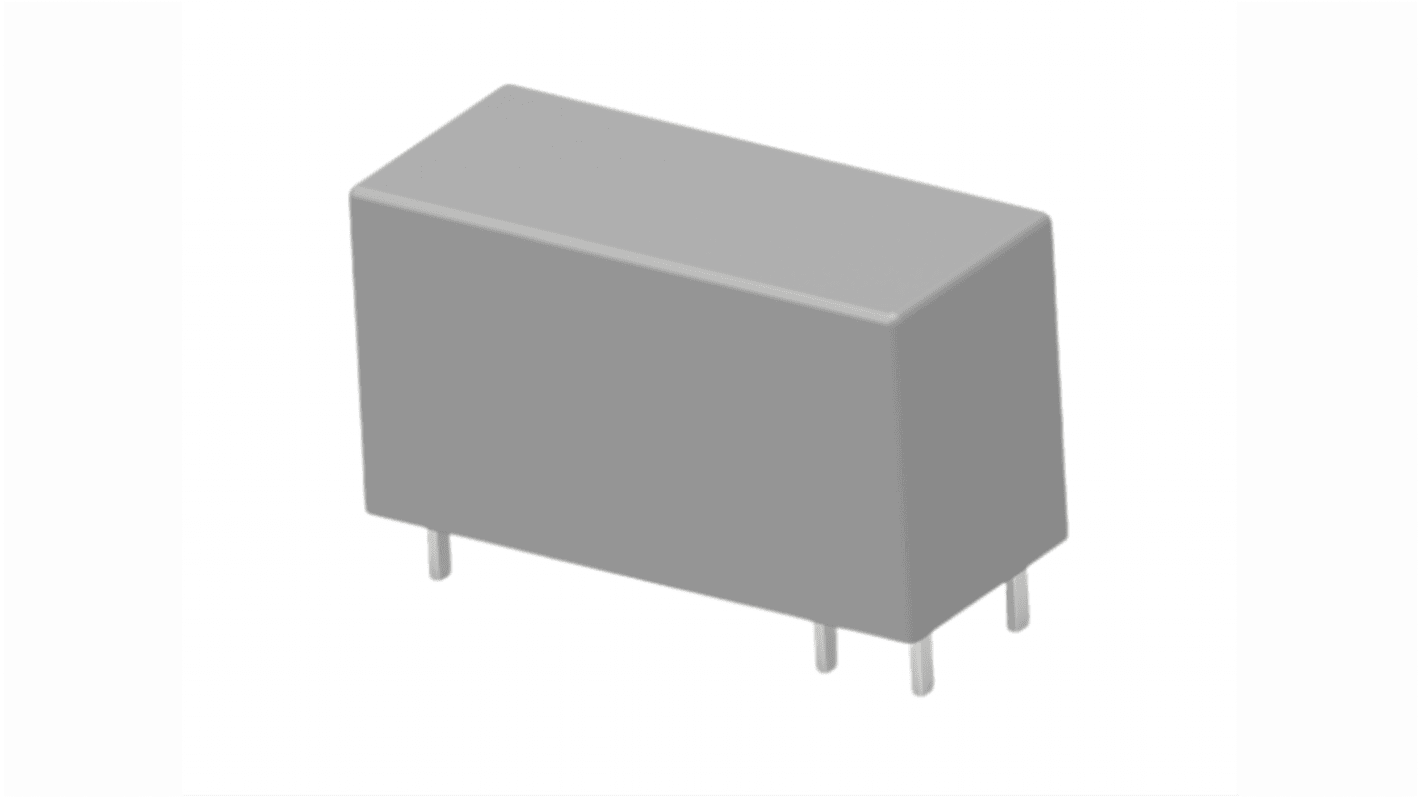

TE Connectivity PCB Mount Power Relay, 24V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 276-3905
- Mfr. Part No.:
- RTD3L024 4-1415538-9
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£4.54
(exc. VAT)
£5.45
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 137 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 9 | £4.54 |
| 10 + | £4.35 |
*price indicative
- RS Stock No.:
- 276-3905
- Mfr. Part No.:
- RTD3L024 4-1415538-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 16A | |
| Number of Poles | 1 | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 400V ac | |
| Length | 29mm | |
| Coil Resistance | 1.44 kΩ | |
| Coil Power | 400mW | |
| Height | 15.7mm | |
| Series | SCHRACK Power PCB Relay RT1 | |
| Contact Material | Silver Alloy | |
| Depth | 12.7mm | |
| Width | 12.7mm | |
| Dimensions | 29 x 12.7 x 15.7mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 16A | ||
Number of Poles 1 | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 400V ac | ||
Length 29mm | ||
Coil Resistance 1.44 kΩ | ||
Coil Power 400mW | ||
Height 15.7mm | ||
Series SCHRACK Power PCB Relay RT1 | ||
Contact Material Silver Alloy | ||
Depth 12.7mm | ||
Width 12.7mm | ||
Dimensions 29 x 12.7 x 15.7mm | ||
The TE Connectivity SCHRACK Power PCB Relay of RT1 series open or close a circuit by using an electromagnetic coil for seamless power flow.
Mono or bistable coil
Reinforced insulation
Reinforced insulation
