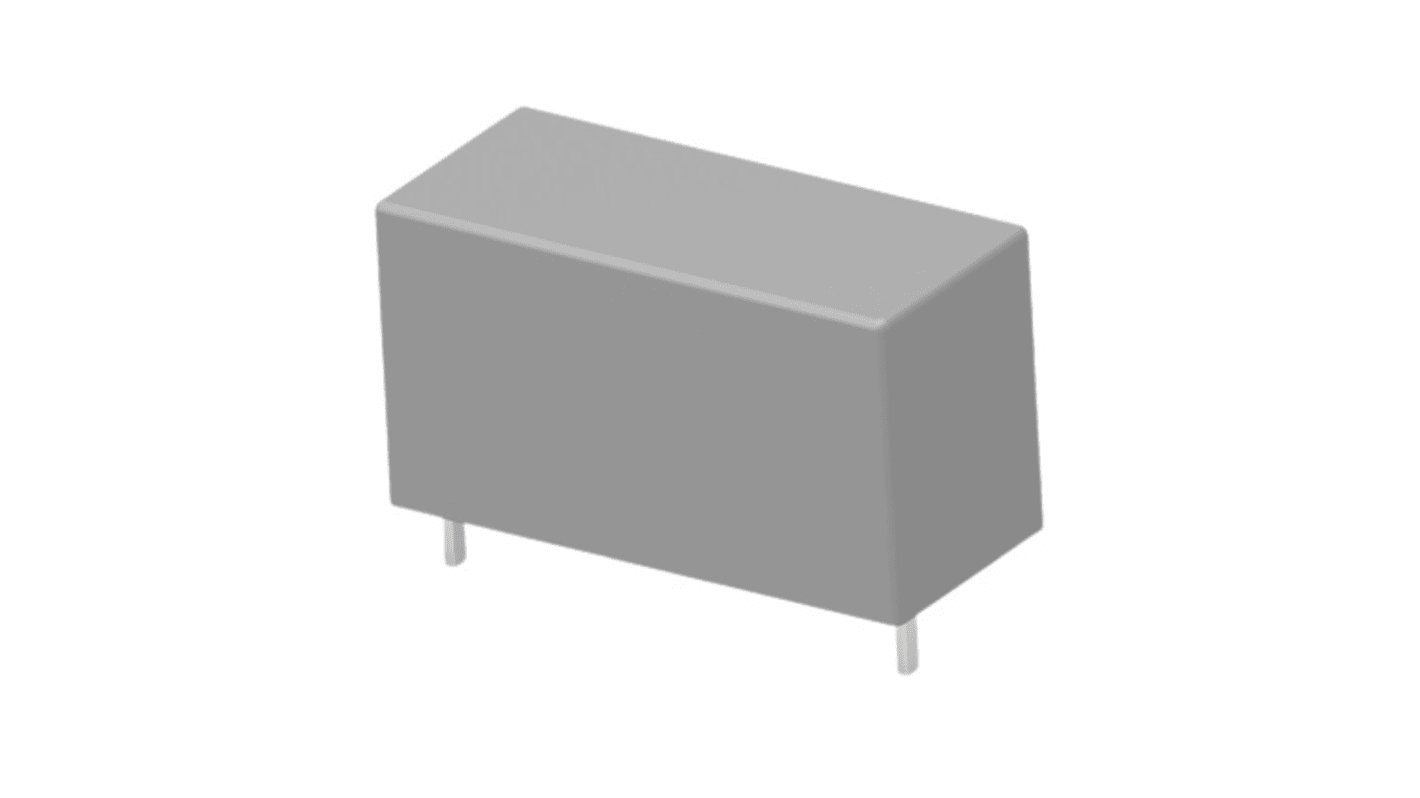

TE Connectivity PCB Power Relay, 24V dc Coil, 12A Switching Current, SPST
- RS Stock No.:
- 272-7732
- Mfr. Part No.:
- RT234024 6-1393239-6
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£3.00
(exc. VAT)
£3.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 665 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £3.00 |
| 10 + | £2.82 |
*price indicative
- RS Stock No.:
- 272-7732
- Mfr. Part No.:
- RT234024 6-1393239-6
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | RT | |
| Terminal Type | Plug-In | |
| Switching Current | 12A | |
| Switching AC Voltage | 400V ac | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 1.4kΩ | |
| Maximum Operating Temperature | 70°C | |
| Coil Power | 400mW | |
| Standards/Approvals | VDE, cULus, CQC, CCSAUS | |
| Width | 12.7mm | |
| Height | 15.7mm | |
| Length | 29mm | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Product Type Power Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series RT | ||
Terminal Type Plug-In | ||
Switching Current 12A | ||
Switching AC Voltage 400V ac | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 1.4kΩ | ||
Maximum Operating Temperature 70°C | ||
Coil Power 400mW | ||
Standards/Approvals VDE, cULus, CQC, CCSAUS | ||
Width 12.7mm | ||
Height 15.7mm | ||
Length 29mm | ||
Contact Material Silver Nickel Alloy | ||
The TE Connectivity Power relay is a standard type power relay. This power relay supports Mono stable, DC coil magnetic system with 400 mW DC coil power rating.
RoHS compliant
REACH compliant
UL coil insulation class F
1440 ohms coil resistance
