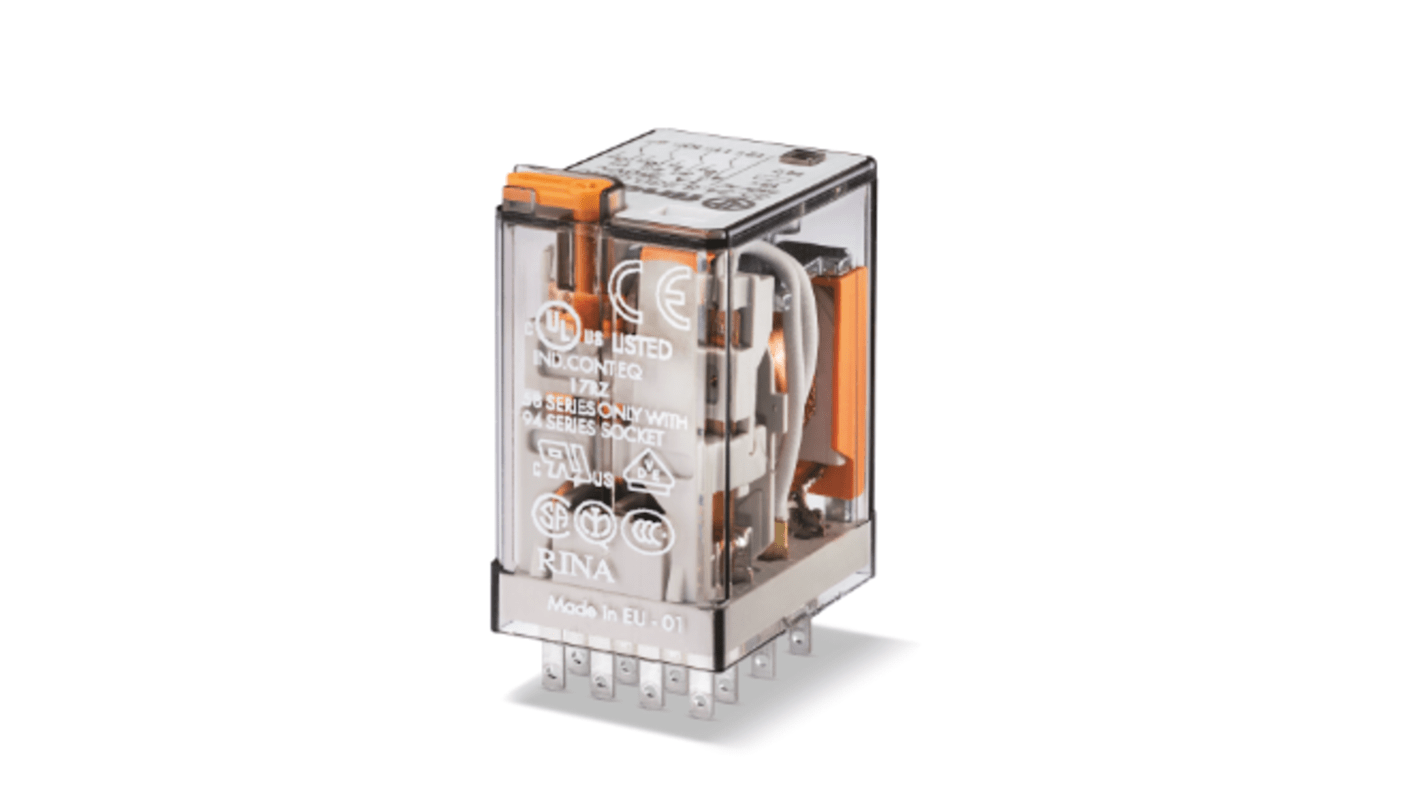

Finder Plug In Relay, 125V dc Coil, 7A Switching Current, 4PDT
- RS Stock No.:
- 257-7394
- Mfr. Part No.:
- 553491250094
- Brand:
- Finder
Subtotal (1 unit)*
£16.74
(exc. VAT)
£20.09
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 24 unit(s) ready to ship
- Plus 20 unit(s) shipping from 05 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £16.74 |
*price indicative
- RS Stock No.:
- 257-7394
- Mfr. Part No.:
- 553491250094
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 125V dc | |
Contact Configuration | 4PDT | |
Mounting Type | Plug In | |
Switching Current | 7A | |
Number of Poles | 4 | |
Latching | No | |
Series | 55 | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 250V ac | |
Maximum Switching Voltage DC | 220V dc | |
Maximum Switching Current AC | 15 A | |
Coil Power | 1.5W | |
Maximum Operating Temperature | +85°C | |
Minimum Operating Temperature | -40°C | |
Standards Met | cURus, EAC | |
Life | 150000 Cycles | |
Contact Material | Silver Alloy | |
Isolation Coil To Contact | 4kV | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 125V dc | ||
Contact Configuration 4PDT | ||
Mounting Type Plug In | ||
Switching Current 7A | ||
Number of Poles 4 | ||
Latching No | ||
Series 55 | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Current AC 15 A | ||
Coil Power 1.5W | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Standards Met cURus, EAC | ||
Life 150000 Cycles | ||
Contact Material Silver Alloy | ||
Isolation Coil To Contact 4kV | ||
Number of Coils Single | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
Finder Series 55 Relay, 125V DC Coil Voltage, 4PDT Contact Configuration - 553491250094
This relay is a versatile 4PDT general-purpose device designed for a wide range of applications. It operates at a coil voltage of 125V DC and supports switching currents of up to 7A, effectively managing electric power in various industrial environments. The plug-in relay features a compact design suitable for printed circuit board mounting and offers reliability across challenging conditions.
Features & Benefits
• Operates within a wide temperature range of -40°C to +85°C
• Capable of handling high voltage switching of up to 250V AC
• Provides an isolation of 4kV between coil and contacts
• Features a life expectancy of up to 150,000 cycles
• Ensures efficient control for automation applications with 1.5VA coil power consumption
• Utilises AgNi contact material for enhanced durability and performance
• Capable of handling high voltage switching of up to 250V AC
• Provides an isolation of 4kV between coil and contacts
• Features a life expectancy of up to 150,000 cycles
• Ensures efficient control for automation applications with 1.5VA coil power consumption
• Utilises AgNi contact material for enhanced durability and performance
Applications
• Ideal for automation systems in blinds and shutters
• Used in road and tunnel lighting management
• Suitable for hoists, cranes, and circuit breakers
• Applied in control panels for electrical distribution
• Used in road and tunnel lighting management
• Suitable for hoists, cranes, and circuit breakers
• Applied in control panels for electrical distribution
What makes this relay suitable for use in high voltage applications?
The design supports voltages of up to 250V AC and can handle significant switching currents, ensuring safe operation in high voltage environments. Its dielectric strength further enhances performance, providing reliable isolation under varying conditions.
Can this relay be used in automation for shutters and grilles?
Yes, it is specifically designed for automation applications, enabling efficient control of blinds, grilles, and similar systems, enhancing functionality through reliable switching.
How does the contact configuration affect its performance?
The 4PDT contact configuration allows for flexible control options, enabling users to manage multiple circuits effectively while maintaining high reliability in demanding applications.
