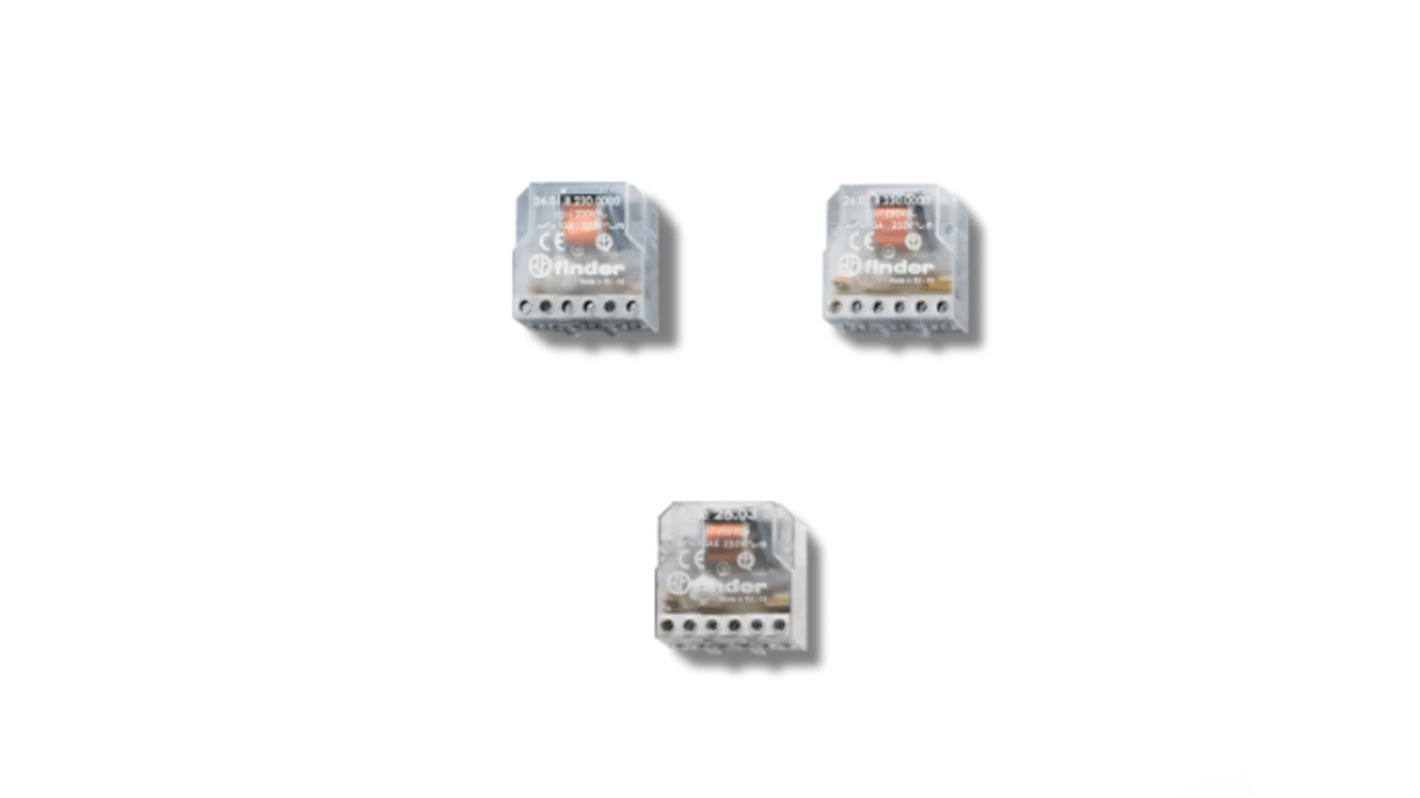

Finder Panel Modular Step Relay, 12V ac Coil, 10A Switching Current, DPST
- RS Stock No.:
- 257-7352
- Mfr. Part No.:
- 260880120000
- Brand:
- Finder
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 257-7352
- Mfr. Part No.:
- 260880120000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 12V ac | |
| Product Type | Modular Step Relay | |
| Contact Configuration | DPST | |
| Mount Type | Panel | |
| Series | 26 | |
| Switching Current | 10A | |
| Switching AC Voltage | 250V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 98.5mm | |
| Height | 12.5mm | |
| Width | 31.5mm | |
| Standards/Approvals | RoHS, ANSI/ESD S20.20:2021 | |
| Contact Material | Silver Nickel Alloy | |
| Contact Resistance | 17Ω | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 12V ac | ||
Product Type Modular Step Relay | ||
Contact Configuration DPST | ||
Mount Type Panel | ||
Series 26 | ||
Switching Current 10A | ||
Switching AC Voltage 250V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Length 98.5mm | ||
Height 12.5mm | ||
Width 31.5mm | ||
Standards/Approvals RoHS, ANSI/ESD S20.20:2021 | ||
Contact Material Silver Nickel Alloy | ||
Contact Resistance 17Ω | ||
RoHS Status: Exempt
The Finder electromechanical step relay with electrically separate coil and contact circuits has choice of 6 switching sequences and screw terminal connections.
AC coil
Panel mount
Cadmium free contact material
