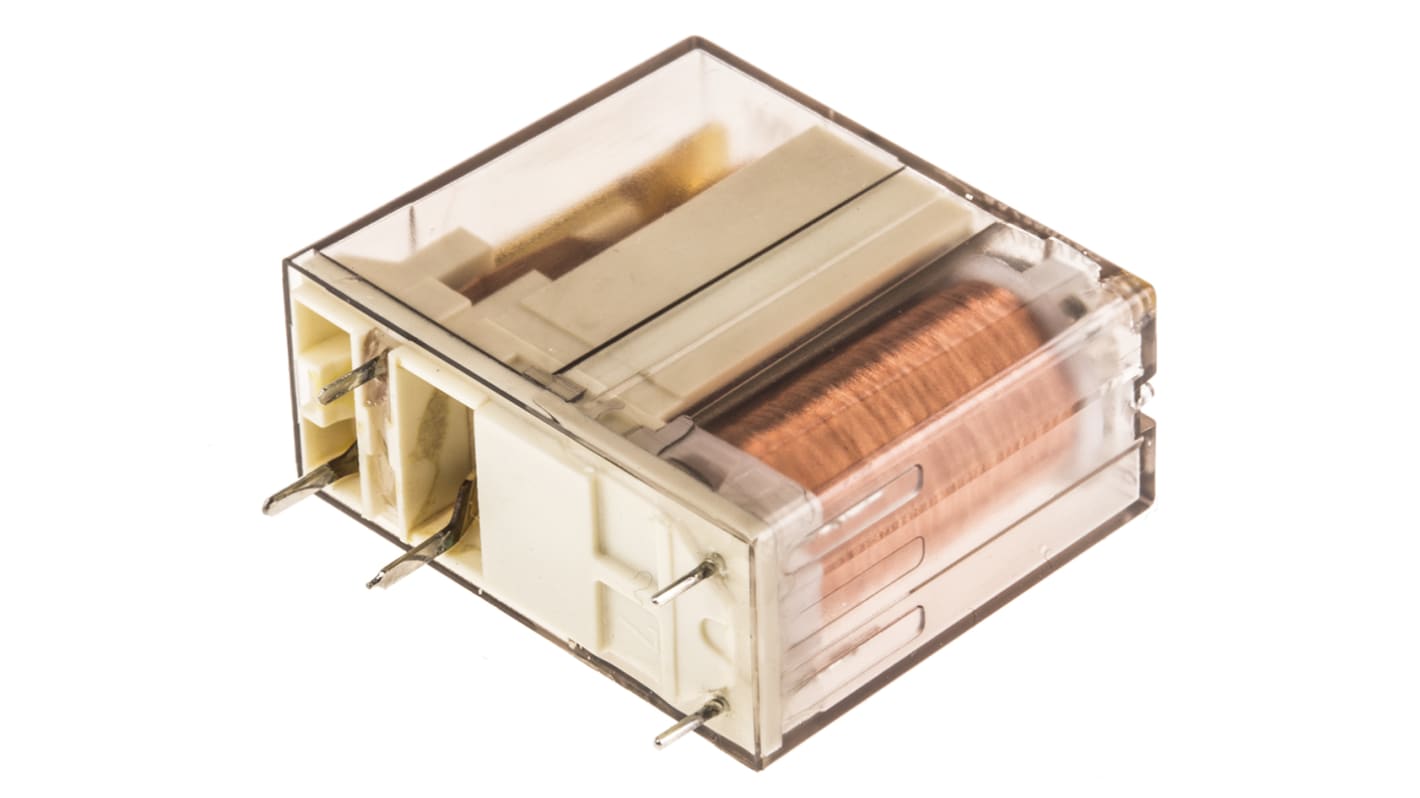

TE Connectivity PCB Power Relay, 12V dc Coil, 12A Switching Current, SPDT
- RS Stock No.:
- 256-3430
- Distrelec Article No.:
- 137-21-231
- Mfr. Part No.:
- RP412012
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£14.36
(exc. VAT)
£17.23
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 500 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 127 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £14.36 |
*price indicative
- RS Stock No.:
- 256-3430
- Distrelec Article No.:
- 137-21-231
- Mfr. Part No.:
- RP412012
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 12V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Series | RPII | |
| Terminal Type | Solder | |
| Switching Current | 12A | |
| Switching AC Voltage | 400V ac | |
| Switching Power | 3kVA | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 270Ω | |
| Maximum Operating Temperature | 70°C | |
| Width | 12.6mm | |
| Length | 29mm | |
| Standards/Approvals | RoHS | |
| Coil Power | 500mW | |
| Height | 25.5mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Product Type Power Relay | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Series RPII | ||
Terminal Type Solder | ||
Switching Current 12A | ||
Switching AC Voltage 400V ac | ||
Switching Power 3kVA | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 270Ω | ||
Maximum Operating Temperature 70°C | ||
Width 12.6mm | ||
Length 29mm | ||
Standards/Approvals RoHS | ||
Coil Power 500mW | ||
Height 25.5mm | ||
Contact Material Silver Alloy | ||
TE Connectivity RPII Series PCB Power Relay
RPII series PCB power relays with 500mW coil power available with SPST, SPDT and DPDT contact configurations. Part numbers RP3-XXXX and RP4-XXXX are flux proof. Part numbers RP7-XXXX and RP8-XXXX are wash tight.
Coil power: 500 mW
Operating temperature range: -40 to +70°C
Switching voltage: 250Vac
Creepage and clearance: 8mm
Applications: Power supply, domestic equipment, heating control, etc
Approvals
UL, CSA, VDE
