Omron Surface Power Relay, 24V dc Coil, 1A Switching Current, DPDT

View all Power Relays

Subtotal (1 unit)*

£4.48

(exc. VAT)

£5.38

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 31 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£4.48

*price indicative

Packaging Options:
RS Stock No.:
254-3148
Mfr. Part No.:
G6K-2F-TR DC24
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

24V dc

Product Type

Power Relay

Contact Configuration

DPDT

Mount Type

Surface

Series

G6K

Terminal Type

Solder

Switching Current

1A

Switching DC Voltage

60V dc

Switching AC Voltage

125V ac

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

70°C

Coil Resistance

5.2kΩ

Coil Power

100mW

Standards/Approvals

CSA, RoHS

Length

10mm

Width

6.5mm

Height

5.2mm

Contact Material

Gold Plated

Contact Resistance

100mΩ

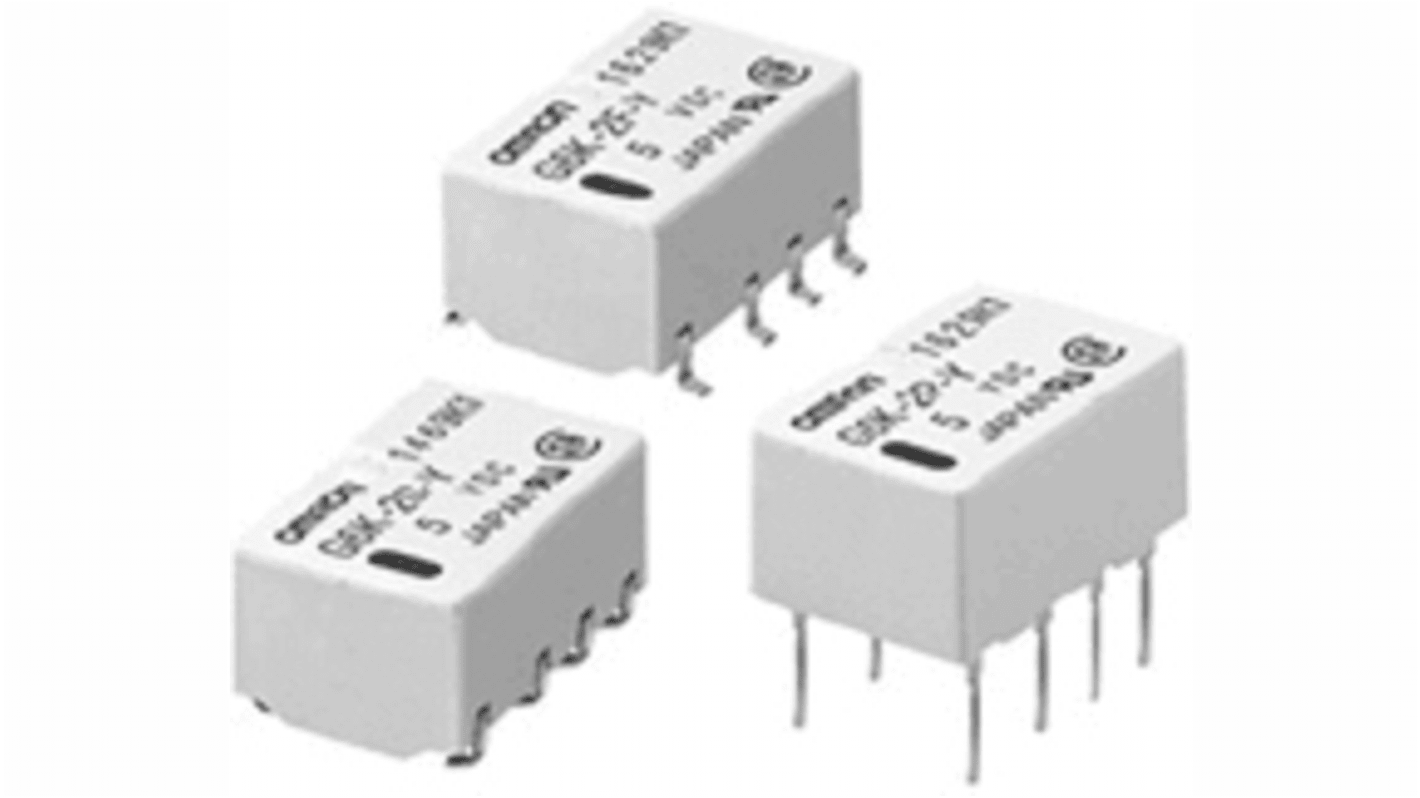

The Omron G6K-2F-TR 24DC is surface mounting relay wIth the world’s smallest mounting area. Surface mounting terminal models incorporate a unique terminal structure wIth high infrared irradiation efficiency which allows the terminal temperature to rise ea

Sub miniature model as small as 5.2 (H) x 6.5 (W) x 10 (L) mm is ideal for high-density mounting (G6K(U)-2F(-Y))

Low profile of 5.2 mm improves mounting efficiency (G6K(U)-2F(-Y))

Light weight of 0.7 g contributes to higher speed mounting

Standard model conforms to UL/CSA standards, certified by BSI (EN62368-1)

Models available with a 2.54-mm terminal pitch

Rated carry current 2A
