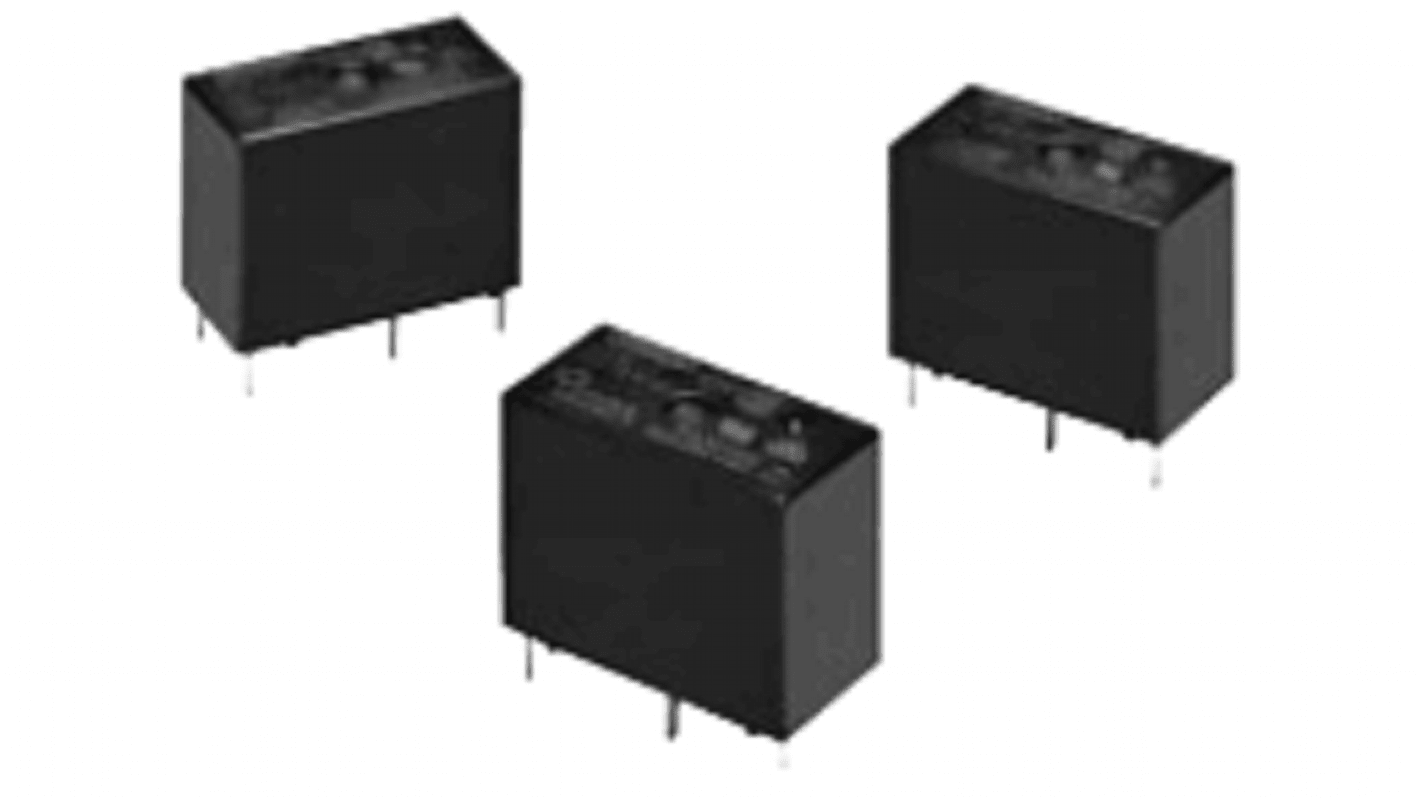

Omron PCB Power Relay, 12V dc Coil, 10A Switching Current, SPDT

View all Power Relays
Bulk discount available

Subtotal (1 pack of 2 units)*

£3.06

(exc. VAT)

£3.68

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
Per Pack*
2 - 8£1.53£3.06
10 - 48£1.475£2.95
50 - 98£1.455£2.91
100 - 248£1.40£2.80
250 +£1.335£2.67

*price indicative

RS Stock No.:
254-3136
Mfr. Part No.:
G5Q-1-HA DC12 (TY)
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Product Type

Power Relay

Coil Voltage

12V dc

Contact Configuration

SPDT

Mount Type

PCB

Series

G5Q

Terminal Type

PCB Pin

Switching Current

10A

Switching DC Voltage

30V dc

Minimum Operating Temperature

-40°C

Coil Resistance

2.9kΩ

Maximum Operating Temperature

105°C

Coil Power

400mW

Length

20.3mm

Height

15.8mm

Width

10.3mm

Standards/Approvals

CSA certified, EN/IEC, UL Recognised, VDE

Contact Material

Silver Alloy

Contact Resistance

100mΩ

COO (Country of Origin):
CN
The Omron power relay is a miniature power relay wIth 1-pole 10A switching capacIty. It is excellent switching performance for a variety of loads.

Excellent switching performance for a variety of loads

Small, yet provides 8-kV impulse withstand voltage (between coil and contacts)

Low coil power consumption (SPST-NO 200 mW, SPDT 400 mW)

Coil insulation system Class F (UL1446)

IEC/EN 60335-1 conformed. (-HA Model)

Reduced power consumption with voltage holding and pulse width modulation (PWM) control (only for G5Q-@-PW model)
