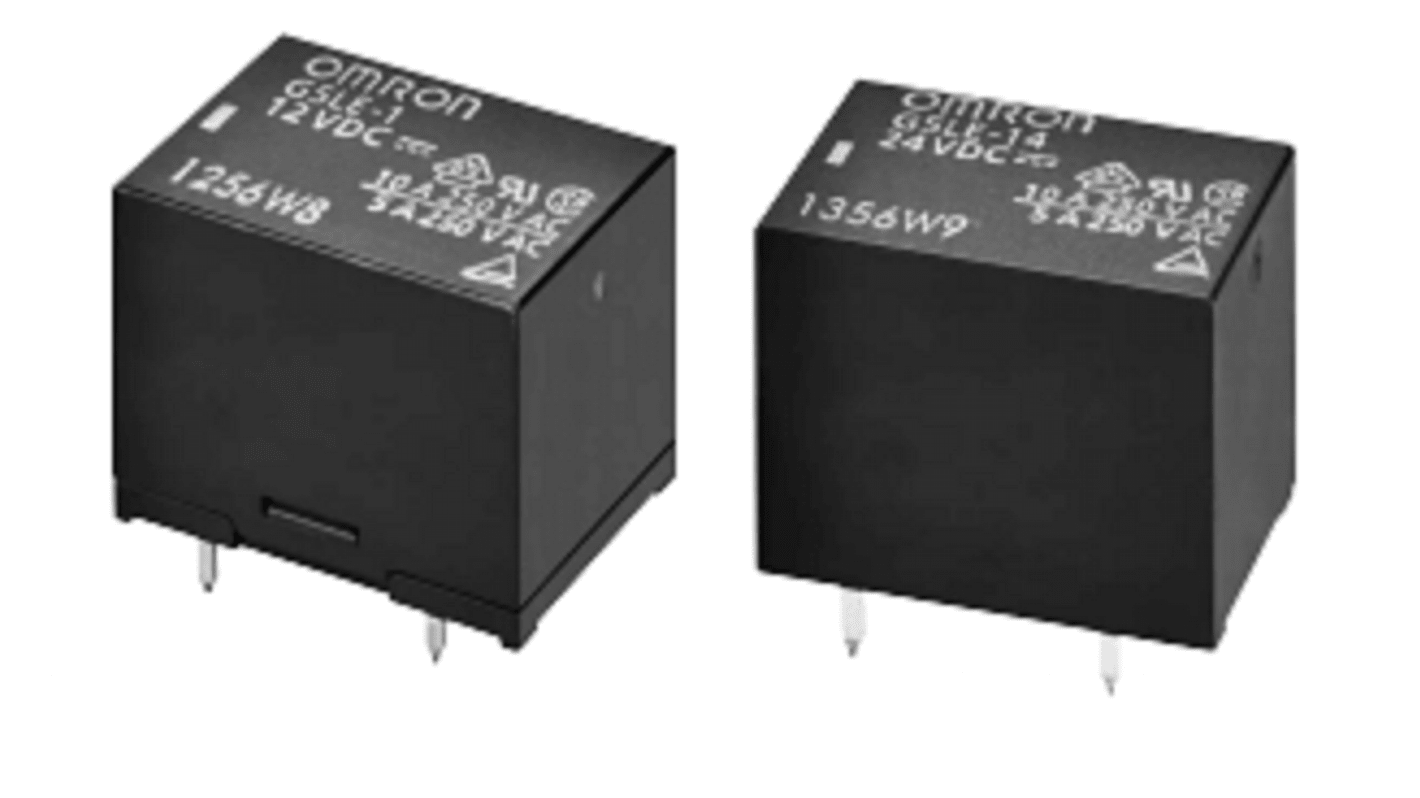

Omron PCB Power Relay, 48V Coil, 10A Switching Current, 1 NO
- RS Stock No.:
- 254-3126
- Mfr. Part No.:
- G5LE-14 DC48
- Brand:
- Omron
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£1.30
(exc. VAT)
£1.56
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 119 unit(s) shipping from 10 August 2026
- Plus 226 unit(s) shipping from 23 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £1.30 |
| 10 - 49 | £1.26 |
| 50 - 99 | £1.24 |
| 100 - 249 | £1.19 |
| 250 + | £1.14 |
*price indicative
- RS Stock No.:
- 254-3126
- Mfr. Part No.:
- G5LE-14 DC48
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Power Relay | |
| Coil Voltage | 48V | |
| Contact Configuration | 1 NO | |
| Mount Type | PCB | |
| Series | G5LE | |
| Terminal Type | PCB Pin | |
| Switching Current | 10A | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 1.4kΩ | |
| Standards/Approvals | CSA, EN, UL | |
| Height | 22.5mm | |
| Coil Power | 400mW | |
| Length | 22.5mm | |
| Width | 16.5mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Power Relay | ||
Coil Voltage 48V | ||
Contact Configuration 1 NO | ||
Mount Type PCB | ||
Series G5LE | ||
Terminal Type PCB Pin | ||
Switching Current 10A | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 30V dc | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 1.4kΩ | ||
Standards/Approvals CSA, EN, UL | ||
Height 22.5mm | ||
Coil Power 400mW | ||
Length 22.5mm | ||
Width 16.5mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- MY
The Omron power relay is cubic, single-pole 10A power relay. Ideal for a wide variety of applications such as home appliances, OA equipment's, vending machines, etc.
Ambient operating temperature 85°C
UL class-B coil insulation for standard model
UL, CSA, EN standards approved and conforms to electrical
Appliance and material safety law (300 V maximum)
