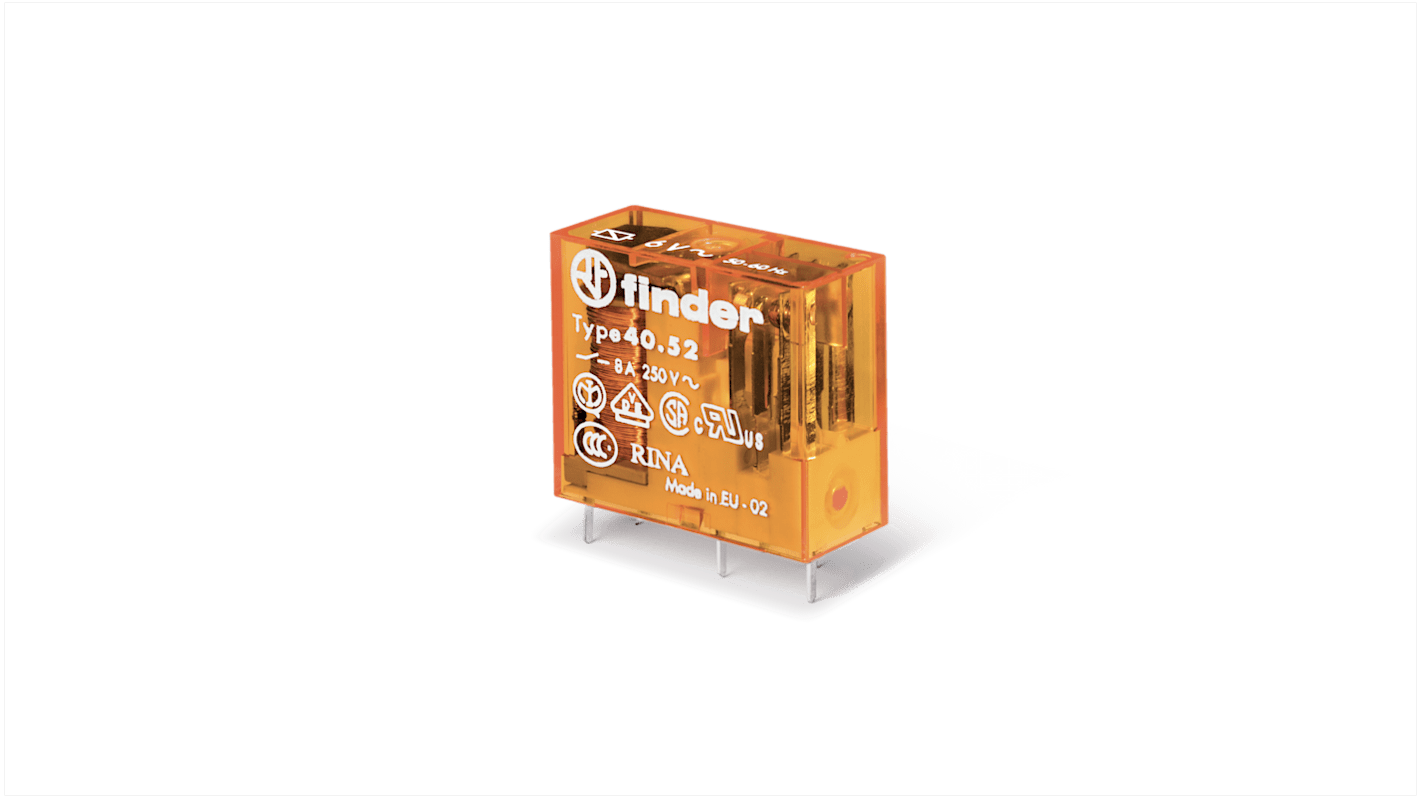

Finder PCB Relay, 230V ac Coil, 8A Switching Current, 2 CO
- RS Stock No.:
- 249-4434
- Mfr. Part No.:
- 40.52.8.230.4000
- Brand:
- Finder
Subtotal (1 unit)*
£13.07
(exc. VAT)
£15.68
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 223 unit(s) ready to ship
- Plus 17 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £13.07 |
*price indicative
- RS Stock No.:
- 249-4434
- Mfr. Part No.:
- 40.52.8.230.4000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 230V ac | |
| Product Type | Relay | |
| Contact Configuration | 2 CO | |
| Mount Type | PCB | |
| Series | 40 | |
| Terminal Type | PCB Pin | |
| Switching Current | 8A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 28kΩ | |
| Width | 12.4mm | |
| Height | 30.3mm | |
| Coil Power | 1.2VA | |
| Length | 29mm | |
| Standards/Approvals | EAC, CSA | |
| Contact Material | Silver Tin Oxide | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 230V ac | ||
Product Type Relay | ||
Contact Configuration 2 CO | ||
Mount Type PCB | ||
Series 40 | ||
Terminal Type PCB Pin | ||
Switching Current 8A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 28kΩ | ||
Width 12.4mm | ||
Height 30.3mm | ||
Coil Power 1.2VA | ||
Length 29mm | ||
Standards/Approvals EAC, CSA | ||
Contact Material Silver Tin Oxide | ||
- COO (Country of Origin):
- IT
Finder Series 40 Relay, 230V AC Coil Voltage, 8A Switching Current - 40.52.8.230.4000
This relay is a high-performance device suitable for PCB mounting, designed to operate at a coil voltage of 230V AC. The relay boasts a dual-pole, dual-throw (DPDT) configuration with a maximum switching voltage of 400V AC, making it ideal for a range of electrical applications, including automation and control systems.
Features & Benefits
• Supports an 8A switching current for efficient operation
• Maximum switching capacity reaches 15A for AC requirements
• AgNi contact material enhances performance and durability
• Operates reliably within temperatures from -40 to +85°C
• Offers a mechanical lifespan of up to 100,000 cycles
• Designed with PCB mounting for straightforward integration
Applications
• Used for control panels for medical and dental equipment
• Suitable for automation systems for blinds and shutters
• Ideal for vending machines and electronic circuit boards
• Recommended for door and gate openers
What are the insulation specifications for this relay?
The relay features reinforced insulation, ensuring safe operation with 6kV dielectric strength between the coil and contacts. This ensures effective isolation, providing reliable performance in various applications.
How does this relay handle environmental factors?
Designed for challenging environments, it operates within a temperature range of -40 to +85°C and offers RT II flux protection to prevent damage from moisture and contamination.
What is the significance of the AgNi contact material in this relay?
AgNi contact material contributes to better conductivity and wear resistance, ensuring the relay performs effectively across its considerable mechanical lifespan while minimising the likelihood of contact welding.
