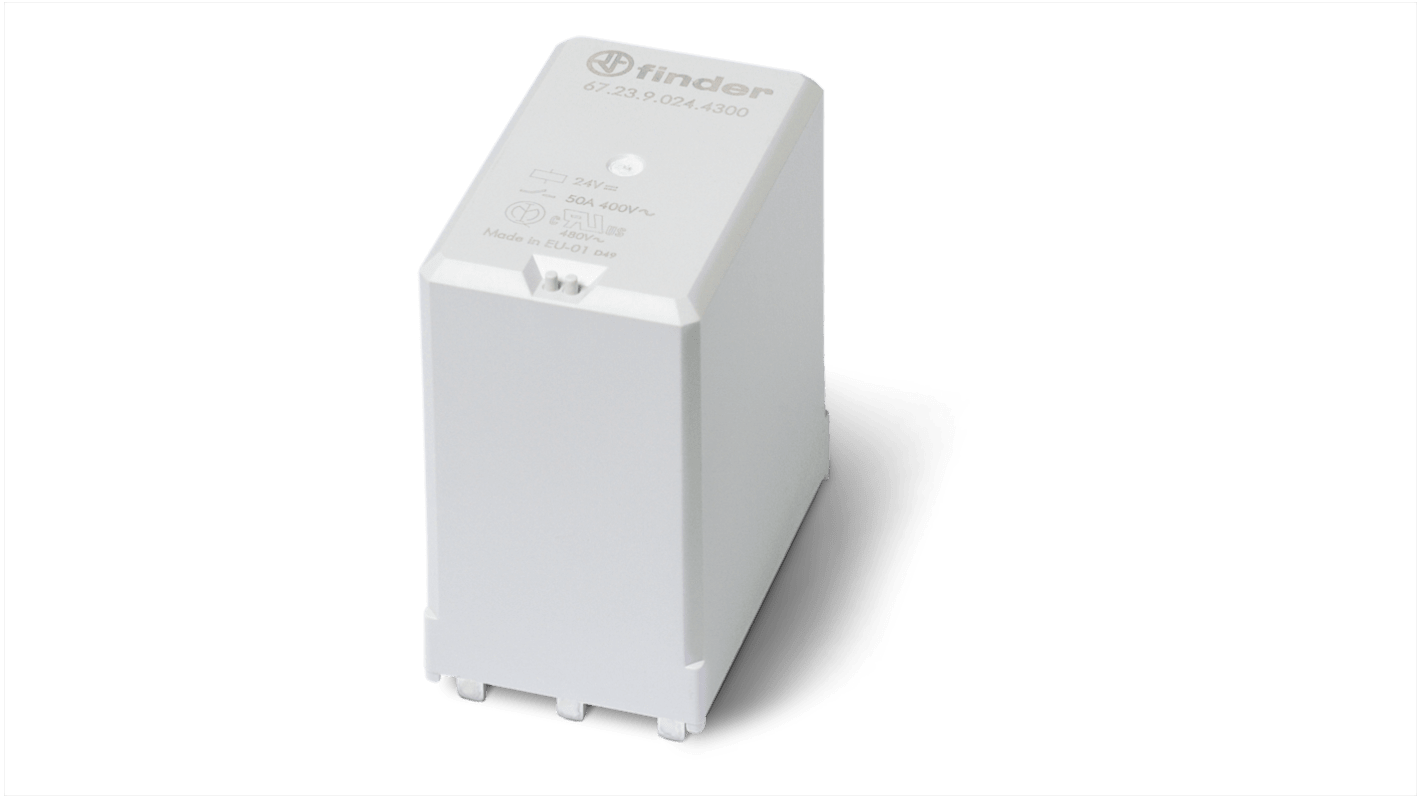

Finder PCB Power Relay Module, 24V dc Coil, 50A Switching Current, 3 NO
- RS Stock No.:
- 248-2685
- Mfr. Part No.:
- 672390244300S
- Brand:
- Finder
Subtotal (1 pack of 10 units)*
£429.06
(exc. VAT)
£514.87
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £42.906 | £429.06 |
*price indicative
- RS Stock No.:
- 248-2685
- Mfr. Part No.:
- 672390244300S
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 24V dc | |
| Product Type | Power Relay Module | |
| Contact Configuration | 3 NO | |
| Mount Type | PCB | |
| Series | 67 | |
| Terminal Type | Screw | |
| Switching Current | 50A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 400V ac | |
| Coil Resistance | 340Ω | |
| Maximum Operating Temperature | 70°C | |
| Length | 51.5mm | |
| Width | 33mm | |
| Standards/Approvals | EAC, ENEC | |
| Coil Power | 1.7W | |
| Height | 62mm | |
| Contact Material | Silver Tin Oxide | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 24V dc | ||
Product Type Power Relay Module | ||
Contact Configuration 3 NO | ||
Mount Type PCB | ||
Series 67 | ||
Terminal Type Screw | ||
Switching Current 50A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 400V ac | ||
Coil Resistance 340Ω | ||
Maximum Operating Temperature 70°C | ||
Length 51.5mm | ||
Width 33mm | ||
Standards/Approvals EAC, ENEC | ||
Coil Power 1.7W | ||
Height 62mm | ||
Contact Material Silver Tin Oxide | ||
The Finder's make this 67 series of power relay which are developed for solar applications. This device has single PCB terminals and 1.5 mm gap between PCB and relay base. This relay is a DC coil version and works on 24 Vdc coil voltage.
This is a standard version relay
It has standard AgSnO2
