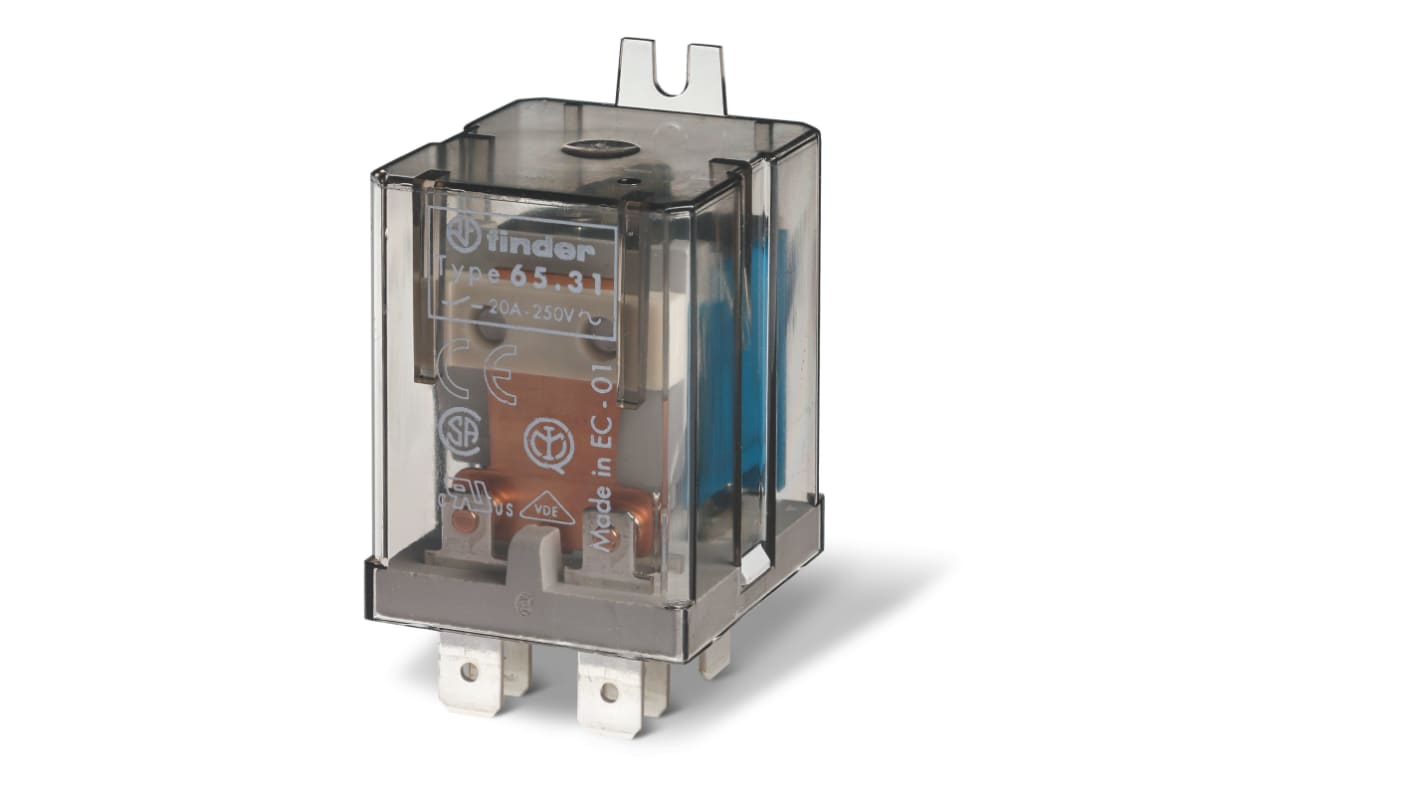

Finder Flange Relay, 48V dc Coil, 20A Switching Current, SPST
- RS Stock No.:
- 248-2625
- Mfr. Part No.:
- 653190480000
- Brand:
- Finder
Subtotal (1 pack of 10 units)*
£168.02
(exc. VAT)
£201.62
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £16.802 | £168.02 |
*price indicative
- RS Stock No.:
- 248-2625
- Mfr. Part No.:
- 653190480000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Product Type | Relay | |
| Coil Voltage | 48V dc | |
| Contact Configuration | SPST | |
| Mount Type | Flange | |
| Series | 65 | |
| Terminal Type | Screw | |
| Switching Current | 20A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 75°C | |
| Coil Resistance | 1.8kΩ | |
| Height | 52mm | |
| Length | 36.5mm | |
| Coil Power | 1.3W | |
| Width | 32.2mm | |
| Standards/Approvals | CSA, EAC | |
| Contact Material | Silver Alloy Gold Plated | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Product Type Relay | ||
Coil Voltage 48V dc | ||
Contact Configuration SPST | ||
Mount Type Flange | ||
Series 65 | ||
Terminal Type Screw | ||
Switching Current 20A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 75°C | ||
Coil Resistance 1.8kΩ | ||
Height 52mm | ||
Length 36.5mm | ||
Coil Power 1.3W | ||
Width 32.2mm | ||
Standards/Approvals CSA, EAC | ||
Contact Material Silver Alloy Gold Plated | ||
- COO (Country of Origin):
- IT
The Finder's 65 series is flange mount power relays provides support to faston 250 connections and can be used in infrared and microwave ovens, industrial washing machines jacuzzis and hot tubs like applications.
1 NO + 1 NC (SPST-NO + SPST-NC)
Faston 250 (6.3 x 0.8 mm) connection
Flange mount
Standard AgCdO contact material
48V dc voltage supply
