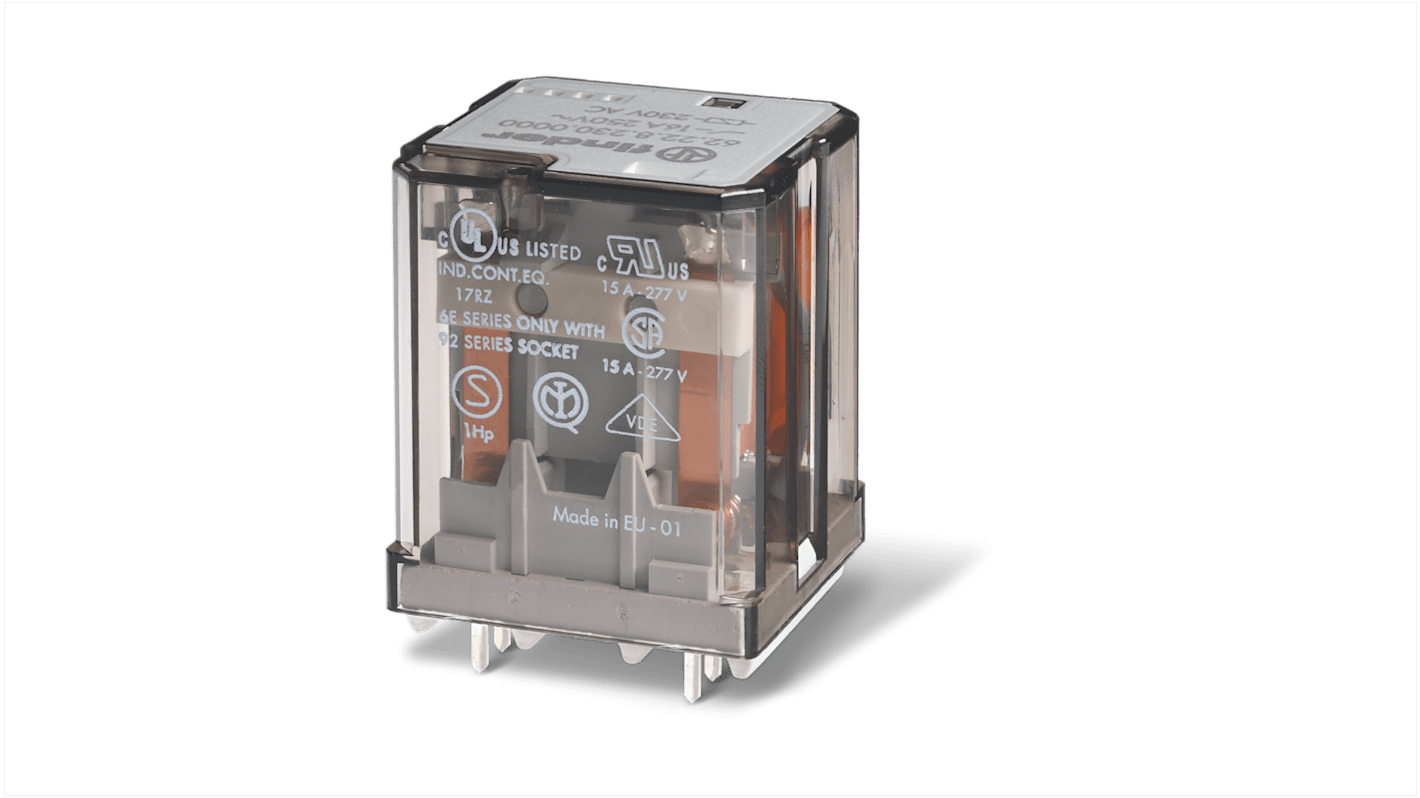

Finder PCB Power Relay Module, 12V dc Coil, 16A Switching Current, 2 CO
- RS Stock No.:
- 248-2489
- Mfr. Part No.:
- 622290120040
- Brand:
- Finder
Subtotal (1 pack of 10 units)*
£168.66
(exc. VAT)
£202.39
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £16.866 | £168.66 |
*price indicative
- RS Stock No.:
- 248-2489
- Mfr. Part No.:
- 622290120040
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 12V dc | |
| Product Type | Power Relay Module | |
| Contact Configuration | 2 CO | |
| Mount Type | PCB | |
| Series | 62 | |
| Terminal Type | Screw | |
| Switching Current | 16A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Coil Resistance | 110Ω | |
| Maximum Operating Temperature | 70°C | |
| Coil Power | 1.3W | |
| Length | 38.2mm | |
| Height | 53.1mm | |
| Standards/Approvals | CSA, EAC | |
| Width | 35.8mm | |
| Contact Material | Silver Alloy Gold Plated | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 12V dc | ||
Product Type Power Relay Module | ||
Contact Configuration 2 CO | ||
Mount Type PCB | ||
Series 62 | ||
Terminal Type Screw | ||
Switching Current 16A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Coil Resistance 110Ω | ||
Maximum Operating Temperature 70°C | ||
Coil Power 1.3W | ||
Length 38.2mm | ||
Height 53.1mm | ||
Standards/Approvals CSA, EAC | ||
Width 35.8mm | ||
Contact Material Silver Alloy Gold Plated | ||
The Finder's PCB mount power relay from 62 series are used in applications like road or tunnel lighting, industrial furnaces, burners, boilers, ovens, circuit breakers, control and management of electric power etc. This relay has 2 (CO) poles, while the coil voltage is 12 Vdc. This relay is rated for 250 Vac.
Additonal features like lockable test button and mechanical indicator
It comes with standard AgCdO contacts
