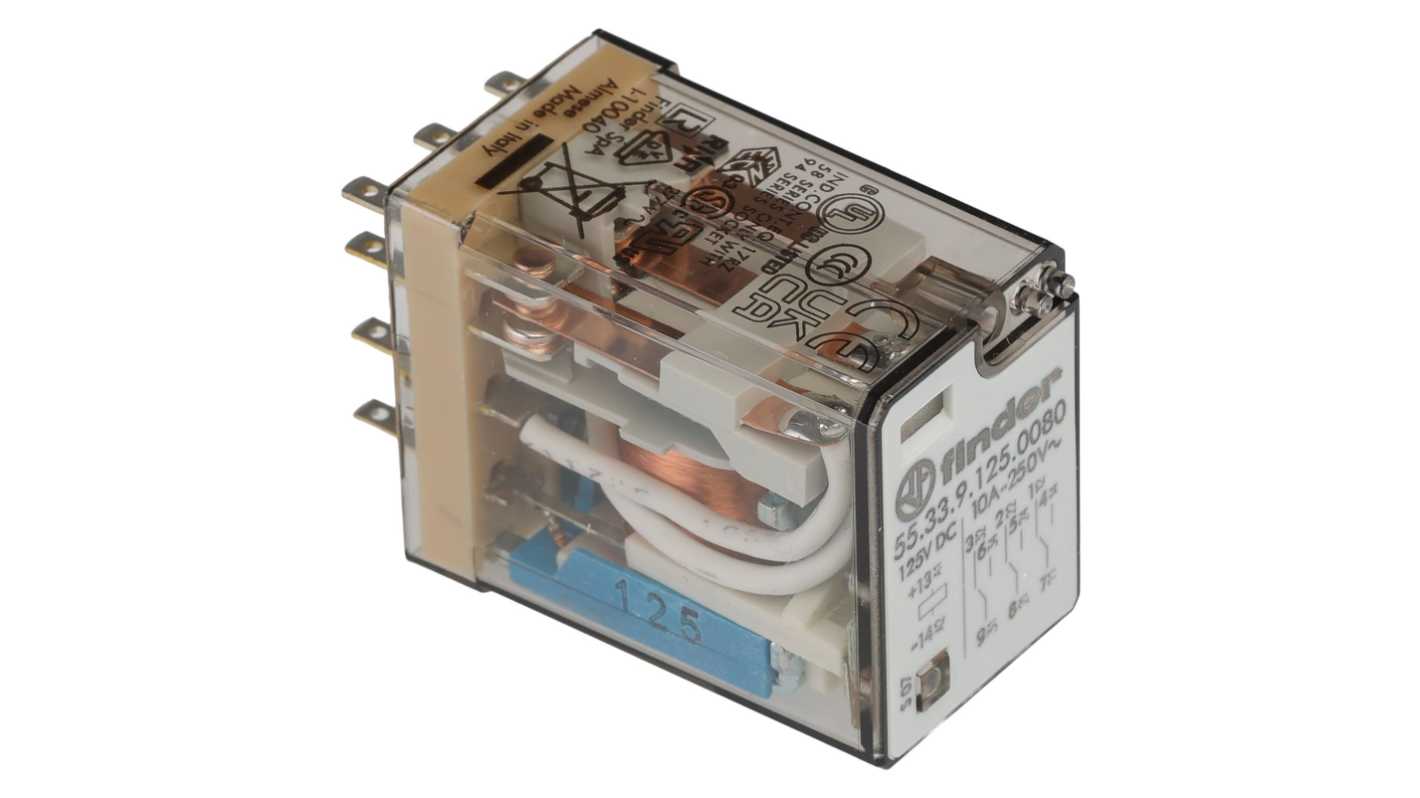

Finder Plug In Relay, 125V dc Coil, 10A Switching Current, 3PDT, 3PDT
- RS Stock No.:
- 248-1599
- Mfr. Part No.:
- 553391250080
- Brand:
- Finder
Subtotal (1 pack of 10 units)*
£187.98
(exc. VAT)
£225.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £18.798 | £187.98 |
*price indicative
- RS Stock No.:
- 248-1599
- Mfr. Part No.:
- 553391250080
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Finder | |
Coil Voltage | 125V dc | |
Contact Configuration | 3PDT, 3PDT | |
Mounting Type | Plug In | |
Switching Current | 10A | |
Number of Poles | 3 | |
Series | 55 | |
Latching | No | |
Terminal Type | Plug In | |
Maximum Switching Voltage AC | 400V ac | |
Maximum Switching Voltage DC | 220V dc | |
Maximum Switching Current AC | 20 A | |
Coil Power | 1.5W | |
Life | 200000 Cycles | |
Contact Material | Silver Alloy | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Isolation Coil To Contact | 4kV | |
Standards Met | cURus, EAC | |
Number of Coils | Single | |
Select all | ||
---|---|---|
Brand Finder | ||
Coil Voltage 125V dc | ||
Contact Configuration 3PDT, 3PDT | ||
Mounting Type Plug In | ||
Switching Current 10A | ||
Number of Poles 3 | ||
Series 55 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 400V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Current AC 20 A | ||
Coil Power 1.5W | ||
Life 200000 Cycles | ||
Contact Material Silver Alloy | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Isolation Coil To Contact 4kV | ||
Standards Met cURus, EAC | ||
Number of Coils Single | ||
- COO (Country of Origin):
- IT
Finder Series 55 Relay, 125V DC Coil Voltage, 10A Switching Current - 553391250080
This relay is a high-performance device designed for automation and control applications. It operates at a coil voltage of 125V DC and has a robust 3PDT contact configuration, ideal for efficient switching operations. Featuring a plug-in terminal type, it supports a maximum switching voltage of 400V AC and can handle up to 10A, making it suitable for a wide range of electrical applications.
Features & Benefits
• Coil power of 1.5VA ensures minimal energy consumption
• Insulation capabilities maintain a high dielectric strength of 4kV
• Mechanical life spans up to 20 million cycles for durability
• AgNi contact material ensures reliable, long-lasting performance
• Operates within an ambient temperature range of -40°C to +85°C
• Designed for easy integration with existing electrical systems
• Insulation capabilities maintain a high dielectric strength of 4kV
• Mechanical life spans up to 20 million cycles for durability
• AgNi contact material ensures reliable, long-lasting performance
• Operates within an ambient temperature range of -40°C to +85°C
• Designed for easy integration with existing electrical systems
Applications
• Used for controlling automation systems in factory settings
• Ideal for managing lighting in tunnels and roadways
• Suitable for operating hoists and cranes in industrial environments
• Employed in circuit breakers and electrical distribution panels
• Utilised in control panels for efficient energy management
• Ideal for managing lighting in tunnels and roadways
• Suitable for operating hoists and cranes in industrial environments
• Employed in circuit breakers and electrical distribution panels
• Utilised in control panels for efficient energy management
What current and voltage ratings can this relay handle?
The relay can handle a switching current of up to 10A and a maximum switching voltage of 400V AC or 220V DC.
How does this relay perform under varying temperature conditions?
It operates efficiently in a wide ambient temperature range from -40°C to +85°C, making it versatile for different environments.
What kind of contact configuration does this relay provide?
It features a 3PDT (three poles, double throw) configuration, allowing for multiple circuit management.
What makes the AgNi contact material advantageous for this product?
AgNi provides excellent electrical conductivity and durability, ensuring reliable operation and prolonged life.
Can this relay be used in automation systems for electric blinds?
Yes, it is suitable for use in automation specifically for controlling electric blinds, grilles, and shutters within various environments.
