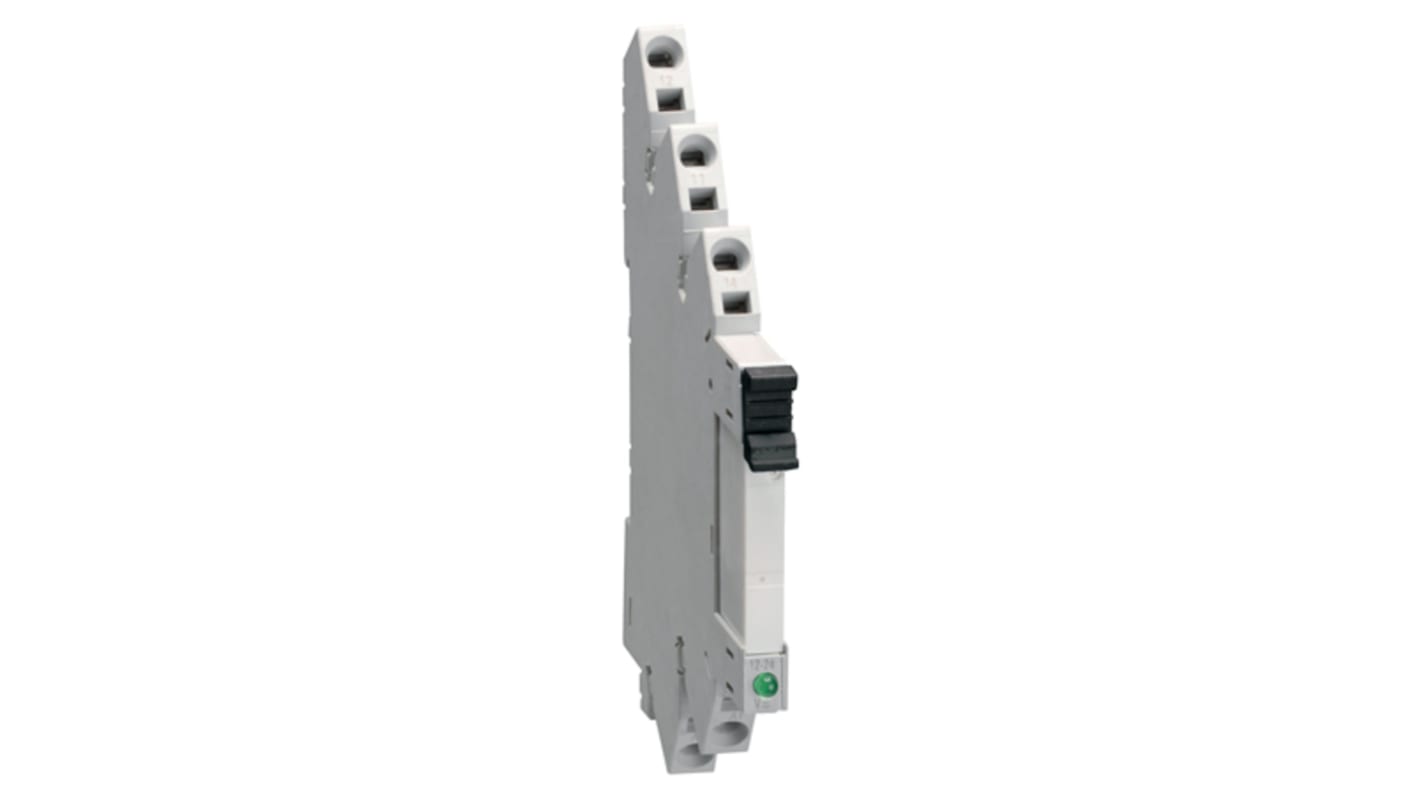

Lovato DIN Rail Non-Latching Relay, 24V ac/dc Coil, 6A Switching Current, SPDT
- RS Stock No.:
- 247-9610
- Mfr. Part No.:
- HRA101CE024S
- Brand:
- Lovato
Subtotal (1 unit)*
£16.86
(exc. VAT)
£20.23
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £16.86 |
*price indicative
- RS Stock No.:
- 247-9610
- Mfr. Part No.:
- HRA101CE024S
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Coil Voltage | 24V ac/dc | |
| Product Type | Non-Latching Relay | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Series | HRA10 | |
| Terminal Type | Spring Terminal | |
| Switching Current | 6A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 230V ac | |
| Switching Power | 1.5kW | |
| Maximum Operating Temperature | 70°C | |
| Length | 76.5mm | |
| Standards/Approvals | IEC/EN 61810 | |
| Width | 6.3mm | |
| Coil Power | 0.2W | |
| Height | 89.5mm | |
| Contact Material | Silver Nickel Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Lovato | ||
Coil Voltage 24V ac/dc | ||
Product Type Non-Latching Relay | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Series HRA10 | ||
Terminal Type Spring Terminal | ||
Switching Current 6A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 230V ac | ||
Switching Power 1.5kW | ||
Maximum Operating Temperature 70°C | ||
Length 76.5mm | ||
Standards/Approvals IEC/EN 61810 | ||
Width 6.3mm | ||
Coil Power 0.2W | ||
Height 89.5mm | ||
Contact Material Silver Nickel Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- CN
The Lovato is a Slim electromechanical relay assembled on socket and has control voltage of 24VAC/DC, rated current of 6A with 1 C/O contact configuration.
Maximum cycle frequency cycles/h 10000
Ambient operating temperature from -40 to +70 °C
