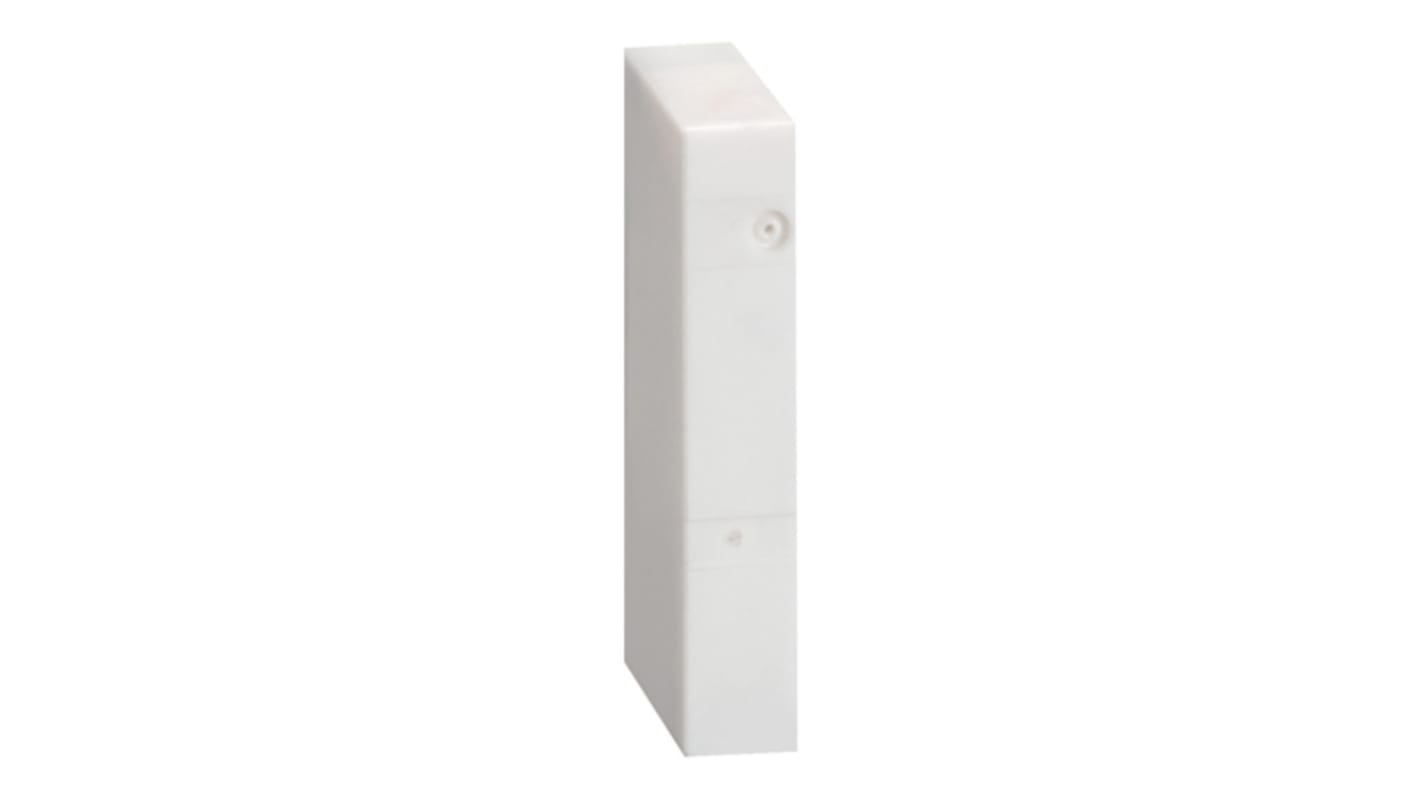

Lovato DIN Rail Non-Latching Relay, 60V dc Coil, 6A Switching Current, SPDT
- RS Stock No.:
- 247-9545
- Mfr. Part No.:
- HR101CE060
- Brand:
- Lovato
Subtotal (1 unit)*
£5.61
(exc. VAT)
£6.73
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.61 |
*price indicative
- RS Stock No.:
- 247-9545
- Mfr. Part No.:
- HR101CE060
- Brand:
- Lovato
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato | |
| Coil Voltage | 60V dc | |
| Product Type | Non-Latching Relay | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Series | HR10 | |
| Terminal Type | Socket | |
| Switching Current | 6A | |
| Switching AC Voltage | 277V ac | |
| Switching Power | 1.5kW | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 30V dc | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | CSA cURus, EAC, IEC/EN 61810, VDE | |
| Width | 5mm | |
| Coil Power | 0.2W | |
| Height | 18.5mm | |
| Length | 28mm | |
| Contact Material | Silver Nickel Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Lovato | ||
Coil Voltage 60V dc | ||
Product Type Non-Latching Relay | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Series HR10 | ||
Terminal Type Socket | ||
Switching Current 6A | ||
Switching AC Voltage 277V ac | ||
Switching Power 1.5kW | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 30V dc | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals CSA cURus, EAC, IEC/EN 61810, VDE | ||
Width 5mm | ||
Coil Power 0.2W | ||
Height 18.5mm | ||
Length 28mm | ||
Contact Material Silver Nickel Alloy | ||
Contact Resistance 100mΩ | ||
The Lovato is a Slim electromechanical relay has control voltage of 60VDCand, rated current of 6A with contact configuration 1 C/O contact
Maximum cycle frequency cycles/h 10000
Ambient operating temperature from -40 to +70 °C
