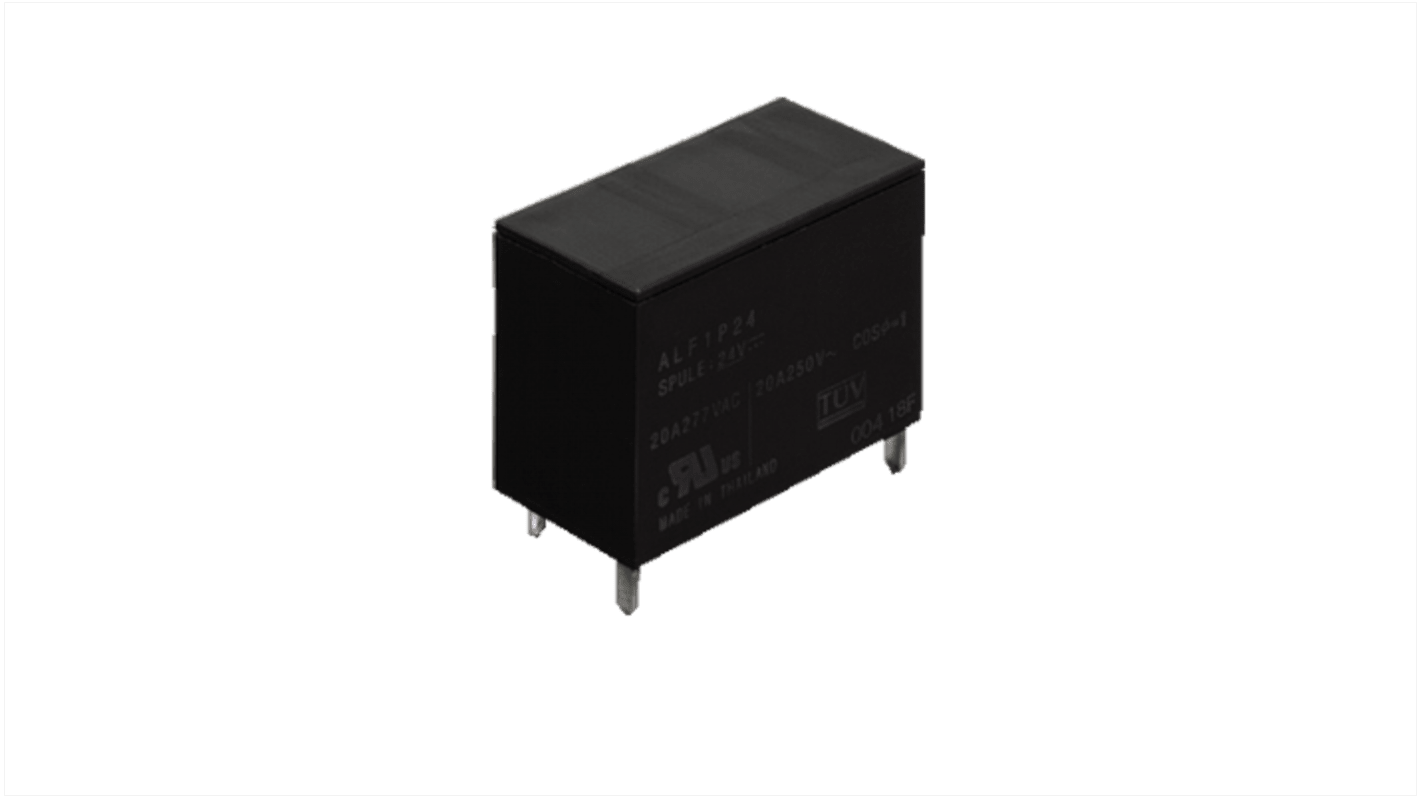

Panasonic PCB Non-Latching Relay, 12V dc Coil, 75mA Switching Current, SPST
- RS Stock No.:
- 247-4108
- Distrelec Article No.:
- 137-11-089
- Mfr. Part No.:
- ALF1P12
- Brand:
- Panasonic
Get a bulk buy discount
Add 5 more to save 3%
View bulk pricing optionsSubtotal (1 unit)*
£3.26
(exc. VAT)
£3.91
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 210 unit(s) shipping from 16 November 2026
- Plus 98 unit(s) shipping from 16 November 2026
- Plus 44 unit(s) shipping from 23 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 4 | £3.26 | - |
| 5 - 9 | £3.14 | 3% |
| 10 - 24 | £3.04 | 6% |
| 25 + | £2.92 | 10% |
*price indicative
- RS Stock No.:
- 247-4108
- Distrelec Article No.:
- 137-11-089
- Mfr. Part No.:
- ALF1P12
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Coil Voltage | 12V dc | |
| Product Type | Non-Latching Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | LF | |
| Terminal Type | Solder | |
| Switching Current | 75mA | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 30V dc | |
| Switching Power | 60W | |
| Maximum Operating Temperature | 60°C | |
| Coil Resistance | 145Ω | |
| Width | 7mm | |
| Length | 22mm | |
| Coil Power | 200mW | |
| Height | 12mm | |
| Standards/Approvals | CSA, RoHS, UL, VDE | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Coil Voltage 12V dc | ||
Product Type Non-Latching Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series LF | ||
Terminal Type Solder | ||
Switching Current 75mA | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 30V dc | ||
Switching Power 60W | ||
Maximum Operating Temperature 60°C | ||
Coil Resistance 145Ω | ||
Width 7mm | ||
Length 22mm | ||
Coil Power 200mW | ||
Height 12mm | ||
Standards/Approvals CSA, RoHS, UL, VDE | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- TH
The Panasonics ALF series of power relays have 1 form A contact arrangement, this component has PCB terminals. The rated coil voltage is 12 V dc. The rated operating current is 75 mA, and it has coil resistance of 160 Ω. This component is typically used in applications like air conditioner, refrigerators and OA equipment.
Ideal for compressor and inverter loads
Insulation distance (between contact and coil) is clearance of minimum 8 mm and creepage of minimum 9.5 mm
Surge withstand voltage of 10,000 V
