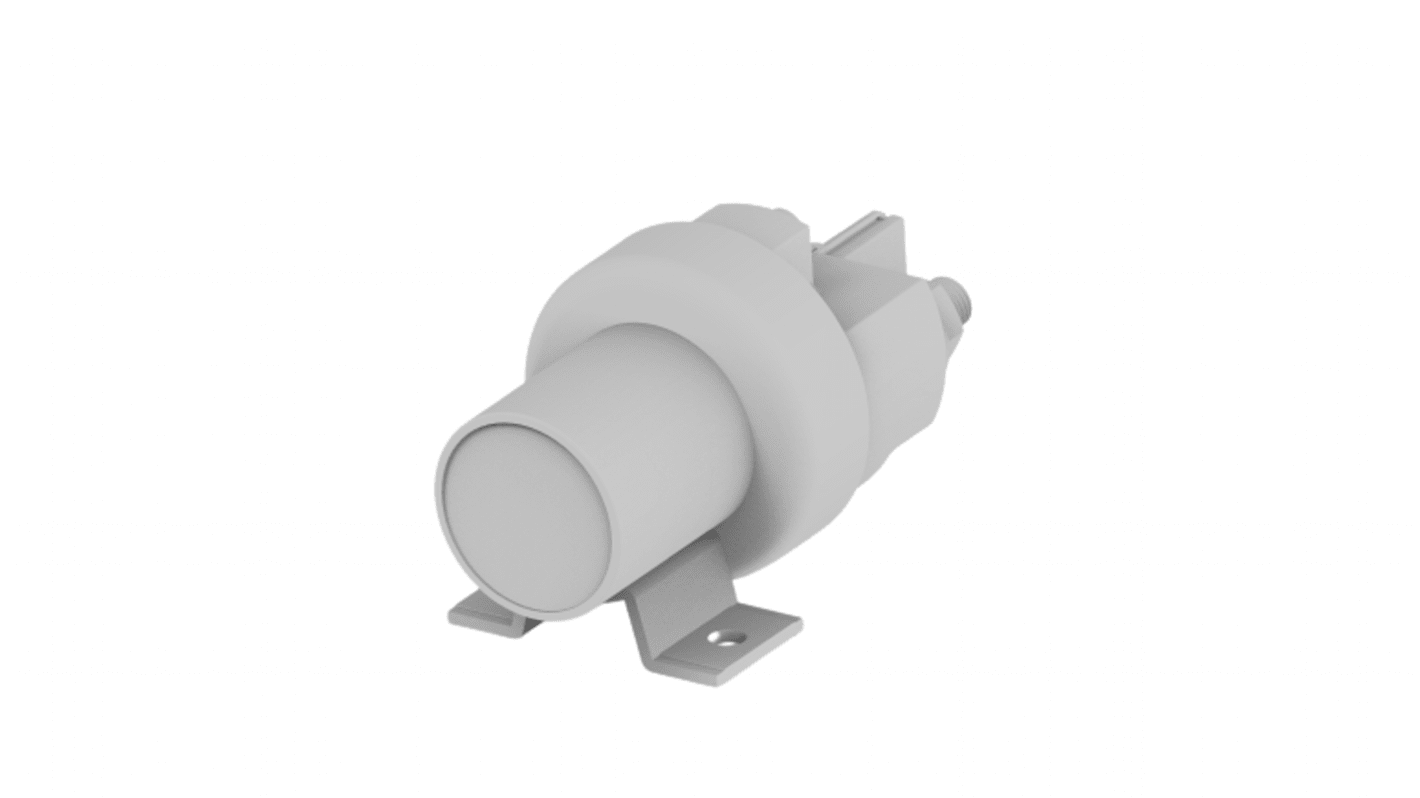

TE Connectivity Surface Mount Non-Latching Relay, 28V dc Coil, 100A Switching Current, SPST
- RS Stock No.:
- 223-8109
- Mfr. Part No.:
- 26-60-05
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£310.03
(exc. VAT)
£372.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £310.03 |
*price indicative
- RS Stock No.:
- 223-8109
- Mfr. Part No.:
- 26-60-05
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Coil Voltage | 28V dc | |
Contact Configuration | SPST | |
Mounting Type | Surface Mount | |
Switching Current | 100A | |
Number of Poles | 1 | |
Series | KISSLING 26 | |
Coil Resistance | 3.6 O | |
Coil Power | 8W | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Coil Voltage 28V dc | ||
Contact Configuration SPST | ||
Mounting Type Surface Mount | ||
Switching Current 100A | ||
Number of Poles 1 | ||
Series KISSLING 26 | ||
Coil Resistance 3.6 O | ||
Coil Power 8W | ||
- COO (Country of Origin):
- DE
The TE Connectivity dual coil system relay features extremely high shock and vibration resistance predominantly from careful design and an optimized magnetic circuit. It has 100 ampere current rating. This relay belongs to kissling 26 series.
Sealed housing conforms to IP6K9K
Dual-Coil monostable high performance relay with optional auxiliary contact
Up to 30G shock & 10G vibration resistant
Military grade performance
Wide variety of configuration options for individual needs
Meets the requirements of MIL-R-6106
Dual-Coil monostable high performance relay with optional auxiliary contact
Up to 30G shock & 10G vibration resistant
Military grade performance
Wide variety of configuration options for individual needs
Meets the requirements of MIL-R-6106
