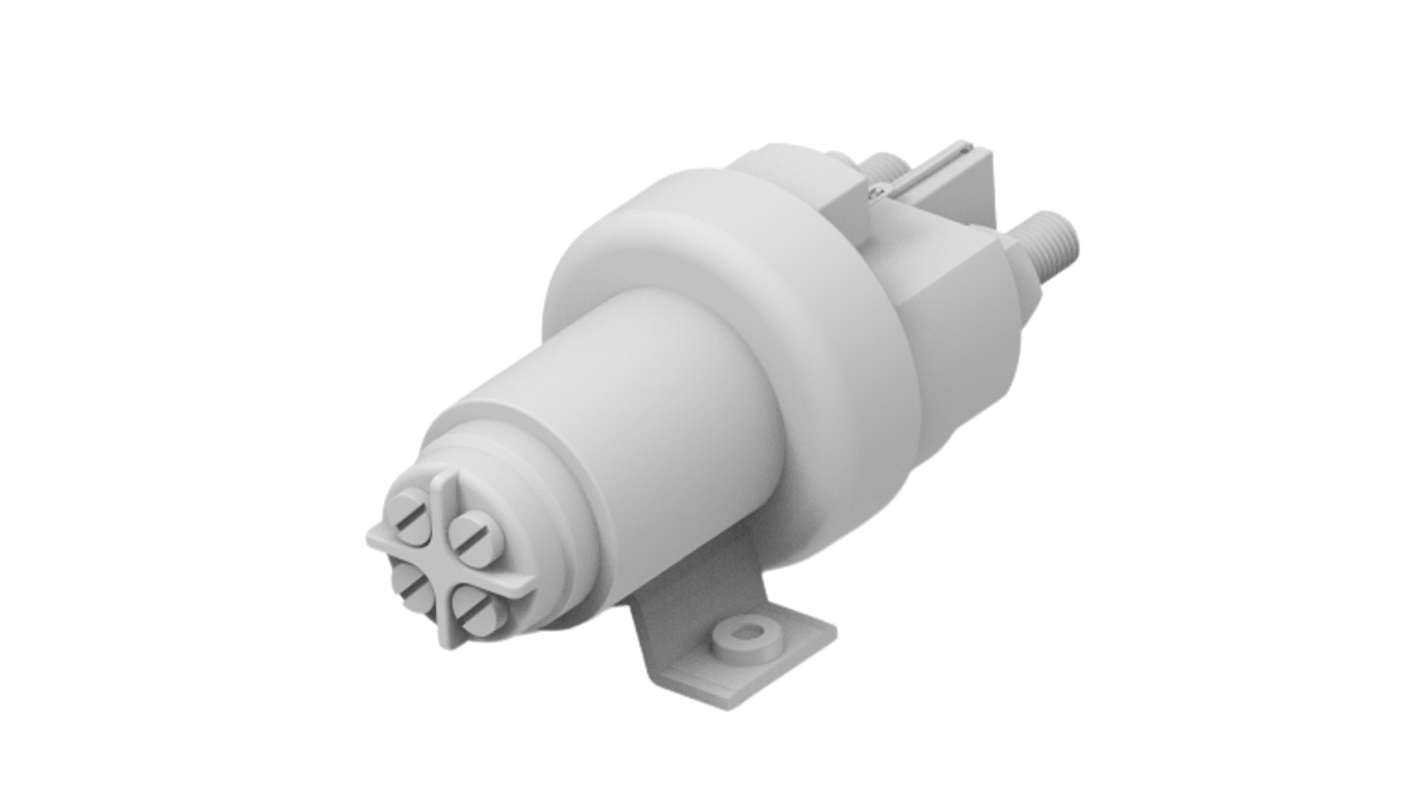

TE Connectivity Surface Non-Latching Relay, 12V dc Coil, 300A Switching Current, SPST
- RS Stock No.:
- 223-8104
- Mfr. Part No.:
- 26-55-75-M403
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£496.19
(exc. VAT)
£595.43
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 8 unit(s) shipping from 04 May 2026
- Plus 1 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £496.19 |
*price indicative
- RS Stock No.:
- 223-8104
- Mfr. Part No.:
- 26-55-75-M403
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 12V dc | |
| Product Type | Non-Latching Relay | |
| Contact Configuration | SPST | |
| Mount Type | Surface | |
| Series | KISSLING 26 | |
| Terminal Type | Screw | |
| Switching Current | 300A | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 1.4Ω | |
| Height | 98mm | |
| Width | 62mm | |
| Coil Power | 5.25W | |
| Standards/Approvals | IEC 60529, RoHS | |
| Length | 135mm | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Product Type Non-Latching Relay | ||
Contact Configuration SPST | ||
Mount Type Surface | ||
Series KISSLING 26 | ||
Terminal Type Screw | ||
Switching Current 300A | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 1.4Ω | ||
Height 98mm | ||
Width 62mm | ||
Coil Power 5.25W | ||
Standards/Approvals IEC 60529, RoHS | ||
Length 135mm | ||
Contact Material Silver Alloy | ||
The TE Connectivity dual coil system relay features extremely high shock and vibration resistance predominantly from careful design and an optimized magnetic circuit. It has 300 ampere current rating. This relay belongs to kissling 26 series.
Sealed housing conforms to IP6K9K
Dual-Coil monostable high performance relay with optional auxiliary contact
Up to 30G shock & 10G vibration resistant
Military grade performance
Wide variety of configuration options for individual needs
Meets the requirements of MIL-R-6106
