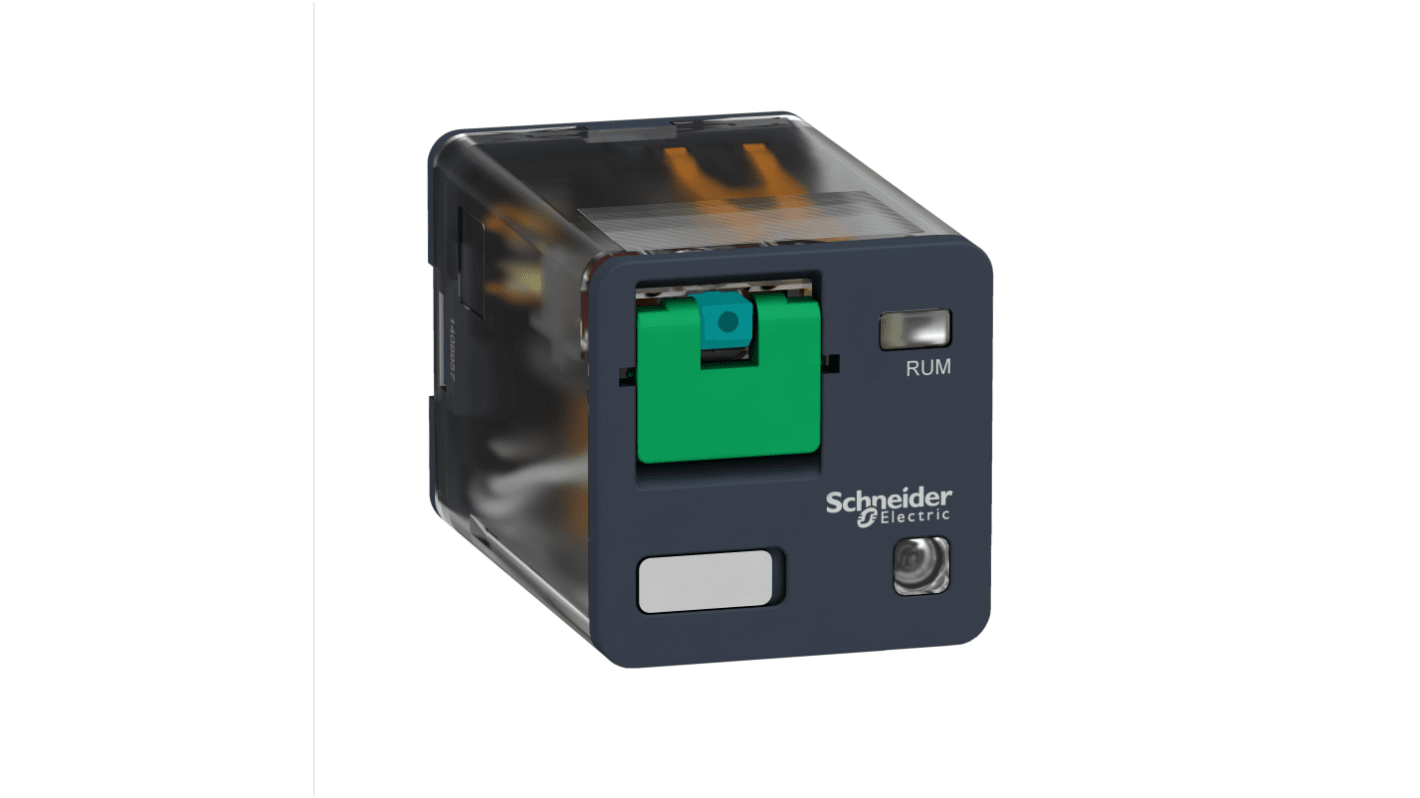

Schneider Electric Power Relay, 12V dc Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 220-5145
- Mfr. Part No.:
- RUMC22JD
- Brand:
- Schneider Electric
Subtotal (1 pack of 10 units)*
£123.52
(exc. VAT)
£148.22
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 17 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £12.352 | £123.52 |
*price indicative
- RS Stock No.:
- 220-5145
- Mfr. Part No.:
- RUMC22JD
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Power Relay | |
| Coil Voltage | 12V dc | |
| Contact Configuration | DPDT | |
| Series | Harmony Relay RUM | |
| Switching Current | 10A | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Switching DC Voltage | 30V dc | |
| Switching Power | 2.5kVA | |
| Coil Resistance | 120Ω | |
| Maximum Operating Temperature | 55°C | |
| Coil Power | 1.4W | |
| Standards/Approvals | CSA, EAC, REACH, RoHS, UL | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Power Relay | ||
Coil Voltage 12V dc | ||
Contact Configuration DPDT | ||
Series Harmony Relay RUM | ||
Switching Current 10A | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Switching DC Voltage 30V dc | ||
Switching Power 2.5kVA | ||
Coil Resistance 120Ω | ||
Maximum Operating Temperature 55°C | ||
Coil Power 1.4W | ||
Standards/Approvals CSA, EAC, REACH, RoHS, UL | ||
Contact Material Silver Nickel Alloy | ||
- COO (Country of Origin):
- CN
The Schneider electric range zelio RUM of universal plug-in relay on base, Spring return lockable test button for testing contacts A mechanical indication of relay status No adjustments required for standard operation Socket to be ordered separately. Supply voltage is 24Vac and current is 10A.Relays are electrical switches that are operated by electrical impulses with the primary function to open and close a circuit, they can also be referred to as industrial switches.
Green Premium product
Mercury free
REACh free of SVHC
