Omron Plug In Latching Non-Latching Relay, 24V dc Coil, 5A Switching Current, DPDT

View all Power Relays

Subtotal (1 unit)*

£12.70

(exc. VAT)

£15.24

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 20 unit(s) shipping from 16 December 2025
  • Plus 90 unit(s) shipping from 20 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£12.70

*price indicative

RS Stock No.:
215-7848
Distrelec Article No.:
301-37-210
Mfr. Part No.:
G2R-2-SN-AP3 24VDC (S)
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

24V dc

Contact Configuration

DPDT

Mounting Type

Plug In

Switching Current

5A

Number of Poles

2

Latching

Yes

Series

G2R-2

Terminal Type

Plug In

Maximum Switching Voltage AC

440V

Maximum Switching Voltage DC

125V

Maximum Switching Current AC

10 A

Maximum Switching Current DC

10 A

Length

29mm

Coil Resistance

1113 Ω

Coil Power

530mW

Minimum Operating Temperature

-40°C

Standards Met

CE

Depth

13mm

Maximum Operating Temperature

+70°C

Contact Material

Silver Alloy

Height

35.5mm

Maximum Switching Power DC

300 W

Maximum Switching Power AC

2.5 kVA

Dimensions

29 x 13 x 35.5mm

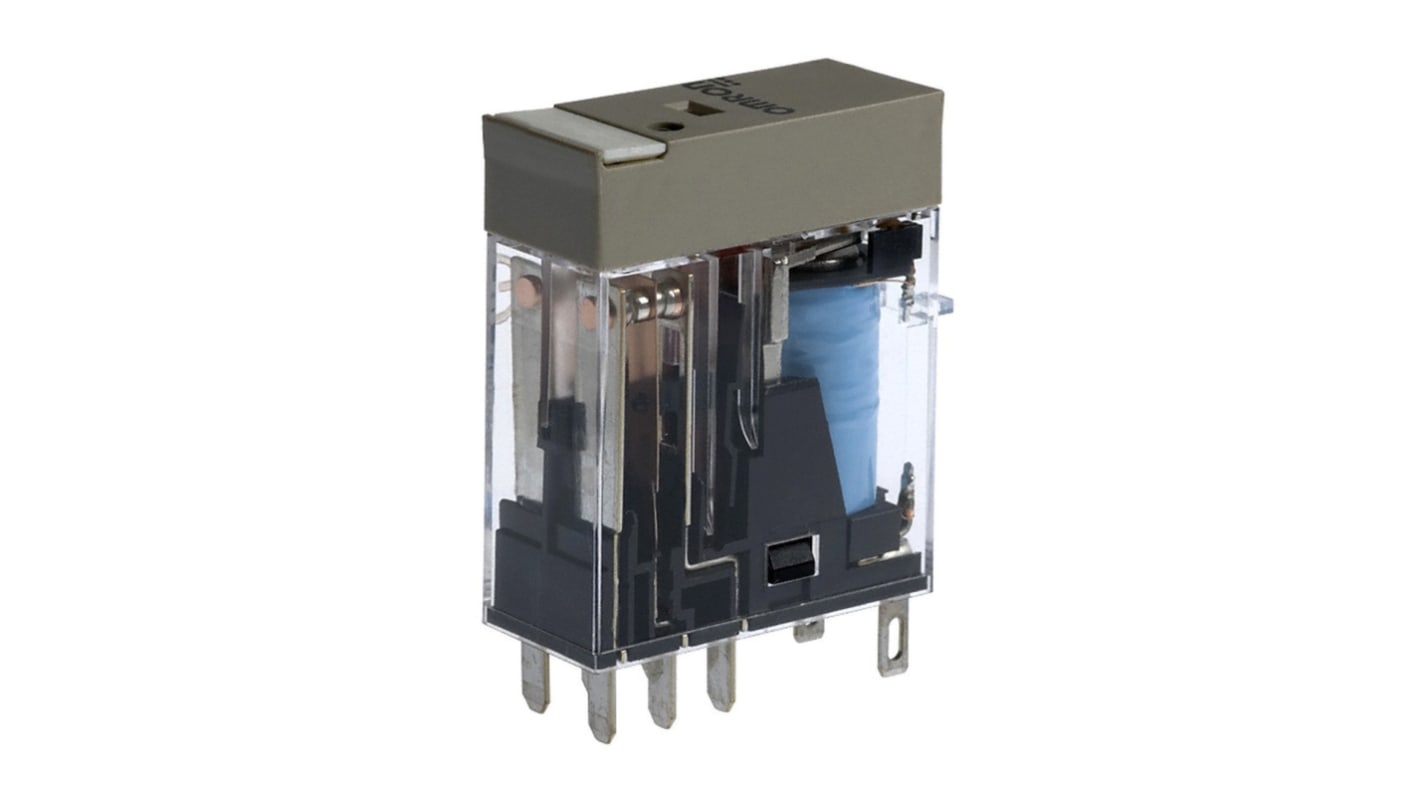

OMRON Non-Latching Relay, 1113Ω Coil Resistance, 2 Poles - G2R-2 Series - G2R-2-SN-AP3 DC24(S)


For a reliable connection in small spaces, spark up your motor controls using this non-latching relay from OMRON. It slots easily into tight work setups thanks to a slim design with dimensions of just 41.7 (H) x 13 (W) x 29mm (D).As it has a 5A switching current, you can use the unit to manage electrical loads in lighting systems. Transparent housing makes it a breeze to inspect the internal components at a glance. And with a simple plug-in design, installation is trouble-free.

Features & Benefits


• Suitable for use in harsh conditions, thanks to an operating temperature range between -40°C and +70°C
• Puts minimal burden on electrical equipment with a light weight of 20g
• Operating frequency up to 18,000 mechanical operations per hour, so keeps up with fast-paced systems
• Built-in operational indicator for easy monitoring

Applications


• Solar energy generation
• Heating and ventilation systems
• Industrial cleaning equipment

What contact configuration does this relay have?


As a double-pole, double-throw (DPDT) relay, the device separates pairs of electrical circuits so that you can control two motors independently from a single unit.
