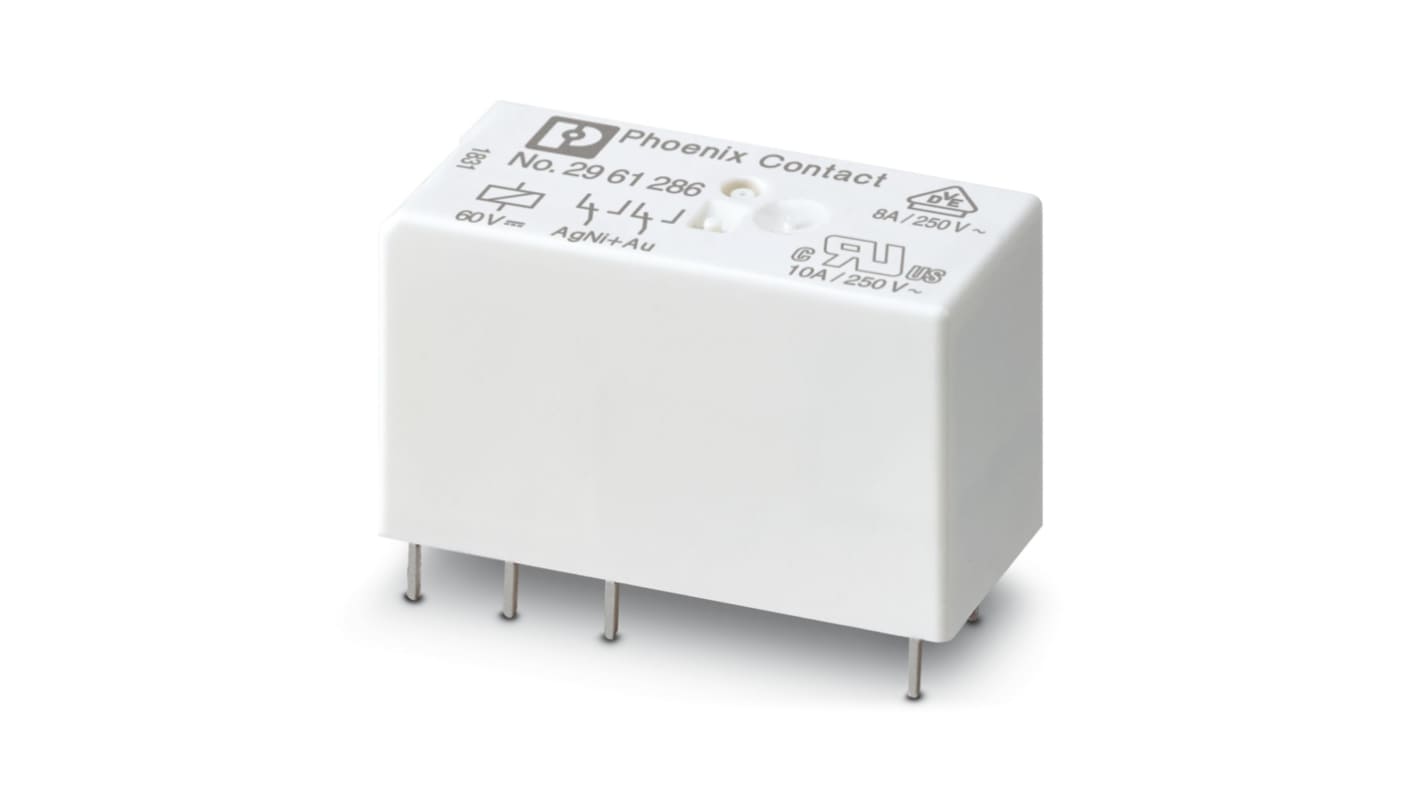

Phoenix Contact DIN Rail Power Relay, 60V dc Coil, 10A Switching Current, 2PDT
- RS Stock No.:
- 212-7327
- Mfr. Part No.:
- 2961286
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 212-7327
- Mfr. Part No.:
- 2961286
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Coil Voltage | 60V dc | |
| Product Type | Power Relay | |
| Contact Configuration | 2PDT | |
| Mount Type | DIN Rail | |
| Series | 60DC/21-21AU | |
| Terminal Type | Solder | |
| Switching Current | 10A | |
| Switching DC Voltage | 36V dc | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 250V ac | |
| Coil Resistance | 7.3kΩ | |
| Maximum Operating Temperature | 85°C | |
| Width | 12.7mm | |
| Standards/Approvals | EN 50178, EN 61810-1, IEC 60664 | |
| Coil Power | 0.49W | |
| Height | 29mm | |
| Length | 15.7mm | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Coil Voltage 60V dc | ||
Product Type Power Relay | ||
Contact Configuration 2PDT | ||
Mount Type DIN Rail | ||
Series 60DC/21-21AU | ||
Terminal Type Solder | ||
Switching Current 10A | ||
Switching DC Voltage 36V dc | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 250V ac | ||
Coil Resistance 7.3kΩ | ||
Maximum Operating Temperature 85°C | ||
Width 12.7mm | ||
Standards/Approvals EN 50178, EN 61810-1, IEC 60664 | ||
Coil Power 0.49W | ||
Height 29mm | ||
Length 15.7mm | ||
Contact Material Silver Nickel Alloy | ||
The Phoenix Contact Plug-in miniature power relay, with multi-layer gold contact.
2 PDTs
Input voltage 60 V DC
