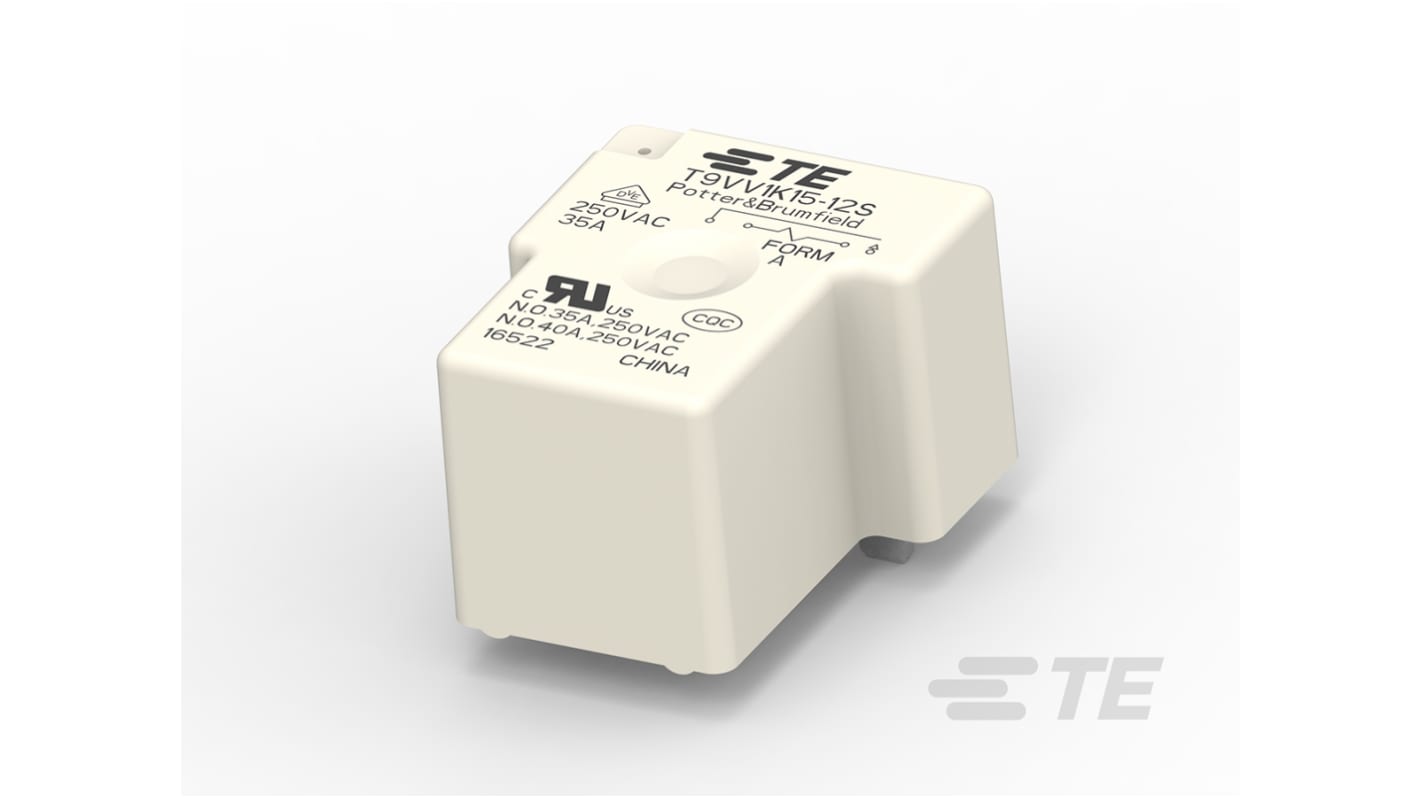

TE Connectivity PCB Mount Power Relay, 12V dc Coil, 40A Switching Current, SPST
- RS Stock No.:
- 185-9664P
- Mfr. Part No.:
- 2027395-5
- Brand:
- TE Connectivity
Bulk discount available
Subtotal 5 units (supplied in a tray)*
£33.65
(exc. VAT)
£40.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 415 unit(s) ready to ship
- Plus 999,999,584 unit(s) shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 5 - 9 | £6.73 |
| 10 - 19 | £6.24 |
| 20 + | £5.81 |
*price indicative
- RS Stock No.:
- 185-9664P
- Mfr. Part No.:
- 2027395-5
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPST | |
| Mounting Type | PCB Mount | |
| Switching Current | 40A | |
| Number of Poles | 1 | |
| Series | T9V | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 277V | |
| Maximum Switching Voltage DC | 30V dc | |
| Length | 27.43mm | |
| Coil Resistance | 64Ω | |
| Coil Power | 2.25W | |
| Contact Material | Silver Alloy | |
| Isolation Coil To Contact | 4kV | |
| Height | 20.4mm | |
| Maximum Operating Temperature | +85°C | |
| Depth | 32.5mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Contact Configuration SPST | ||
Mounting Type PCB Mount | ||
Switching Current 40A | ||
Number of Poles 1 | ||
Series T9V | ||
Latching No | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 277V | ||
Maximum Switching Voltage DC 30V dc | ||
Length 27.43mm | ||
Coil Resistance 64Ω | ||
Coil Power 2.25W | ||
Contact Material Silver Alloy | ||
Isolation Coil To Contact 4kV | ||
Height 20.4mm | ||
Maximum Operating Temperature +85°C | ||
Depth 32.5mm | ||
TE Connectivity Potter & Brumfield Power PCB Relay T9V Series
TE Connectivity (TE)’s Potter & Brumfield Power PCB relay T9V series is primarily designed for electrical vehicle charging stations, charging cables and for photovoltaic inverter applications. The extended contact gap (greater than 1.8 mm) of this relay provides improved isolation and allows usage in higher elevation environments. Other applications include stand by power units, washing machines and dryer disconnections. The T9V series relay is UL recognized, VDE, TÜV and CQC approved and allows coil holding voltage reduction down to 4.7 V.
Features and Benefits
- Provide an ideal solution for disconnect switch applications (safety)
- Enable high current switching (9 kW single and 27 kW 3 phase solar inverters)
- Provide a solution for cadmium-free application requirements
- Achieve improved isolation with extended contact gap (1.8 mm)
- Allow for coil holding voltage reduction down to 4.7 V
Applications
TE Connectivity T9V series non-latching relays provide an energy efficient and sustainable energy solution in a wide range of applications including:
- Electrical vehicle loading stations
- Electrical vehicle charging cables
- Photovoltaic inverter
- Stand by power units
- Washing machines
- Dryers
Specifications
- VDE 40030974
- UL E58304
- CQC 16002145203
- TÜV R50369970
