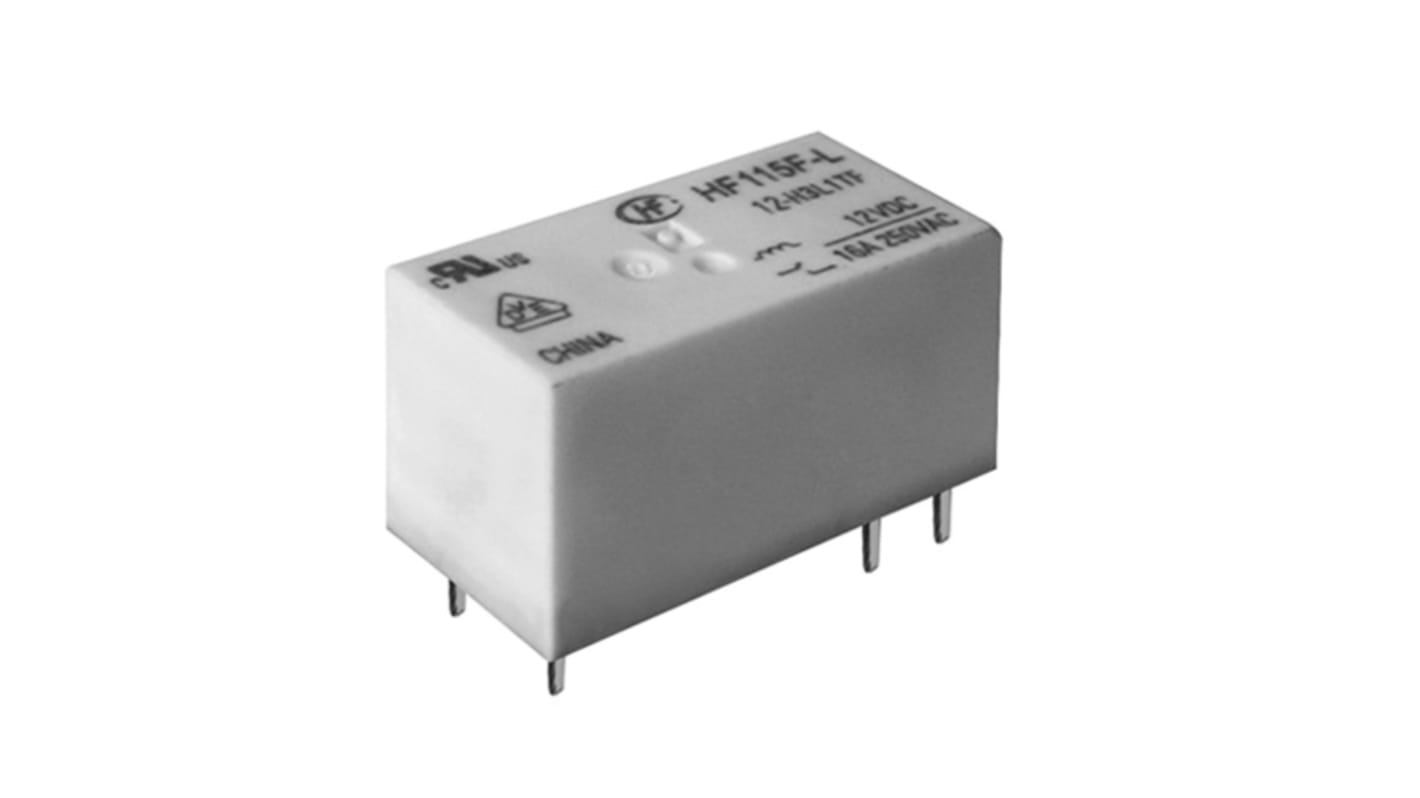

Hongfa Europe GMBH PCB Mount Latching Power Relay, 12V dc Coil, 20A Switching Current, SPDT

View all Power Relays

Subtotal (1 unit)*

£3.96

(exc. VAT)

£4.75

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • 89 left, ready to ship
  • Plus 14 left, ready to ship from another location
  • Final 250 unit(s) shipping from 28 October 2025
Units
Per unit
1 +£3.96

*price indicative

RS Stock No.:
176-2959
Mfr. Part No.:
HF115F-L/12-Z3L2TF(610)
Brand:
Hongfa Europe GMBH
Find similar products by selecting one or more attributes.
Select all

Brand

Hongfa Europe GMBH

Coil Voltage

12V dc

Contact Configuration

SPDT

Mounting Type

PCB Mount

Switching Current

20A

Number of Poles

1

Latching

Yes

Terminal Type

PCB Pin

Maximum Switching Voltage AC

440V

Maximum Switching Voltage DC

300V dc

Maximum Switching Current AC

20 A

Maximum Switching Current DC

20 A

Length

29mm

Coil Resistance

360Ω

Coil Power

600mW

Series

HF115F-L

Height

15.7mm

Life

2 x 10^6 cycles

Isolation Coil To Contact

5kV

Depth

12.7mm

Standards Met

CQC File No:CQC17002168381, cULus File No:E134517, VDE File No:116934

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+85°C

Contact Material

Silver Alloy

Maximum Switching Power AC

4 kVA

Dimensions

29 x 12.7 x 15.7mm

COO (Country of Origin):
CN

Hongfa Europe GMBH SPDT Latching Relay


The Hongfa SPDT latching PCB mount relay has a low mounting height of 15.7mm. It is actuated with the help of a 12VDC coil and up to 20A DC/AC current through the coil for the relay to switch position. It is a double coil latching relay with silver alloy contact.

Features and Benefits


• Provides high power switching up to 300W in case of DC
• Wide operating temperature range of -40°C and 80°C
• Isolation between coil and contact is 5kV
• Durability up to 1 x 107 cycles
• Environmental friendly product
• Plastic sealed and flux proofed types available

Applications


• Automotive engines and household appliances
• Industrial machinery and medical equipment
• Telecommunication equipment
