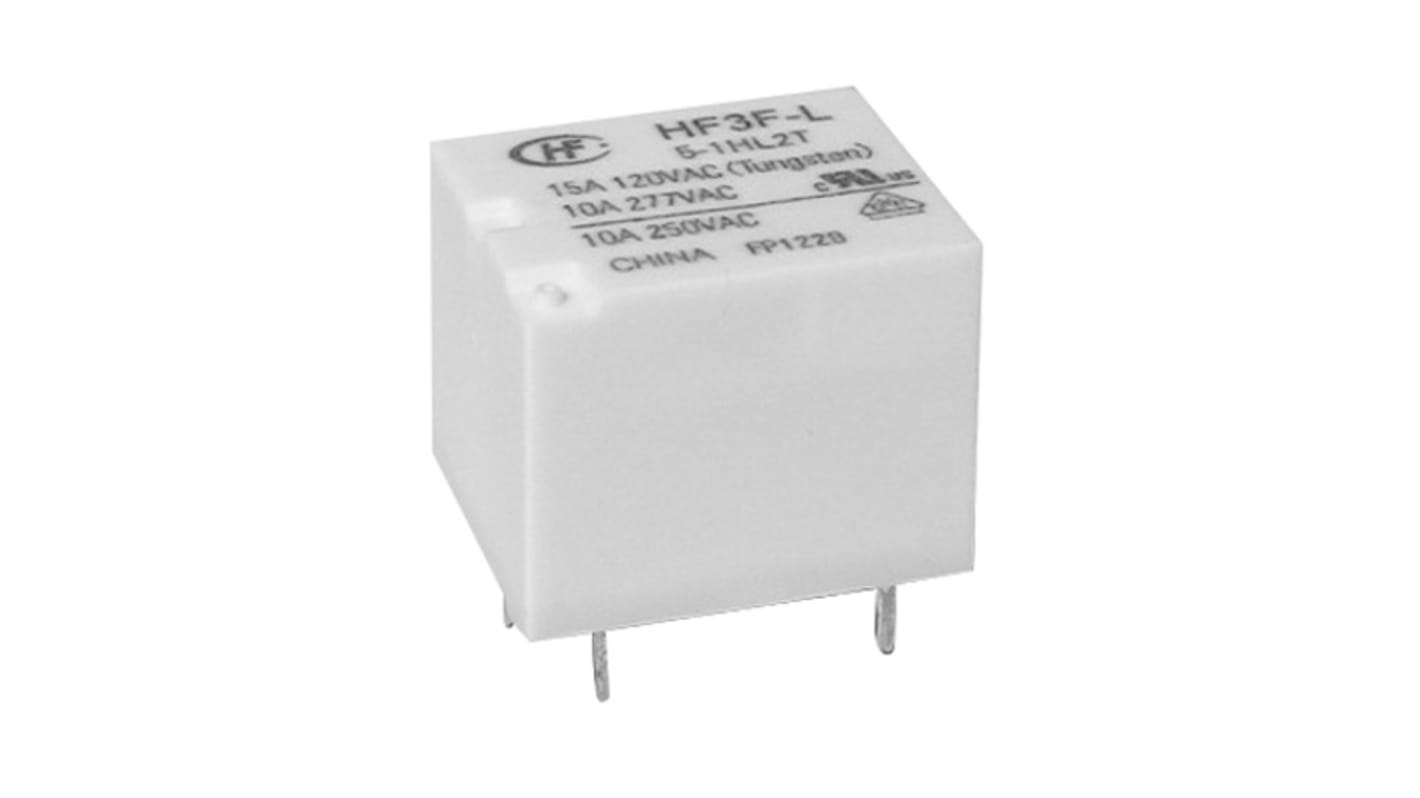

Hongfa Europe GMBH PCB Power Relay, 24V dc Coil, 15A, SPST
- RS Stock No.:
- 176-2908
- Mfr. Part No.:
- HF3F-L/24-1HL1T(610)
- Brand:
- Hongfa Europe GMBH
Subtotal (1 pack of 2 units)*
£5.47
(exc. VAT)
£6.564
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 2 + | £2.735 | £5.47 |
*price indicative
- RS Stock No.:
- 176-2908
- Mfr. Part No.:
- HF3F-L/24-1HL1T(610)
- Brand:
- Hongfa Europe GMBH
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hongfa Europe GMBH | |
| Product Type | Power Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Switching Current | 15A | |
| Switching AC Voltage | 277V ac | |
| Switching DC Voltage | 30V dc | |
| Series | HF3F-L | |
| Switching Power | 2770VA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Height | 15.5mm | |
| Width | 15.2mm | |
| Standards/Approvals | RoHS | |
| Terminal Type | PCB Terminal | |
| Length | 19mm | |
| Coil Resistance | 1440Ω | |
| Coil Power | 400mW | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Hongfa Europe GMBH | ||
Product Type Power Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Switching Current 15A | ||
Switching AC Voltage 277V ac | ||
Switching DC Voltage 30V dc | ||
Series HF3F-L | ||
Switching Power 2770VA | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Height 15.5mm | ||
Width 15.2mm | ||
Standards/Approvals RoHS | ||
Terminal Type PCB Terminal | ||
Length 19mm | ||
Coil Resistance 1440Ω | ||
Coil Power 400mW | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
Hongfa Europe GMBH SPNO Latching Relay
The Hongfa SPNO latching PCB mount relay has a low mounting height of 15.5mm. It is actuated with the help of a 24VDC Coil and up to 15A DC/AC current through the Coil for the relay to switch position. It is a sub-miniature high power single Coil latching relay.
Features and Benefits
• Provides high power switching up to 300W in case of DC
• Wide operating temperature range of -40°C and 80°C
• Durability up to 1 x 107 cycles
• Environmental friendly product
• Plastic sealed and flux proofed types available
Applications
• Automotive engines and household appliances
• Industrial machinery and medical equipment
• Telecommunication equipment
