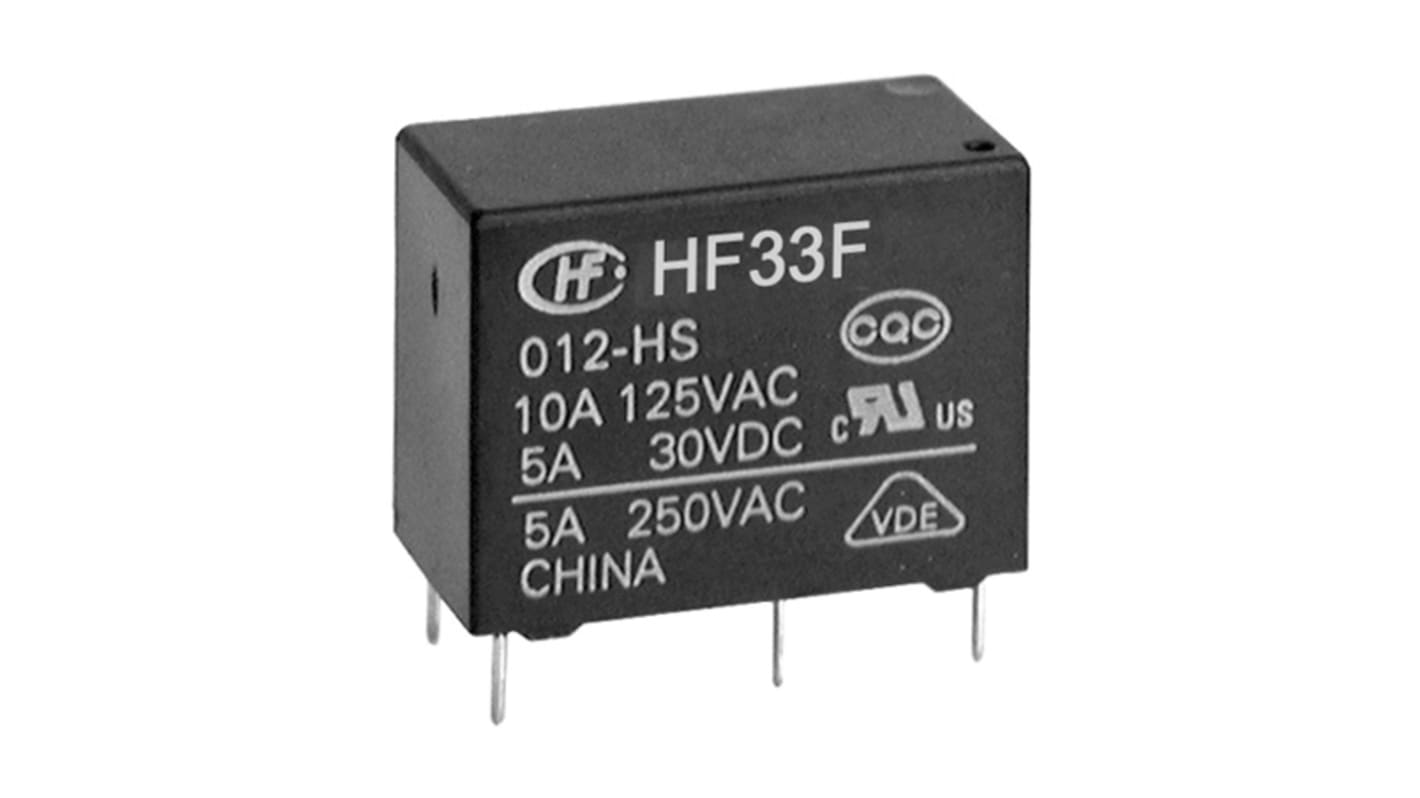

Hongfa Europe GMBH PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPST

View all Power Relays

Subtotal (1 pack of 5 units)*

£6.25

(exc. VAT)

£7.50

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 235 unit(s) ready to ship
  • Plus 210 unit(s) ready to ship from another location
  • Plus 330 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +£1.25£6.25

*price indicative

RS Stock No.:
176-2886
Mfr. Part No.:
HF33F/012-HSL3F
Brand:
Hongfa Europe GMBH
Find similar products by selecting one or more attributes.
Select all

Brand

Hongfa Europe GMBH

Coil Voltage

12V dc

Contact Configuration

SPST

Mounting Type

PCB Mount

Switching Current

10A

Number of Poles

1

Latching

No

Terminal Type

PCB Pin

Maximum Switching Voltage AC

250V

Maximum Switching Voltage DC

30V dc

Maximum Switching Current AC

10 A

Maximum Switching Current DC

10 A

Length

20.5mm

Coil Resistance

320Ω

Coil Power

200mW

Series

HF33F

Contact Material

Silver Alloy

Isolation Coil To Contact

4kV ac

Depth

10.2mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+70°C

Height

15.3mm

Life

5 x 10^6 cycles

Standards Met

CQC File No:CQC09002028694, cULus File No:E134517, VDE File No:125661

Maximum Switching Power DC

150 W

Maximum Switching Power AC

1.25 kVA

Dimensions

20.5 x 10.2 x 15.3mm

COO (Country of Origin):
CN

Hongfa Europe GMBH SPNO Non-Latching Relay


The Hongfa SPNO non-latching PCB mount relay has a low mounting height of 15.3mm. It is actuated with the help of a 12VDC coil and up to 10A DC/AC current through the coil for the relay to switch position. It has silver alloy contact.

Features and Benefits


• Provides high power switching up to 200mW in case of DC
• Wide operating temperature range of -40°C and 70°C
• Isolation between coil and contact is 4kV
• Durability up to 5 x 106 cycles
• Environmental friendly product
• Flux proofed type

Applications


• Automotive engines and household appliances
• Industrial machinery and medical equipment
• Telecommunication equipment
