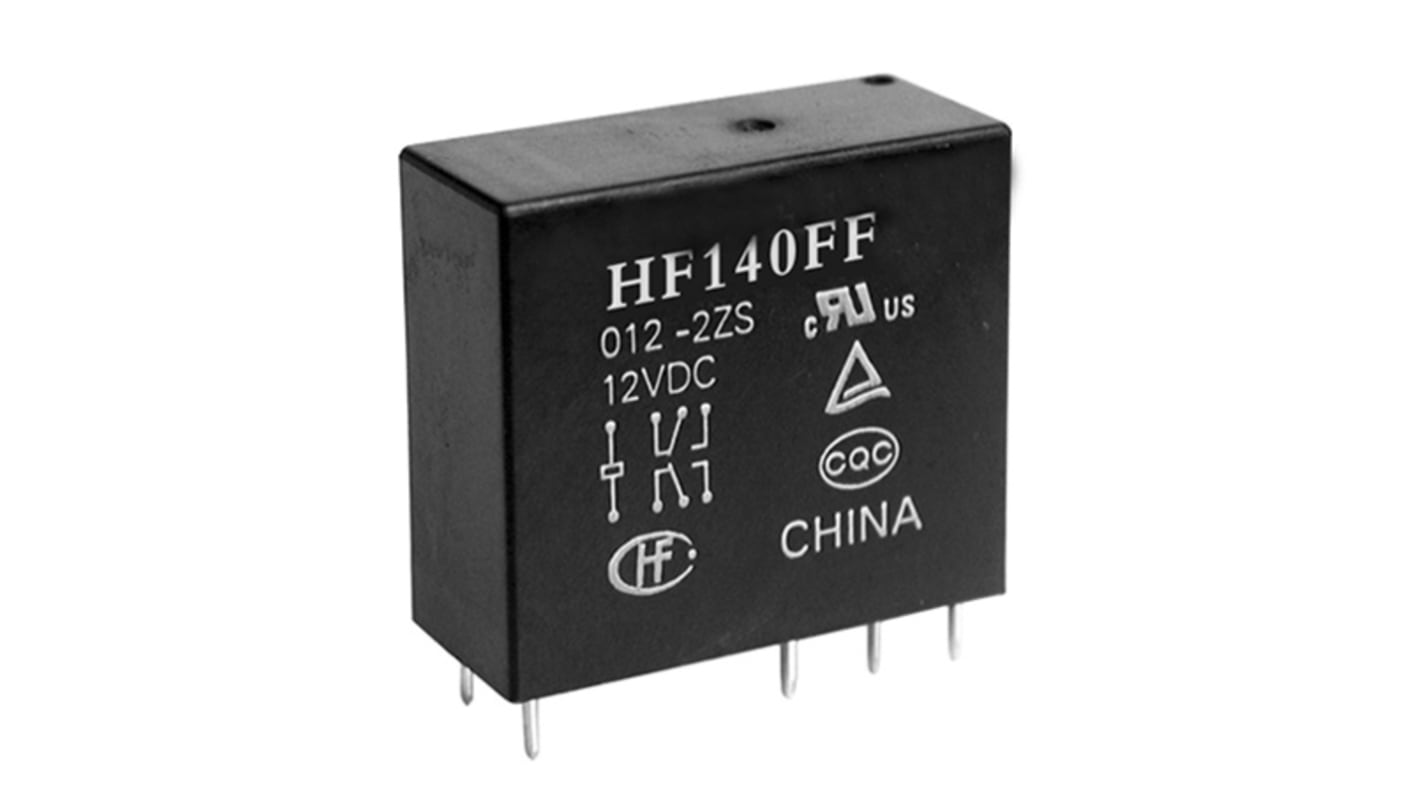

Hongfa Europe GMBH PCB Power Relay, 12V dc Coil, 10A Switching Current, DPDT

View all Power Relays

Subtotal (1 pack of 2 units)*

£5.25

(exc. VAT)

£6.30

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 12 unit(s) shipping from 04 May 2026
  • Plus 500 unit(s) shipping from 15 July 2026
  • Plus 500 unit(s) shipping from 16 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 +£2.625£5.25

*price indicative

RS Stock No.:
176-2871
Mfr. Part No.:
HF140FF/012-2ZTF
Brand:
Hongfa Europe GMBH
Find similar products by selecting one or more attributes.
Select all

Brand

Hongfa Europe GMBH

Coil Voltage

12V dc

Product Type

Power Relay

Contact Configuration

DPDT

Mount Type

PCB

Series

HF140FF

Terminal Type

PCB Pin

Switching Current

10A

Switching AC Voltage

30V ac

Switching DC Voltage

30V dc

Switching Power

2.5kVA

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Coil Resistance

275Ω

Height

26.3mm

Width

13mm

Standards/Approvals

RoHS

Coil Power

530mW

Length

29mm

Contact Material

Silver Alloy

Contact Resistance

50mΩ

COO (Country of Origin):
CN

Hongfa DPDT Non-Latching Relay PCB Mount


The Hongfa DPDT non-latching electromagnetic 2-pole PCB mount relay is a miniature form power relay of intermediate category. It is actuated with the help of a 12VDC coil and up to 10A DC/AC current through the coil for the relay to switch positions. This relay has silver alloy contact.

Features and Benefits


• High power switching up to 240W in case of DC

• Service temperature range between -40°C and 85°C

• Isolation voltage between coil and contact is 5KVAC

• Durable up to 10M cycles

• Flux proofed type

• Environmental friendly product

Applications


• Used as a control device

• Automotive industry
