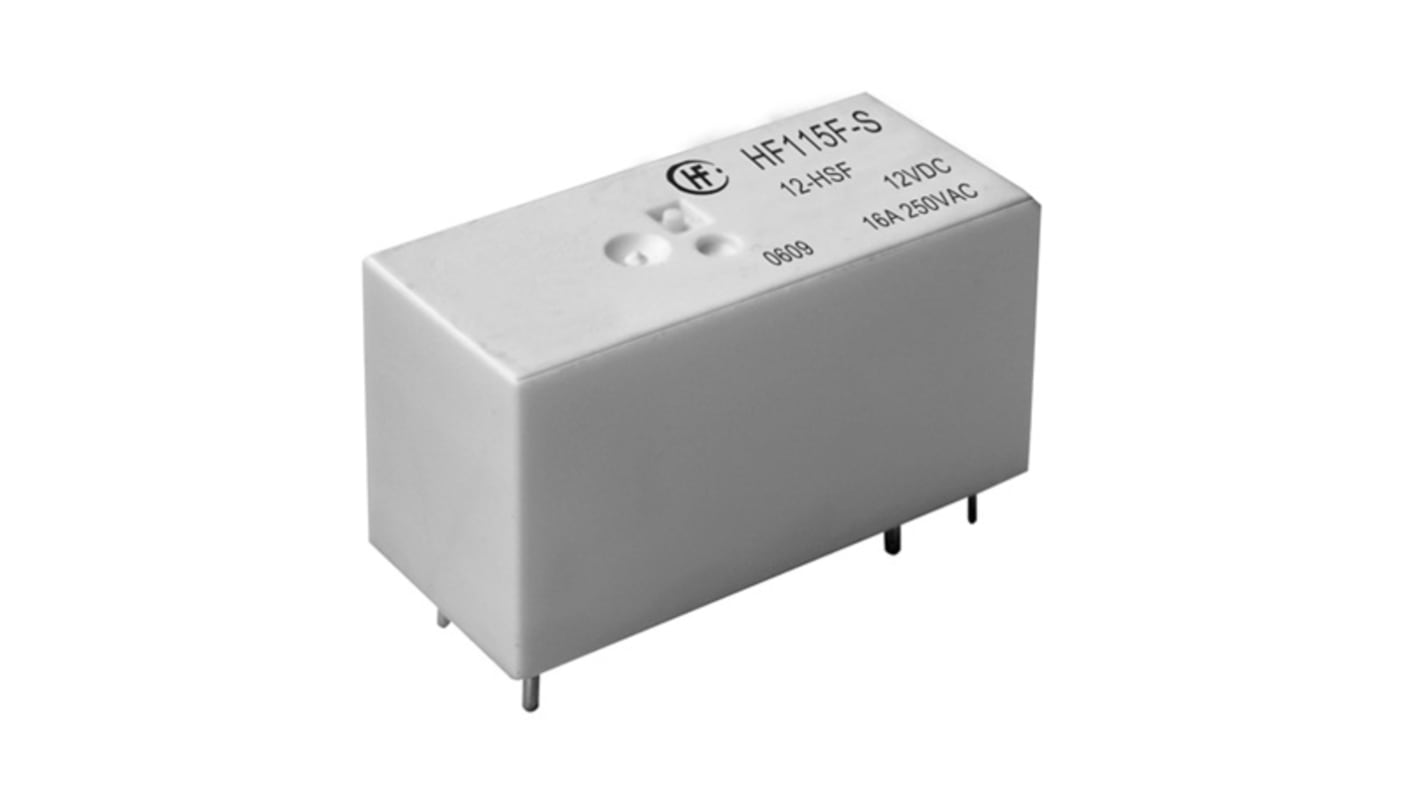

Hongfa Europe GMBH PCB Power Relay, 24V Coil, 16A Switching Current, 1 NO
- RS Stock No.:
- 176-2801
- Mfr. Part No.:
- HF115F-S/24-HF
- Brand:
- Hongfa Europe GMBH
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 176-2801
- Mfr. Part No.:
- HF115F-S/24-HF
- Brand:
- Hongfa Europe GMBH
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hongfa Europe GMBH | |
| Product Type | Power Relay | |
| Coil Voltage | 24V | |
| Contact Configuration | 1 NO | |
| Mount Type | PCB | |
| Series | HF115F-S | |
| Terminal Type | PCB Pin | |
| Switching Current | 16A | |
| Switching Power | 4kVA | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 440V ac | |
| Coil Resistance | 1.4kΩ | |
| Maximum Operating Temperature | 85°C | |
| Coil Power | 400mW | |
| Length | 29mm | |
| Width | 12.7mm | |
| Standards/Approvals | RoHS | |
| Height | 15.7mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Hongfa Europe GMBH | ||
Product Type Power Relay | ||
Coil Voltage 24V | ||
Contact Configuration 1 NO | ||
Mount Type PCB | ||
Series HF115F-S | ||
Terminal Type PCB Pin | ||
Switching Current 16A | ||
Switching Power 4kVA | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 440V ac | ||
Coil Resistance 1.4kΩ | ||
Maximum Operating Temperature 85°C | ||
Coil Power 400mW | ||
Length 29mm | ||
Width 12.7mm | ||
Standards/Approvals RoHS | ||
Height 15.7mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- CN
Special contact struction
Incandescent lamp load: 3000W 230VAC
5kV dielectric strength (between coil and contacts)
Creepage distance: 10mm
Low height: 15.7 mm
Meeting reinforce insulation
Plastic sealed and flux proofed types available
Environmental friendly product
Outline Dimensions: (29.0 x 12.7 x 15.7) mm
