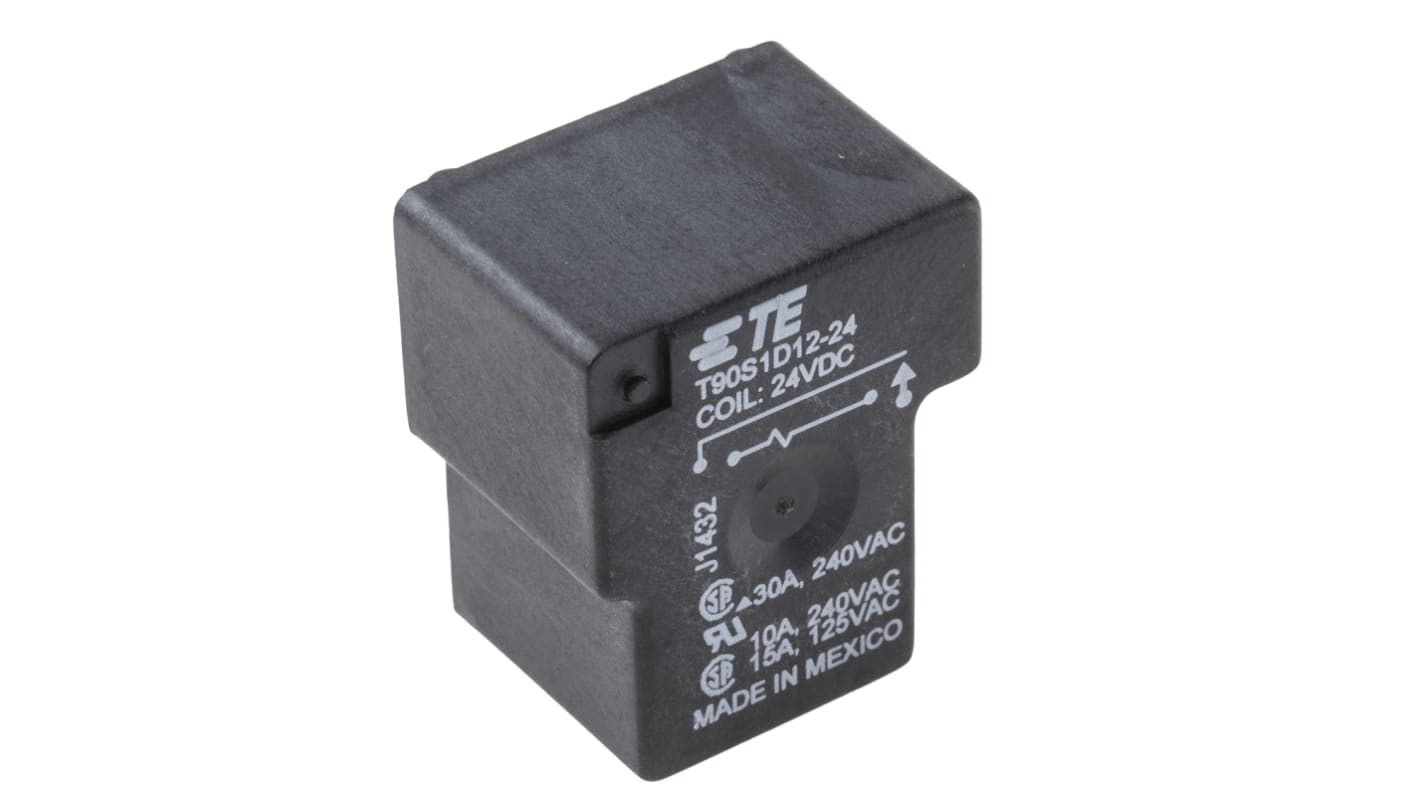

TE Connectivity PCB Mount Non-Latching Relay, 24V dc Coil, 30A Switching Current, SPST

View all Power Relays
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
164-0201
Mfr. Part No.:
T90S1D12-24=T90
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Coil Voltage

24V dc

Contact Configuration

SPST

Mounting Type

PCB Mount

Switching Current

30A

Number of Poles

1

Terminal Type

Through Hole

Length

32.26mm

Coil Resistance

660 Ω

Series

T90

Minimum Operating Temperature

-55°C

Height

20.4mm

Contact Material

Silver Alloy

Depth

27.4mm

Maximum Operating Temperature

+85°C

Application

Power

COO (Country of Origin):
US

T90 Series


PCB Relay
Up to 30A Switching in SPST & 20A in SPDT
Silver cadmium oxide contacts
Available as an open frame relay, with a snap-on dust cover or with an immersion cleanable sealed case
Operational Temperature Range: -55 → +85°C
