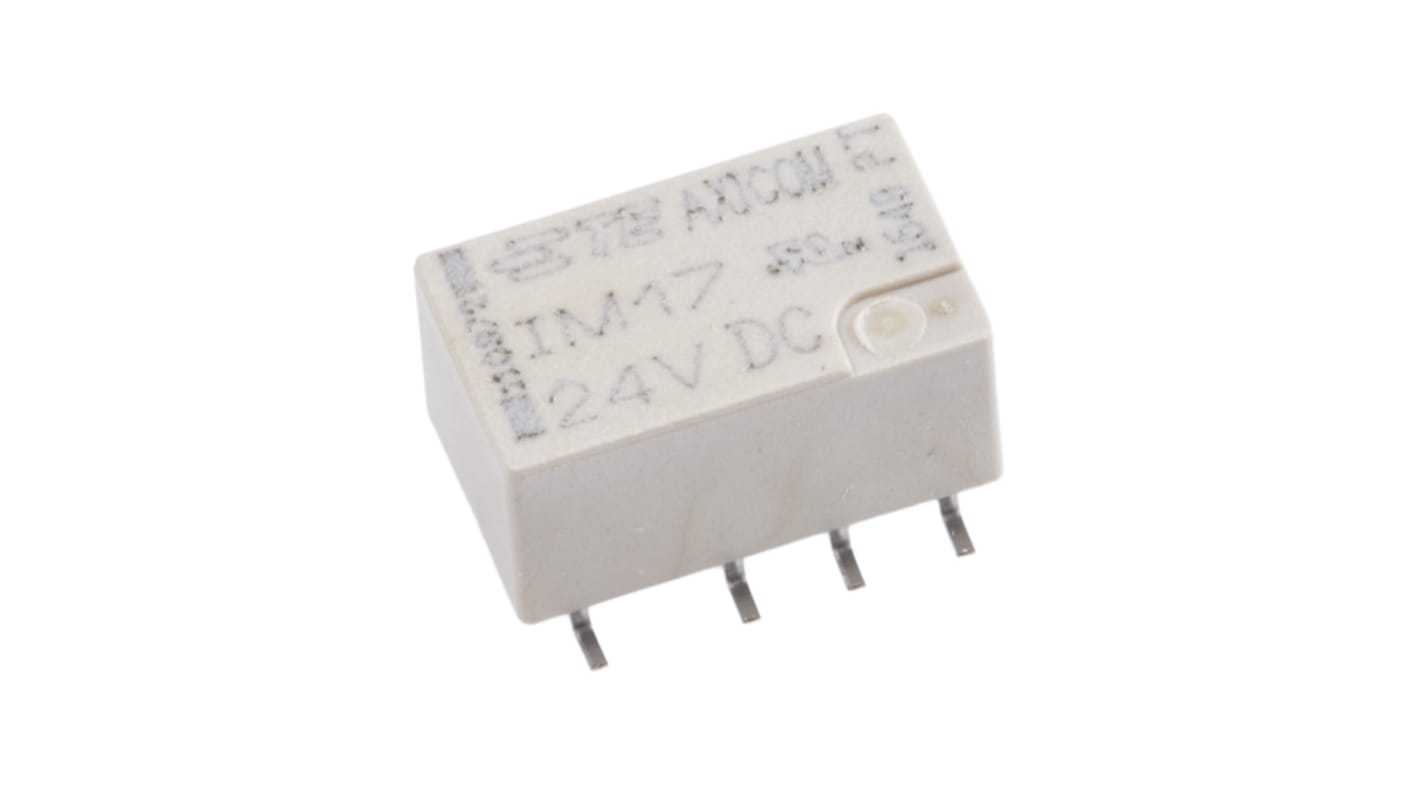

TE Connectivity PCB Mount Non-Latching Relay, 24V dc Coil, 2A Switching Current, DPDT
- RS Stock No.:
- 136-1640
- Mfr. Part No.:
- IM17GR
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (On a Reel of 1000)
£2.116
(exc. VAT)
£2.539
(inc. VAT)
- RS Stock No.:
- 136-1640
- Mfr. Part No.:
- IM17GR
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 2A | |
| Terminal Type | Surface Mount | |
| Length | 10mm | |
| Coil Resistance | 4.12 kΩ | |
| Coil Power | 140mW | |
| Depth | 7.5mm | |
| Contact Material | Gold Plated | |
| Minimum Operating Temperature | -40°C | |
| Height | 5.65mm | |
| Maximum Operating Temperature | +85°C | |
| Maximum Switching Power AC | 62.5VA | |
| Maximum Switching Power DC | 60 W | |
| Application | Signal | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 2A | ||
Terminal Type Surface Mount | ||
Length 10mm | ||
Coil Resistance 4.12 kΩ | ||
Coil Power 140mW | ||
Depth 7.5mm | ||
Contact Material Gold Plated | ||
Minimum Operating Temperature -40°C | ||
Height 5.65mm | ||
Maximum Operating Temperature +85°C | ||
Maximum Switching Power AC 62.5VA | ||
Maximum Switching Power DC 60 W | ||
Application Signal | ||
- COO (Country of Origin):
- CZ
Telecom/Signal Relay IM Series
Slimline and low profile - 10x6x5.65 mm
Gull wing SMT legs
Bifurcated contacts, gold plated
Hermetically sealed (RT V), IP67
High mechanical shock resistance up to 300G functional, 500G survival
Insulation resistance at 500Vdc >109Ω
High surge capability - meets Telcordia TR-NWT-001089 (2 / 10 μs) & EC 60950 (10 / 700 μs)
Gull wing SMT legs
Bifurcated contacts, gold plated
Hermetically sealed (RT V), IP67
High mechanical shock resistance up to 300G functional, 500G survival
Insulation resistance at 500Vdc >109Ω
High surge capability - meets Telcordia TR-NWT-001089 (2 / 10 μs) & EC 60950 (10 / 700 μs)
Approvals
UL
