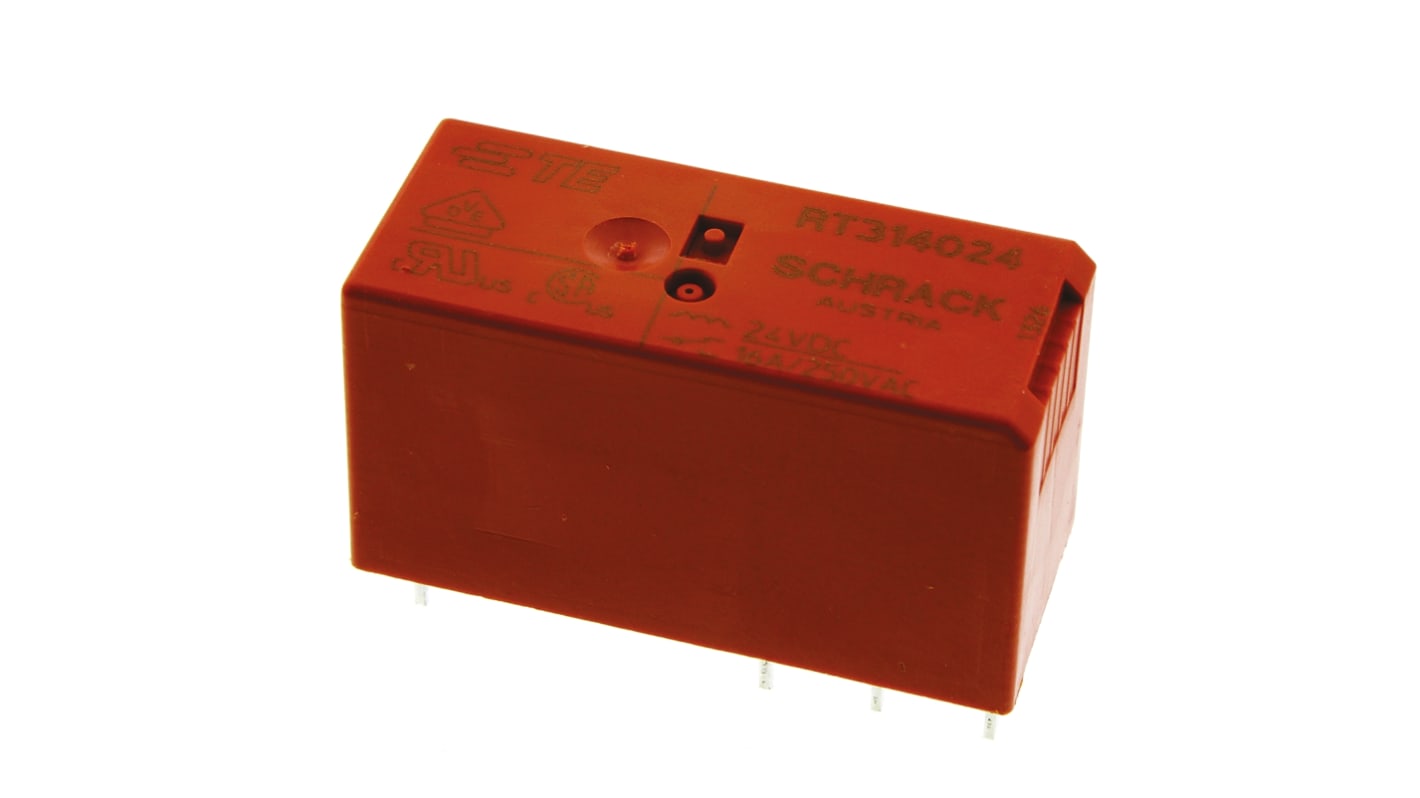

TE Connectivity PCB Power Relay, 24V dc Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 135-4660
- Mfr. Part No.:
- RT314024 9-1393239-8
- Brand:
- TE Connectivity
Bulk discount available
View bulk pricing optionsSubtotal (1 box of 20 units)*
£69.56
(exc. VAT)
£83.48
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 340 unit(s) ready to ship
- Plus 100 unit(s) ready to ship from another location
- Plus 13,360 unit(s) shipping from 01 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 20 - 20 | £3.478 | £69.56 |
| 40 - 80 | £3.304 | £66.08 |
| 100 - 180 | £2.956 | £59.12 |
| 200 - 480 | £2.608 | £52.16 |
| 500 + | £2.261 | £45.22 |
*price indicative
- RS Stock No.:
- 135-4660
- Mfr. Part No.:
- RT314024 9-1393239-8
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPDT | |
| Mount Type | PCB | |
| Series | RT1 | |
| Terminal Type | Solder | |
| Switching Current | 16A | |
| Switching Power | 4kVA | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 400V ac | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 1.4kΩ | |
| Coil Power | 400mW | |
| Length | 29mm | |
| Height | 15.7mm | |
| Width | 12.7mm | |
| Standards/Approvals | VDE, cULus | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Product Type Power Relay | ||
Contact Configuration SPDT | ||
Mount Type PCB | ||
Series RT1 | ||
Terminal Type Solder | ||
Switching Current 16A | ||
Switching Power 4kVA | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 400V ac | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 1.4kΩ | ||
Coil Power 400mW | ||
Length 29mm | ||
Height 15.7mm | ||
Width 12.7mm | ||
Standards/Approvals VDE, cULus | ||
Contact Material Silver Nickel Alloy | ||
RoHS Status: Exempt
- COO (Country of Origin):
- AT
TE Connectivity Non-latching Relay
The TE Connectivity RT1 series PCB mount non-latching relay has contact configuration of SPDT. It is actuated with 24VDC coil voltage and 12A switching current. This relay has a cadmium-free contact and one or two changeover contact. This general-purpose power relay has pinning of 5mm.
Features and Benefits
Coil resistance is 1.44Kohm
Waveflow soldering version
Contact material is silver nickel (AgNi)
Creepage and clearance between contact and coil is ≥10/10mm
Operating temperature ranges between -40°C and 85°C
Flux resistant
Through hole terminal type
Applications
Boiler control
Timers
Garage door control
POS automation
Interface modules
Certifications
UL approved
