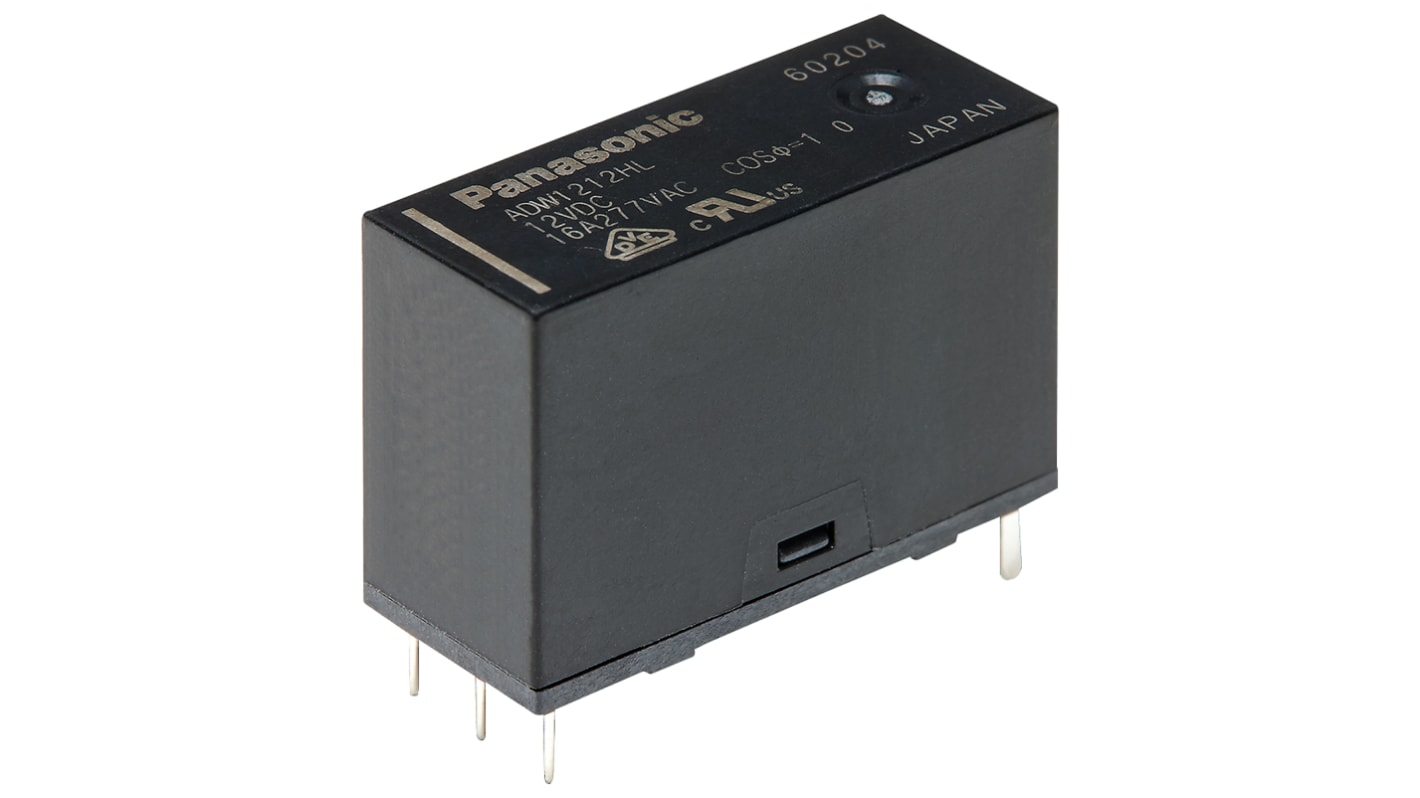

Panasonic PCB Mount Latching Power Relay, 12V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 134-7946
- Mfr. Part No.:
- ADW1212HLW
- Brand:
- Panasonic
49 In stock - FREE next working day delivery available
Added
Price Each
£3.15
(exc. VAT)
£3.78
(inc. VAT)
| Units | Per unit |
| 1 + | £3.15 |
- RS Stock No.:
- 134-7946
- Mfr. Part No.:
- ADW1212HLW
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
DW (ADW1) Latching Relays
Introducing the Panasonic DW (ADW1) Series of Polarised Power Relays. The relays feature up to 16 A @ 277 V ac switching capacity. These relays are of compact size, can run at a high operating power and are highly reliable and robust under stressful operating conditions. The DW Relays can be used in various industries and applications: Appliances and white goods, energy, lighting and industrial.
Features and Benefits
• Can run at a high operating temperature
• Robust under stressful operating conditions
• Compact size
• Highly reliable
• Higher capacity switching in the same size package
• Robust under stressful operating conditions
• Compact size
• Highly reliable
• Higher capacity switching in the same size package
Applications:
• Lighting Controls
• Smart Meters
• Power Supplies
• Refrigerators, Washing Machines
• Smart Meters
• Power Supplies
• Refrigerators, Washing Machines
Industries:
• Appliances and White Goods
• Industrial
• Energy
• Lighting
• Industrial
• Energy
• Lighting
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | SPST |
| Mounting Type | PCB Mount |
| Switching Current | 16A |
| Number of Poles | 1 |
| Latching | Yes |
| Terminal Type | PCB Pin |
| Maximum Switching Voltage AC | 277V |
| Length | 24mm |
| Coil Resistance | 360Ω |
| Coil Power | 400mW |
| Depth | 10mm |
| Life | Minimum of 1000000 (Mechanical) operations, Minimum of 20000 (Electrical) operations |
| Isolation Coil To Contact | 5kVrms |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -40°C |
| Height | 15.8mm |
| Standards Met | CSA, cUL, cULus, PTI 325V, TV-8, UL, VDE |
| Contact Material | Silver Alloy |
| Maximum Switching Power AC | 4.432 kVA |
| Application | Home Appliances, Industrial Equipment, Lighting Control Equipment, Security Equipment, Smart Meters, Various Power Supplies |
| Dimensions | 24 x 10 x 15.8mm |
