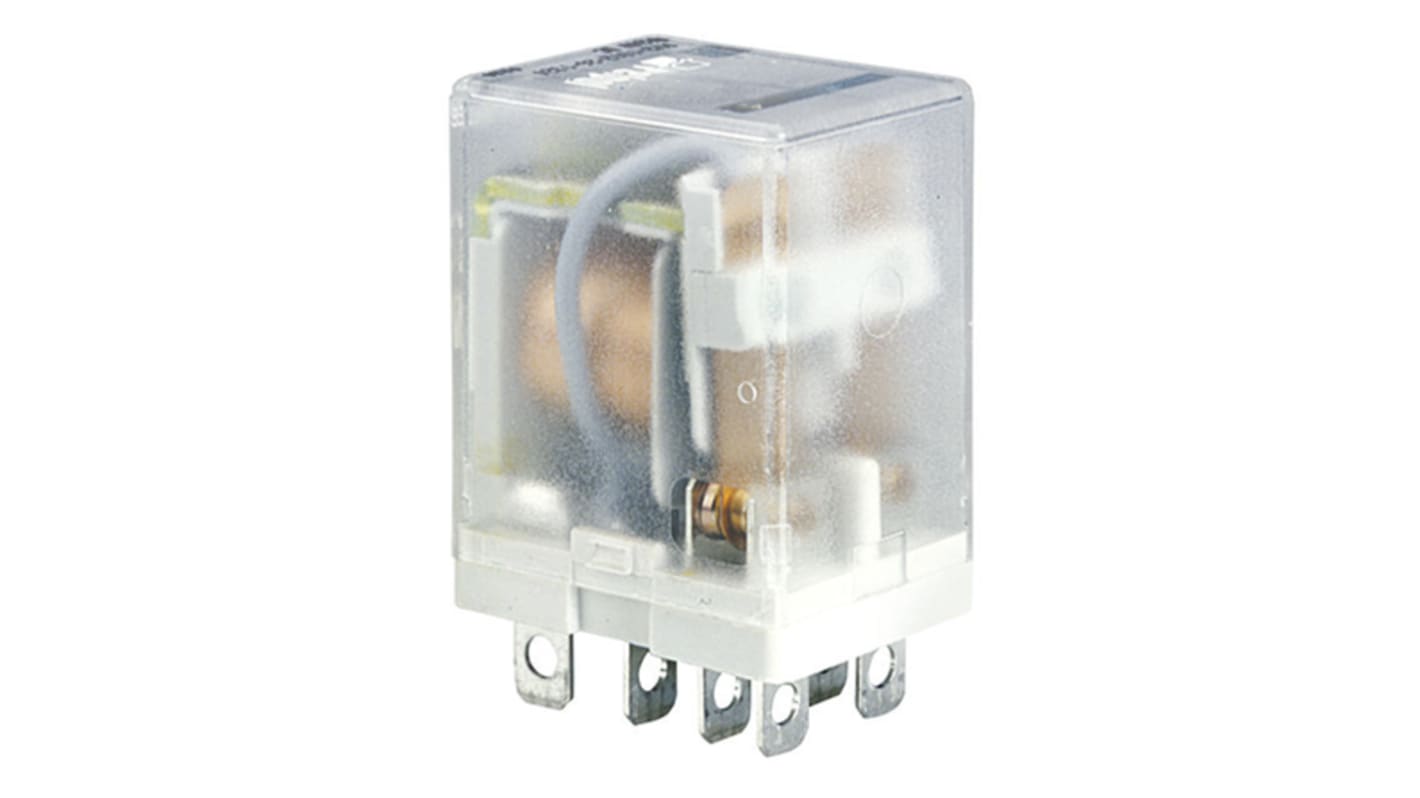

Relpol Plug In Power Relay, 24V ac Coil, 12A Switching Current, DPDT
- RS Stock No.:
- 123-2096
- Mfr. Part No.:
- RY2-1012-26-5024
- Brand:
- Relpol
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 123-2096
- Mfr. Part No.:
- RY2-1012-26-5024
- Brand:
- Relpol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Relpol | |
| Coil Voltage | 24V ac | |
| Contact Configuration | DPDT | |
| Mounting Type | Plug In | |
| Switching Current | 12A | |
| Number of Poles | 2 | |
| Latching | No | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 440V | |
| Maximum Switching Voltage DC | 30V | |
| Length | 27.5mm | |
| Coil Resistance | 158Ω | |
| Coil Power | 1.6W | |
| Isolation Coil To Contact | 2.5kV ac | |
| Maximum Operating Temperature | +55°C | |
| Contact Material | Silver Alloy | |
| Standards Met | CE, cULus, EAC | |
| Life | >100000 (Electrical) cycles, >10000000 (Mechanical) cycles | |
| Height | 34.5mm | |
| Depth | 21.1mm | |
| Minimum Operating Temperature | -40°C | |
| Series | RY2 | |
| Maximum Switching Power AC | 3 kVA | |
| Application | General Purpose | |
Select all | ||
|---|---|---|
Brand Relpol | ||
Coil Voltage 24V ac | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 12A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 440V | ||
Maximum Switching Voltage DC 30V | ||
Length 27.5mm | ||
Coil Resistance 158Ω | ||
Coil Power 1.6W | ||
Isolation Coil To Contact 2.5kV ac | ||
Maximum Operating Temperature +55°C | ||
Contact Material Silver Alloy | ||
Standards Met CE, cULus, EAC | ||
Life >100000 (Electrical) cycles, >10000000 (Mechanical) cycles | ||
Height 34.5mm | ||
Depth 21.1mm | ||
Minimum Operating Temperature -40°C | ||
Series RY2 | ||
Maximum Switching Power AC 3 kVA | ||
Application General Purpose | ||
- COO (Country of Origin):
- PL
RY2 Series Power Relay and Accessories
Professional range of power relays and accessories from the RY2 series.
DPCO Power Relay
4.8 mm Faston Connections
Contact Material: AgNi
IP40 rated
4.8 mm Faston Connections
Contact Material: AgNi
IP40 rated
Note
RY2 Relay Socket - 914-4001
