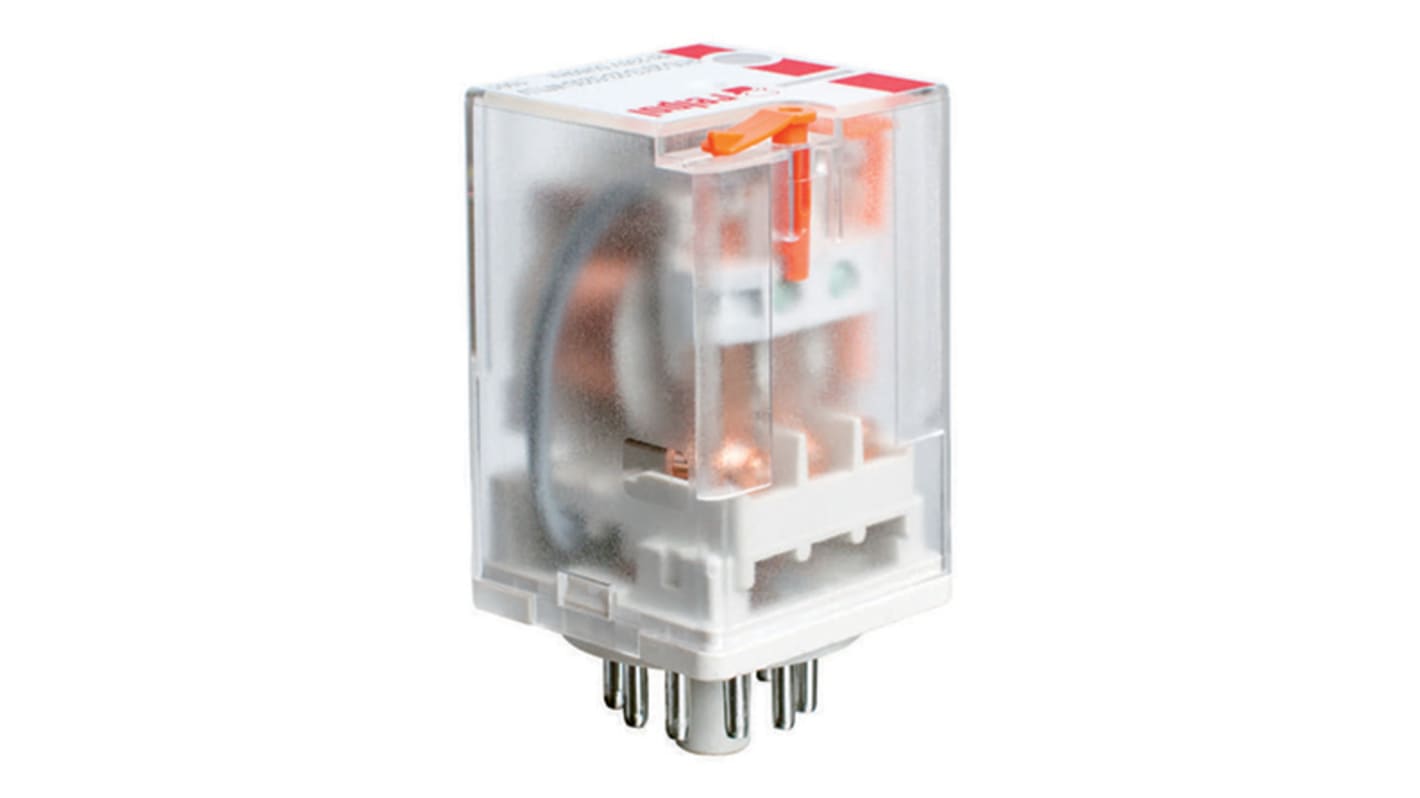

Relpol Power Relay, 110V ac Coil, 10A Switching Current, 3PDT
- RS Stock No.:
- 123-2075
- Mfr. Part No.:
- R15-2013-23-5110-WTL
- Brand:
- Relpol
Subtotal (1 unit)*
£38.38
(exc. VAT)
£46.06
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 48 unit(s) shipping from 17 August 2026
- Plus 40 unit(s) shipping from 18 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £38.38 |
*price indicative
- RS Stock No.:
- 123-2075
- Mfr. Part No.:
- R15-2013-23-5110-WTL
- Brand:
- Relpol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Relpol | |
| Product Type | Power Relay | |
| Coil Voltage | 110V ac | |
| Contact Configuration | 3PDT | |
| Series | R15 | |
| Terminal Type | Plug-In | |
| Switching Current | 10A | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 24V dc | |
| Switching Power | 2.5kVA | |
| Switching AC Voltage | 24V ac | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | CE, EAC | |
| Width | 35mm | |
| Length | 35mm | |
| Height | 54.4mm | |
| Coil Power | 2.8W | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand Relpol | ||
Product Type Power Relay | ||
Coil Voltage 110V ac | ||
Contact Configuration 3PDT | ||
Series R15 | ||
Terminal Type Plug-In | ||
Switching Current 10A | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 24V dc | ||
Switching Power 2.5kVA | ||
Switching AC Voltage 24V ac | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals CE, EAC | ||
Width 35mm | ||
Length 35mm | ||
Height 54.4mm | ||
Coil Power 2.8W | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- PL
Relpol Miniature Industrial Relays
R2N, R3N and R4N series miniature industrial relays for general applications. All relays are designed for mounting in plug-in sockets with WT features as standard (W - mechanical indicator + T - lockable front test button). Accessories include retainer clips and connection strips.
R2N (2 CO), R3N (3 CO) and R4N (4 CO)
Miniature dimensions
Cadmium-free contacts
AC and DC coils
Relays may be provided with test buttons (non latching) and plugs
RoHS compliant
