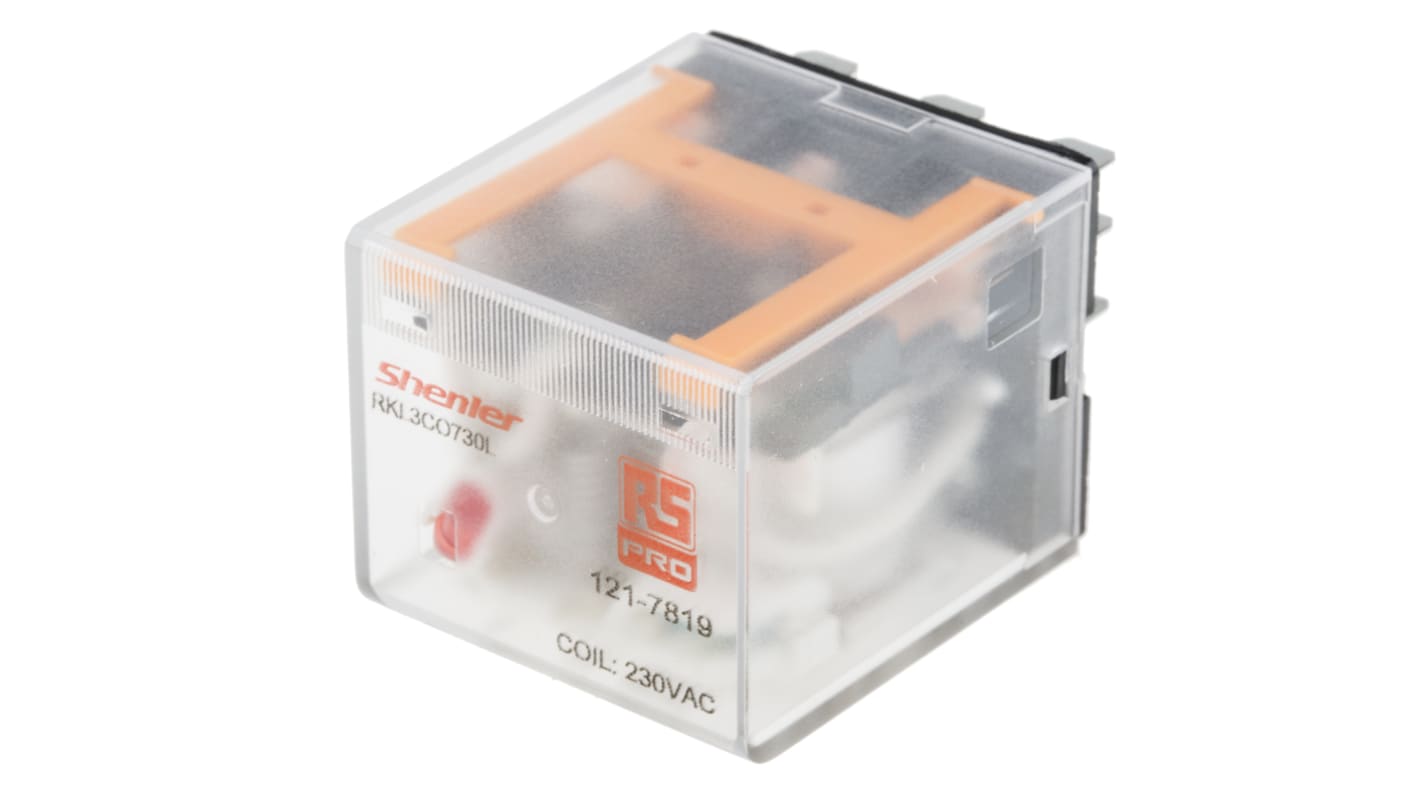

RS PRO Plug In Power Relay, 230V ac Coil, 10A Switching Current, 3PDT
- RS Stock No.:
- 121-7819
- Brand:
- RS PRO
Discontinued
- RS Stock No.:
- 121-7819
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 230V ac | |
| Contact Configuration | 3PDT | |
| Mounting Type | Plug In | |
| Switching Current | 10A | |
| Number of Poles | 3 | |
| Latching | No | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 30V dc | |
| Length | 31.5mm | |
| Coil Power | 300W | |
| Life | 100000 (Electrical) cycles, 10000000 (Mechanical) cycles | |
| Isolation Coil To Contact | 2kV ac | |
| Maximum Operating Temperature | +55°C | |
| Height | 36.5mm | |
| Minimum Operating Temperature | -25°C | |
| Contact Material | Silver Alloy | |
| Standards Met | CE, CQC, CULus, RoHS Compliant | |
| Depth | 28mm | |
| Maximum Switching Power DC | 1.4 W | |
| Maximum Switching Power AC | 2VA | |
| Application | General Purpose | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 230V ac | ||
Contact Configuration 3PDT | ||
Mounting Type Plug In | ||
Switching Current 10A | ||
Number of Poles 3 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 30V dc | ||
Length 31.5mm | ||
Coil Power 300W | ||
Life 100000 (Electrical) cycles, 10000000 (Mechanical) cycles | ||
Isolation Coil To Contact 2kV ac | ||
Maximum Operating Temperature +55°C | ||
Height 36.5mm | ||
Minimum Operating Temperature -25°C | ||
Contact Material Silver Alloy | ||
Standards Met CE, CQC, CULus, RoHS Compliant | ||
Depth 28mm | ||
Maximum Switching Power DC 1.4 W | ||
Maximum Switching Power AC 2VA | ||
Application General Purpose | ||
- COO (Country of Origin):
- CN
RS Pro RKL Series 3PCO Relays
RS Pro RKL series 3 pole miniature power relays with LED indicator can be used to increase the functions in electrical enclosures, useful for industrial applications, machine building and HVAC.
3 Pole 10A industrial plug-in relays
LED indicator
Gold plated contacts
Lockable test button and inspection window
Bases for assembly on DIN Rail to be ordered separately
LED indicator
Gold plated contacts
Lockable test button and inspection window
Bases for assembly on DIN Rail to be ordered separately
