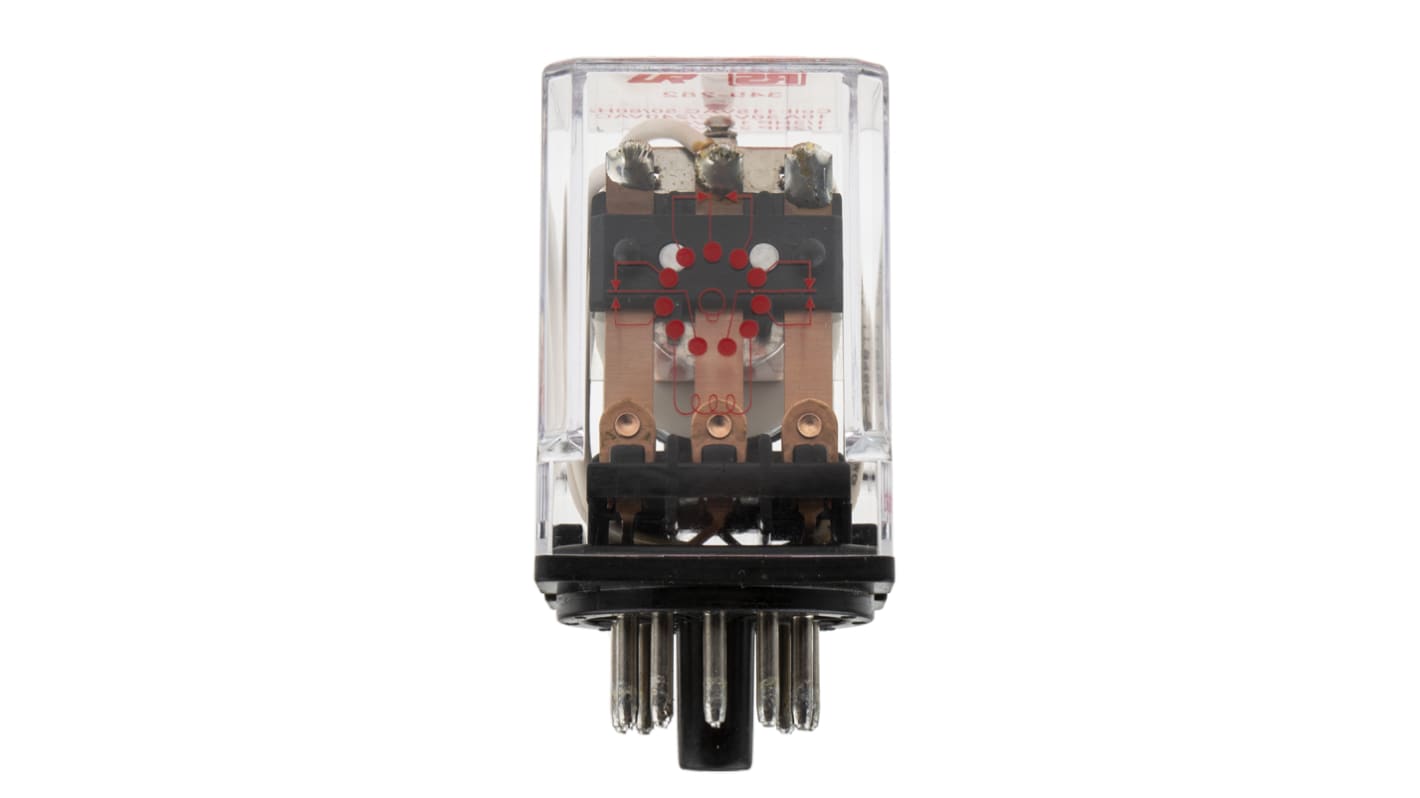

RS PRO Plug In Power Relay, 115V ac Coil, 10A Switching Current, 3PDT
- RS Stock No.:
- 349-282
- Brand:
- RS PRO
Subtotal (1 unit)*
£10.93
(exc. VAT)
£13.12
(inc. VAT)
FREE delivery for orders over £50.00
- 323 unit(s) ready to ship
- Plus 14 unit(s) ready to ship from another location
Units | Per unit |
---|---|
1 - 4 | £10.93 |
5 - 9 | £10.59 |
10 + | £10.15 |
*price indicative
- RS Stock No.:
- 349-282
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Coil Voltage | 115V ac | |
Contact Configuration | 3PDT | |
Mounting Type | Plug In | |
Switching Current | 10A | |
Number of Poles | 3 | |
Latching | No | |
Terminal Type | Through Hole | |
Maximum Switching Voltage AC | 240V ac | |
Maximum Switching Voltage DC | 30V dc | |
Length | 35mm | |
Coil Resistance | 2000Ω | |
Coil Power | 2.75W | |
Standards Met | CUR E125370, UL E125370 | |
Height | 56mm | |
Depth | 35mm | |
Life | 10000000 (Mechanical) cycles | |
Maximum Operating Temperature | +55°C | |
Isolation Coil To Contact | 1.5kV ac | |
Minimum Operating Temperature | -45°C | |
Contact Material | Silver Alloy | |
Maximum Switching Power AC | 2.4 kVA | |
Maximum Switching Power DC | 300 W | |
Application | Power | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Coil Voltage 115V ac | ||
Contact Configuration 3PDT | ||
Mounting Type Plug In | ||
Switching Current 10A | ||
Number of Poles 3 | ||
Latching No | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 240V ac | ||
Maximum Switching Voltage DC 30V dc | ||
Length 35mm | ||
Coil Resistance 2000Ω | ||
Coil Power 2.75W | ||
Standards Met CUR E125370, UL E125370 | ||
Height 56mm | ||
Depth 35mm | ||
Life 10000000 (Mechanical) cycles | ||
Maximum Operating Temperature +55°C | ||
Isolation Coil To Contact 1.5kV ac | ||
Minimum Operating Temperature -45°C | ||
Contact Material Silver Alloy | ||
Maximum Switching Power AC 2.4 kVA | ||
Maximum Switching Power DC 300 W | ||
Application Power | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
RS PRO Coil Non-Latching Relay, 3PDT, 10 A Switching Current, 115 V AC, Plug In, 3 Pole
A robust polycarbonate housing protects the relay against dirt, moisture and wear. Its silver contacts are gold-plated to increase durability and extend the life of the device.
As part of the RS PRO range, this product has been tested for safety and quality. This type of non-latching relay is commonly used for telecommunications and medical equipment.
Features and Benefits
- Coil power of 2.75 W
- Coil resistance of 2 kΩ
- Coil voltage of 115 V AC
- 3PDT (triple pole double throw) contact configuration
- Silver alloy contact material
- Depth and length of 35 mm
- Height of 56 mm
- Isolation coil to contact of 1.5 kV AC
- Mechanical life of 10 million cycles
- Operating temperature range of -45ºC to +55ºC
- Maximum switching power of 2.4 kVA (AC) and 300 W (DC)
- Maximum switching voltage of 240 V (AC) and 30 V (DC)
- Plug-in mounting type
- Three poles
- Meets CUR and UL (Underwriters' Laboratories) E125370 standards
- Switching current of 10 A
- Through-hole terminal type
Approvals
