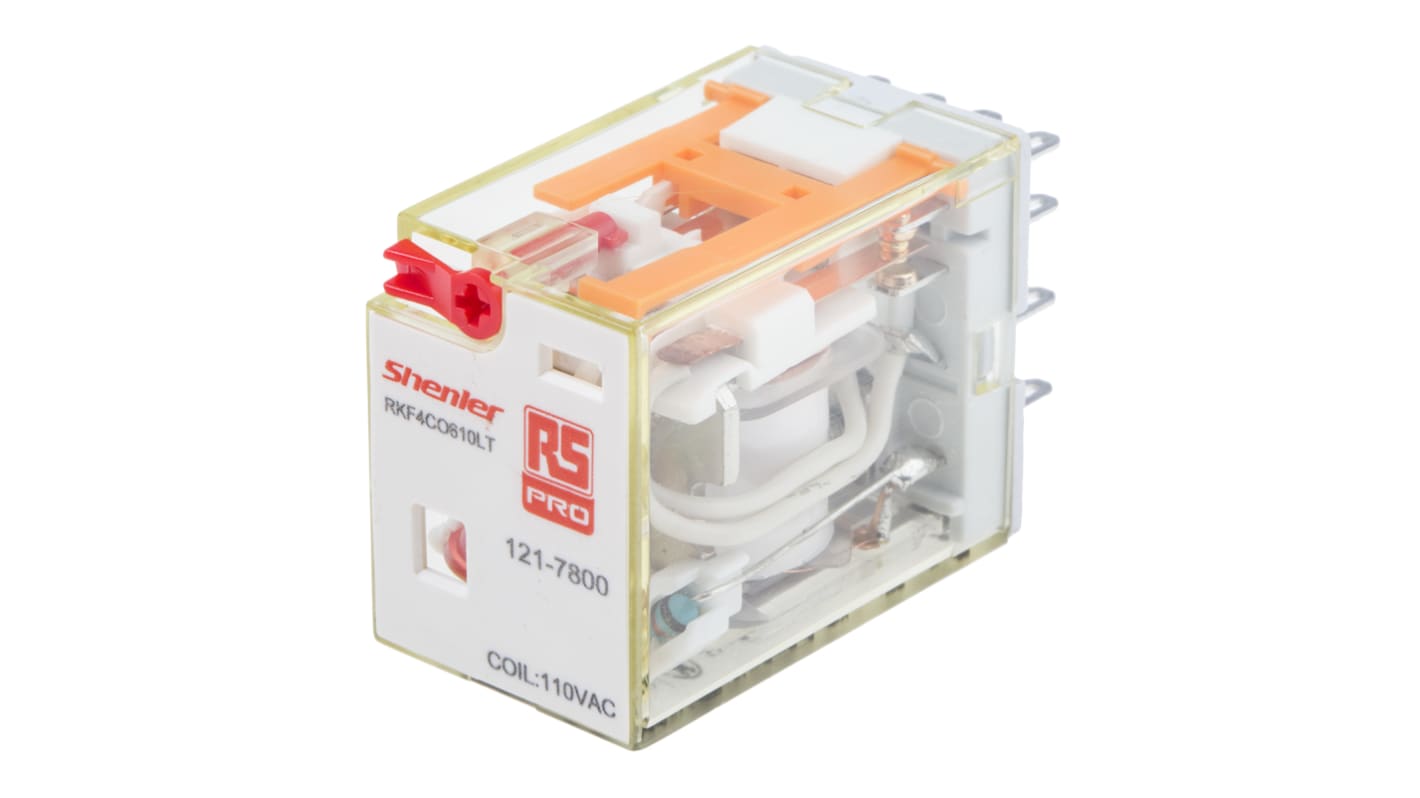

RS PRO Power Relay, 115 V ac Coil, 6 A Switching Current, 4PDT
- RS Stock No.:
- 121-7800
- Brand:
- RS PRO
Subtotal (1 unit)*
£9.94
(exc. VAT)
£11.93
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £9.94 |
*price indicative
- RS Stock No.:
- 121-7800
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 115 V ac | |
| Product Type | Power Relay | |
| Contact Configuration | 4PDT | |
| Series | RKF | |
| Terminal Type | Plug-In | |
| Switching Current | 6 A | |
| Switching DC Voltage | 30 V dc | |
| Switching AC Voltage | 30 V ac | |
| Switching Power | 1.5kVA | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 70°C | |
| Height | 36mm | |
| Width | 21.5 mm | |
| Length | 28mm | |
| Coil Power | 180W | |
| Standards/Approvals | CE, RoHS | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 50mΩ | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 115 V ac | ||
Product Type Power Relay | ||
Contact Configuration 4PDT | ||
Series RKF | ||
Terminal Type Plug-In | ||
Switching Current 6 A | ||
Switching DC Voltage 30 V dc | ||
Switching AC Voltage 30 V ac | ||
Switching Power 1.5kVA | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 70°C | ||
Height 36mm | ||
Width 21.5 mm | ||
Length 28mm | ||
Coil Power 180W | ||
Standards/Approvals CE, RoHS | ||
Contact Material Silver Alloy | ||
Contact Resistance 50mΩ | ||
- COO (Country of Origin):
- CN
RS Pro RKF Series 4PCO Relays
RS Pro RKF series 4 pole miniature power relays with LED indicator can be used to increase the functions in electrical enclosures, useful for industrial applications, machine building and HVAC.
4 Pole 6A industrial plug-in relays
LED indicator
Gold plated contacts
Lockable test button and inspection window
Bases for assembly on DIN Rail to be ordered separately
