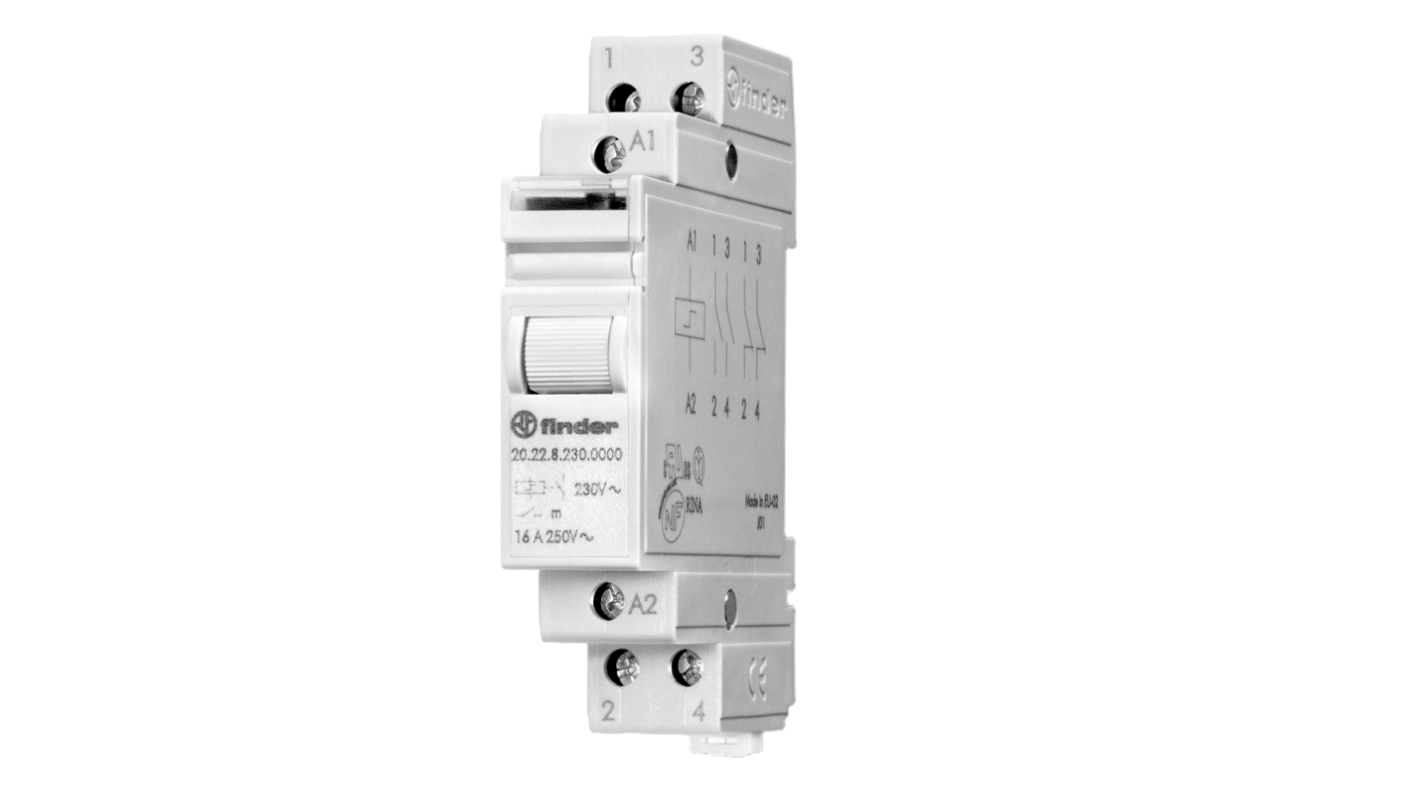

Finder DIN Rail Non-Latching Relay, 230V Coil, 16A Switching Current, 2 NO
- RS Stock No.:
- 652-989
- Mfr. Part No.:
- 20.28.8.230.4000
- Brand:
- Finder
Subtotal (1 unit)*
£39.69
(exc. VAT)
£47.63
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 5 unit(s) shipping from 20 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £39.69 |
*price indicative
- RS Stock No.:
- 652-989
- Mfr. Part No.:
- 20.28.8.230.4000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 230V | |
| Product Type | Non-Latching Relay | |
| Contact Configuration | 2 NO | |
| Mount Type | DIN Rail | |
| Series | 20 | |
| Terminal Type | Screw | |
| Switching Current | 16A | |
| Switching AC Voltage | 400V ac | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 2.5kΩ | |
| Maximum Operating Temperature | 40°C | |
| Coil Power | 6.5VA | |
| Standards/Approvals | CE, EAC, UKCA, UR | |
| Height | 58.4mm | |
| Width | 17.5mm | |
| Length | 87.5mm | |
| Contact Material | Silver Tin Oxide | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 230V | ||
Product Type Non-Latching Relay | ||
Contact Configuration 2 NO | ||
Mount Type DIN Rail | ||
Series 20 | ||
Terminal Type Screw | ||
Switching Current 16A | ||
Switching AC Voltage 400V ac | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 2.5kΩ | ||
Maximum Operating Temperature 40°C | ||
Coil Power 6.5VA | ||
Standards/Approvals CE, EAC, UKCA, UR | ||
Height 58.4mm | ||
Width 17.5mm | ||
Length 87.5mm | ||
Contact Material Silver Tin Oxide | ||
- COO (Country of Origin):
- IT
The Finder Modular Step Relay is a four-sequence switching device designed for centralized lighting control using impulse signals. It features two normally open contacts and supports both AC and DC coil operation, making it suitable for a wide range of residential and commercial applications. With its slim DIN rail profile and compatibility with illuminated pushbuttons, it simplifies installation while offering flexible control logic.
Offers four selectable switching sequences for advanced lighting control
Includes a test button and mechanical indicator for manual override and visual feedback
Supports connection with illuminated pushbuttons via the Type 026.00 adaptor
