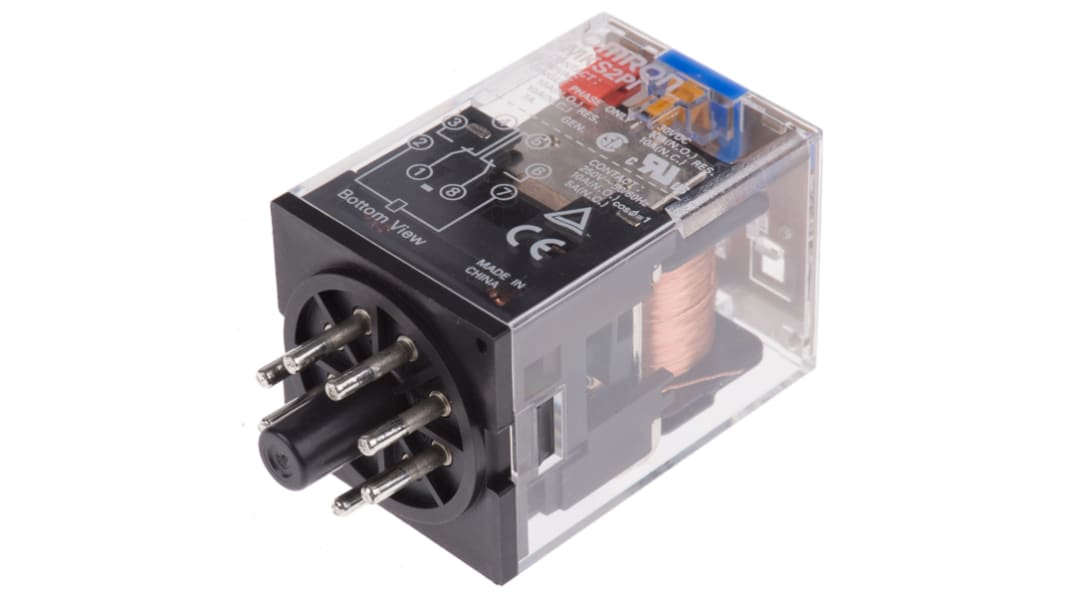

Omron Plug In Power Relay, 12V dc Coil, 10A Switching Current, DPDT
- RS Stock No.:
- 536-887
- Mfr. Part No.:
- MKS2PI DC12
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)**
£9.88
(exc. VAT)
£11.86
(inc. VAT)
19 In stock - FREE next working day delivery available*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Check stock levels
Units | Per unit |
|---|---|
| 1 - 4 | £9.88 |
| 5 - 9 | £9.58 |
| 10 + | £9.16 |
**price indicative
- RS Stock No.:
- 536-887
- Mfr. Part No.:
- MKS2PI DC12
- Brand:
- Omron
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 12V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | Plug In | |
| Switching Current | 10A | |
| Number of Poles | 2 | |
| Latching | No | |
| Terminal Type | Plug In | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 250V dc | |
| Length | 34.5mm | |
| Coil Resistance | 107Ω | |
| Coil Power | 1.4W | |
| Depth | 34.5mm | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | +60°C | |
| Series | MKS | |
| Height | 53.3mm | |
| Maximum Switching Power DC | 300 W | |
| Maximum Switching Power AC | 2.5 kVA | |
| Dimensions | 52.5 x 34.5 x 34.5mm | |
| Application | General Purpose | |
Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 12V dc | ||
Contact Configuration DPDT | ||
Mounting Type Plug In | ||
Switching Current 10A | ||
Number of Poles 2 | ||
Latching No | ||
Terminal Type Plug In | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 250V dc | ||
Length 34.5mm | ||
Coil Resistance 107Ω | ||
Coil Power 1.4W | ||
Depth 34.5mm | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature +60°C | ||
Series MKS | ||
Height 53.3mm | ||
Maximum Switching Power DC 300 W | ||
Maximum Switching Power AC 2.5 kVA | ||
Dimensions 52.5 x 34.5 x 34.5mm | ||
Application General Purpose | ||
