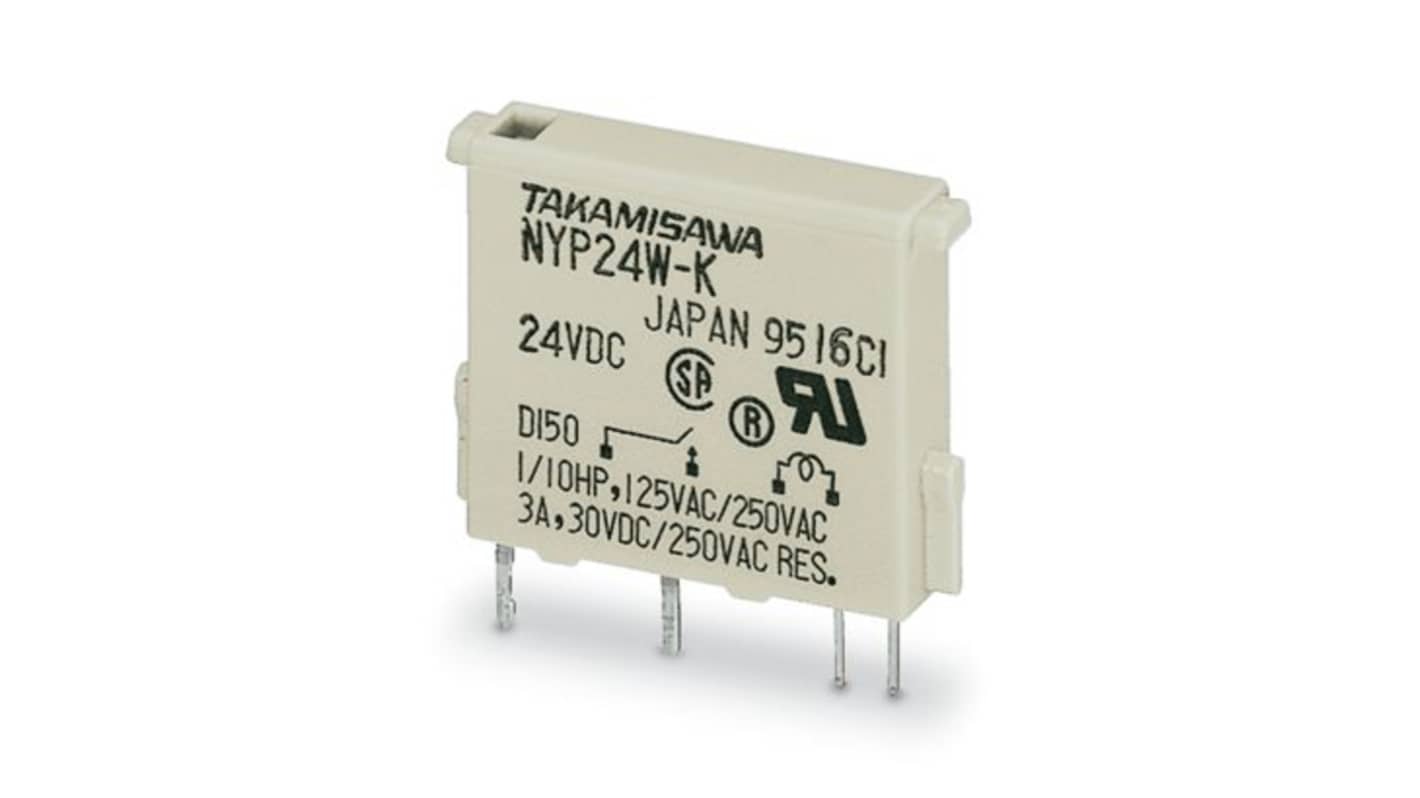

Phoenix Contact Power Relay, 24V dc Coil, 1mA Switching Current, SPST
- RS Stock No.:
- 535-298
- Mfr. Part No.:
- 2961037
- Brand:
- Phoenix Contact
Subtotal (1 pack of 8 units)*
£51.63
(exc. VAT)
£61.96
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 30 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £51.63 | £6.454 |
*price indicative
- RS Stock No.:
- 535-298
- Mfr. Part No.:
- 2961037
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Power Relay | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPST | |
| Series | REL-MR-G 24/1 | |
| Switching Current | 1mA | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 125V dc | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 4.8kΩ | |
| Coil Power | 0.12W | |
| Width | 5mm | |
| Height | 23mm | |
| Standards/Approvals | DIN VDE 0110, EAC Approval ID RU*C-DE.*08.B.00010, IEC 255/DIN VDE 0435 (in relevant parts) | |
| Contact Material | Silver Alloy Gold Plated | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Power Relay | ||
Coil Voltage 24V dc | ||
Contact Configuration SPST | ||
Series REL-MR-G 24/1 | ||
Switching Current 1mA | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 125V dc | ||
Switching AC Voltage 250V ac | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 4.8kΩ | ||
Coil Power 0.12W | ||
Width 5mm | ||
Height 23mm | ||
Standards/Approvals DIN VDE 0110, EAC Approval ID RU*C-DE.*08.B.00010, IEC 255/DIN VDE 0435 (in relevant parts) | ||
Contact Material Silver Alloy Gold Plated | ||
- COO (Country of Origin):
- DE
The Phoenix Contact single relay is designed to deliver exceptional performance and reliability in various applications. Constructed with a pluggable replacement miniature setup, it features a single normally open (N/O) contact and operates at a nominal input voltage of 24 V DC. This product is ideal for users seeking a robust solution that can handle both standard and demanding operational conditions. With a mechanical service life of approximately 20 million cycles, it promises durability and longevity. Additionally, the relay operates efficiently under a wide temperature range, from -40 °C to 85 °C, making it suitable for diverse environments. The compact dimensions ensure easy integration into existing systems, without compromising space or efficiency.
Designed for a mechanical service life of around 20 million cycles
Operates efficiently across a wide ambient temperature range
Features a compact design for seamless integration into various setups
Offers non-polarized drive functionality to enhance versatility
Constructed with high-quality contact materials for improved performance
Key specifications adhere to stringent industry standards
Provides flexible mounting options to suit diverse installation needs
