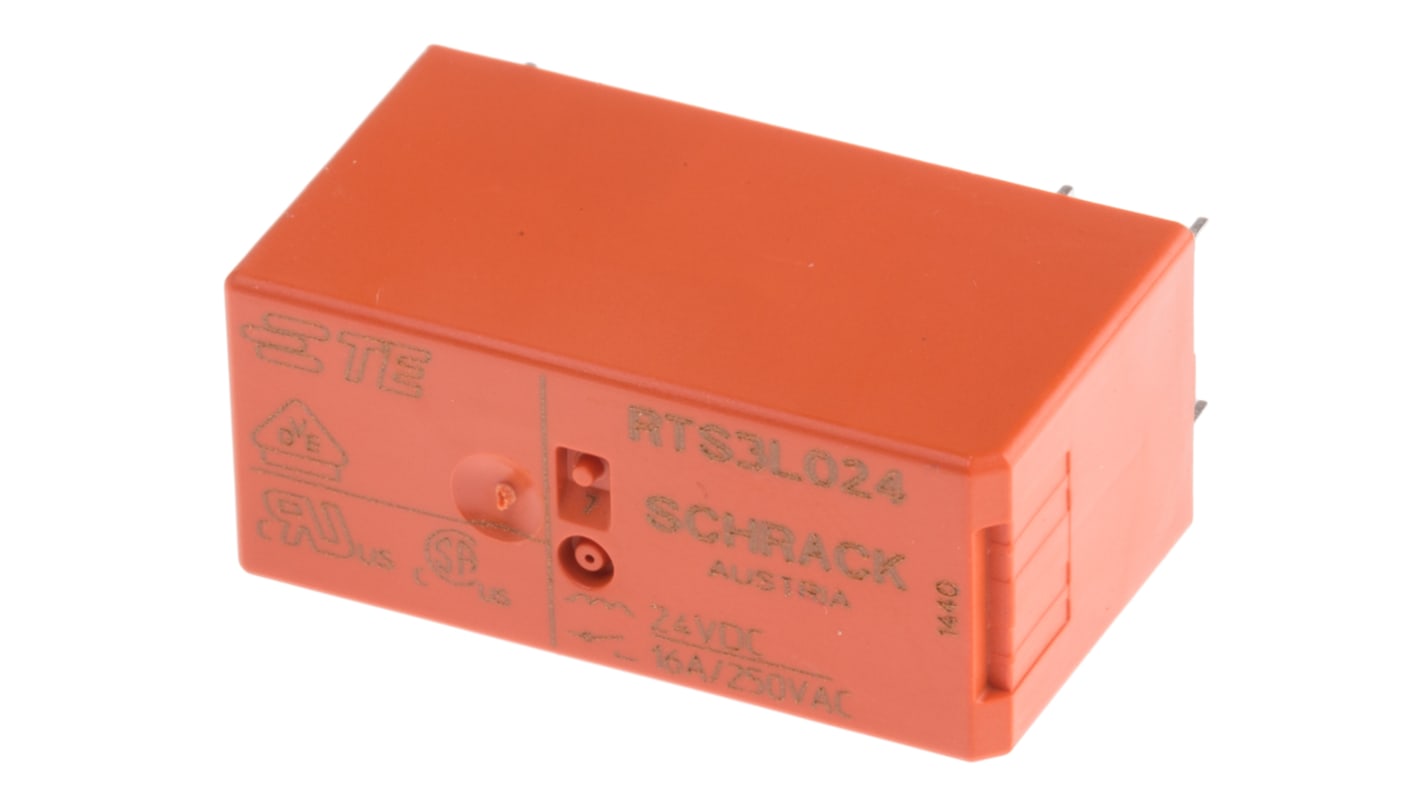

TE Connectivity PCB Power Relay, 24V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 515-549
- Distrelec Article No.:
- 137-20-257
- Mfr. Part No.:
- RTS3L024
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£5.98
(exc. VAT)
£7.18
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 458 unit(s) ready to ship
- Plus 320 unit(s) shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.98 |
*price indicative
- RS Stock No.:
- 515-549
- Distrelec Article No.:
- 137-20-257
- Mfr. Part No.:
- RTS3L024
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 24V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Series | RT-iPower | |
| Terminal Type | Solder | |
| Switching Current | 16A | |
| Switching AC Voltage | 400V ac | |
| Switching Power | 4kVA | |
| Minimum Operating Temperature | -40°C | |
| Coil Resistance | 1.4kΩ | |
| Maximum Operating Temperature | 85°C | |
| Coil Power | 500mW | |
| Length | 29mm | |
| Width | 12.7mm | |
| Height | 16mm | |
| Standards/Approvals | IEC 61810, RoHS | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V dc | ||
Product Type Power Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Series RT-iPower | ||
Terminal Type Solder | ||
Switching Current 16A | ||
Switching AC Voltage 400V ac | ||
Switching Power 4kVA | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 1.4kΩ | ||
Maximum Operating Temperature 85°C | ||
Coil Power 500mW | ||
Length 29mm | ||
Width 12.7mm | ||
Height 16mm | ||
Standards/Approvals IEC 61810, RoHS | ||
Contact Material Silver Alloy | ||
RT1 Series - High Inrush Relays / Bistable
16A @ 250Vac making and breaking capacity acc. to IEC 60669-1
Reinforced insulation
Creepage & clearance 10mm
5mm pinning
Applications include lighting systems, movement sensors, filament and incandescent lamp loads, motors etc
Approvals
UL, CSA, VDE
