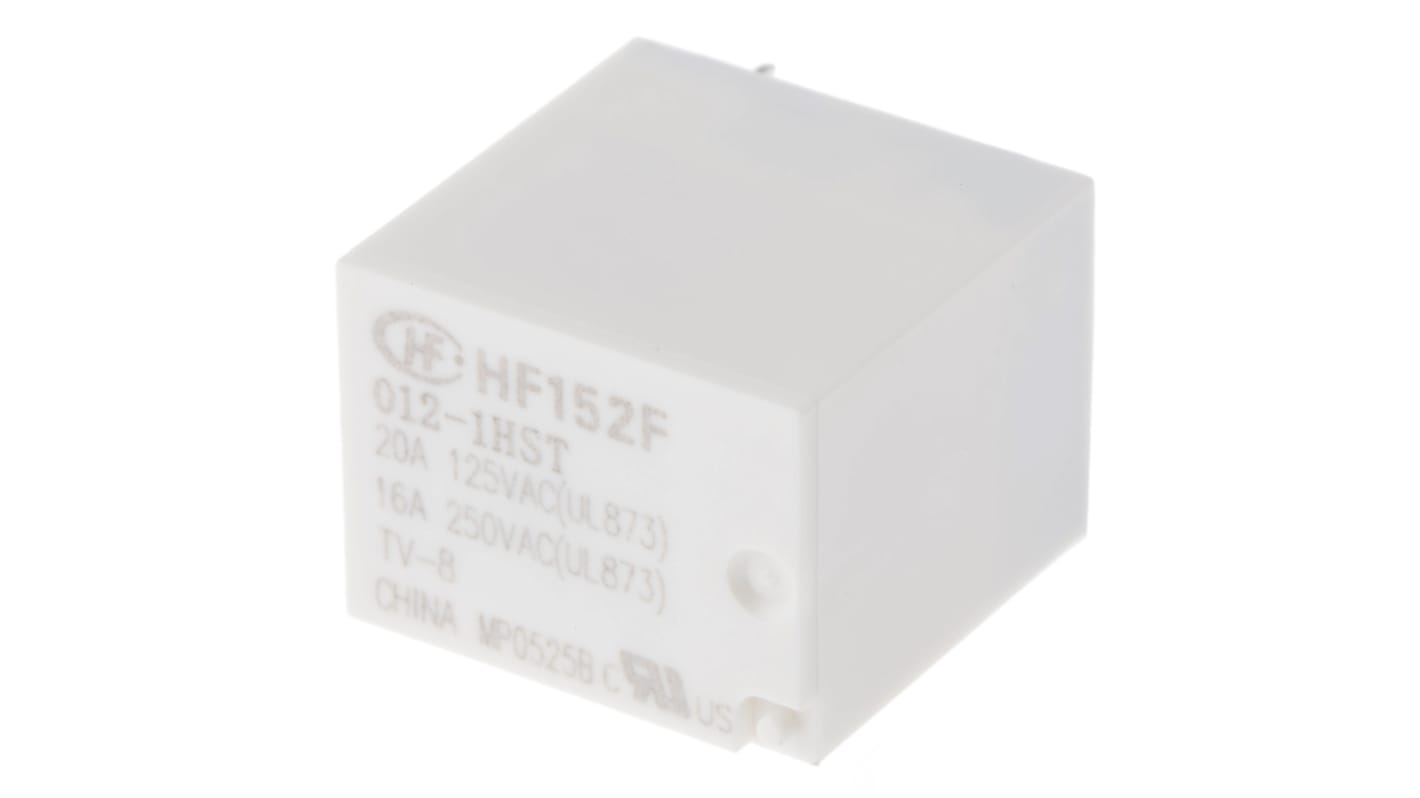

RS PRO PCB Power Relay, 12V dc Coil, 16A Switching Current, SPST
- RS Stock No.:
- 476-804
- Distrelec Article No.:
- 304-03-092
- Brand:
- RS PRO
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 476-804
- Distrelec Article No.:
- 304-03-092
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 12V dc | |
| Product Type | Power Relay | |
| Contact Configuration | SPST | |
| Mount Type | PCB | |
| Terminal Type | Through Hole | |
| Switching Current | 16A | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 30V dc | |
| Switching AC Voltage | 400V ac | |
| Switching Power | 4.7kVA | |
| Maximum Operating Temperature | 85°C | |
| Coil Resistance | 400Ω | |
| Height | 20.6mm | |
| Width | 16mm | |
| Length | 21mm | |
| Standards/Approvals | RoHS | |
| Coil Power | 360mW | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 12V dc | ||
Product Type Power Relay | ||
Contact Configuration SPST | ||
Mount Type PCB | ||
Terminal Type Through Hole | ||
Switching Current 16A | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 30V dc | ||
Switching AC Voltage 400V ac | ||
Switching Power 4.7kVA | ||
Maximum Operating Temperature 85°C | ||
Coil Resistance 400Ω | ||
Height 20.6mm | ||
Width 16mm | ||
Length 21mm | ||
Standards/Approvals RoHS | ||
Coil Power 360mW | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
- COO (Country of Origin):
- CN
High Current (20A) Subminiature Relays
High switching current capability: up to 20A
UL & CUL TV-8 rating at 125Vac
2.5kV dielectric strength (between coil and contacts)
Surge voltage up to 6kV (between coil and contacts)
Fully sealed (wash tight) construction
Approvals
UL (File no. E134517), VDE (File no. 40017837)
Standards
IEC 60335-1
