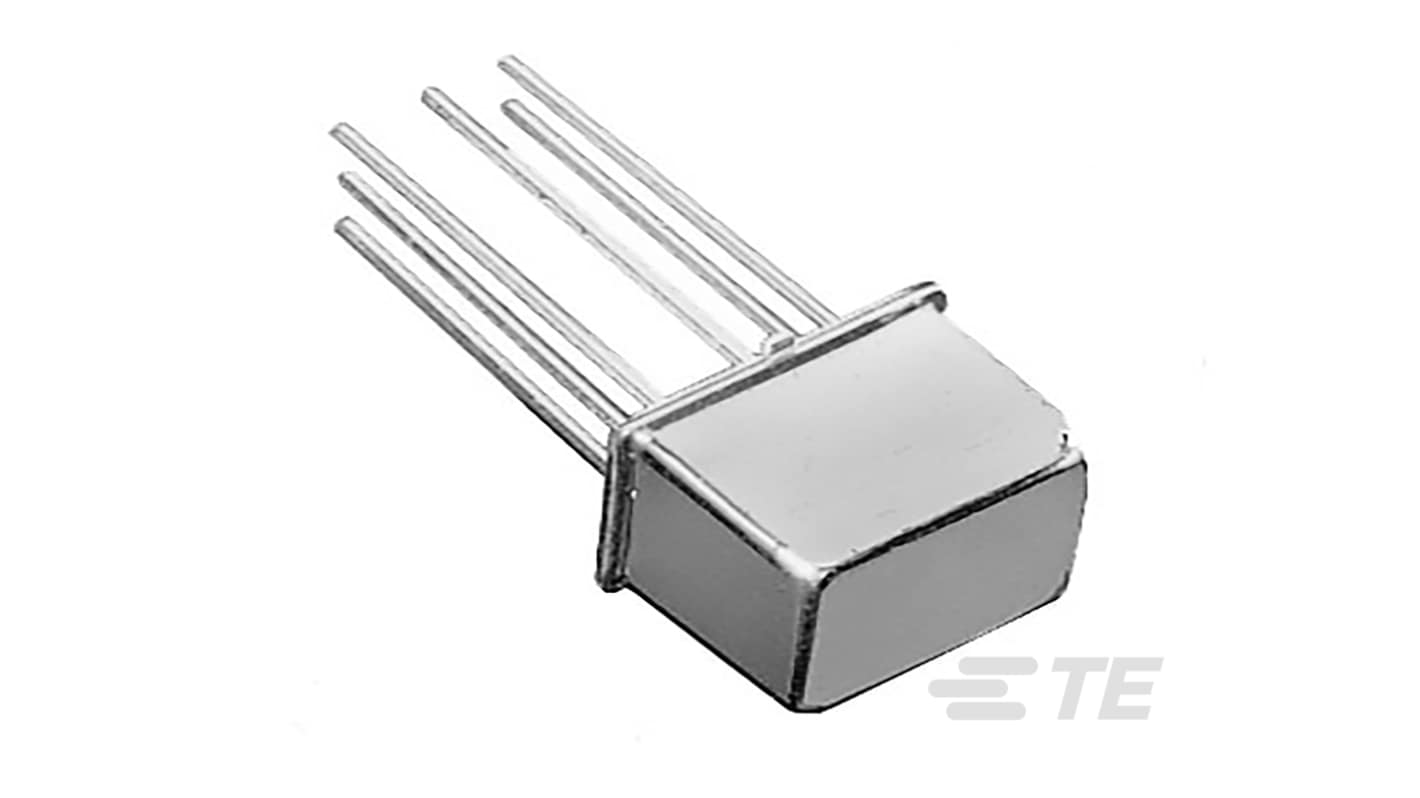

TE Connectivity Board Power Relay, 26.5V dc Coil, 1A Switching Current, DPDT

View all Power Relays

Subtotal (1 pack of 2 units)*

£148.30

(exc. VAT)

£177.96

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£148.30£74.15

*price indicative

RS Stock No.:
471-085
Distrelec Article No.:
304-48-076
Mfr. Part No.:
1617147-4
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Coil Voltage

26.5V dc

Product Type

Power Relay

Contact Configuration

DPDT

Mount Type

Board

Series

JMGAP-26M

Terminal Type

Extended Lead

Switching Current

1A

Switching DC Voltage

28V dc

Minimum Operating Temperature

-65°C

Maximum Operating Temperature

125°C

Coil Resistance

1.6kΩ

Coil Power

0.45W

Standards/Approvals

No

Contact Resistance

100mΩ

Non Compliant

COO (Country of Origin):
IN
The TE Connectivity general-purpose signal relay is specifically designed for efficient DC applications. Combining a non-polarised, monostable magnetic system with dual Form C DPDT-CO contact arrangements, this relay is suitable for a variety of operational needs. With a contact rating of 1 A and a coil voltage of 26.5 VDC, it ensures reliable performance and versatility. Its hermetically sealed enclosure provides robust reliability, allowing it to withstand harsh environmental conditions. An impressive operating temperature range of -65 to 125 °C ensures that this product performs admirably under varying climates. Additionally, the relay's extended lead termination facilitates easy installation into board-mounted setups, making it a preferred choice for engineers seeking a dependable solution in signal relay technology.

Designed for precise DC signal control and low power consumption

Offers dual contacts for enhanced functionality in signalling applications

Features extended leads for straightforward board mounting

Boasts a wide operating temperature range for optimal performance in diverse environments

Compact design allows for saving valuable space on circuit boards

Quality construction ensures long-term reliability and durability

Maintains consistent operation even in the presence of mechanical shock and vibration
