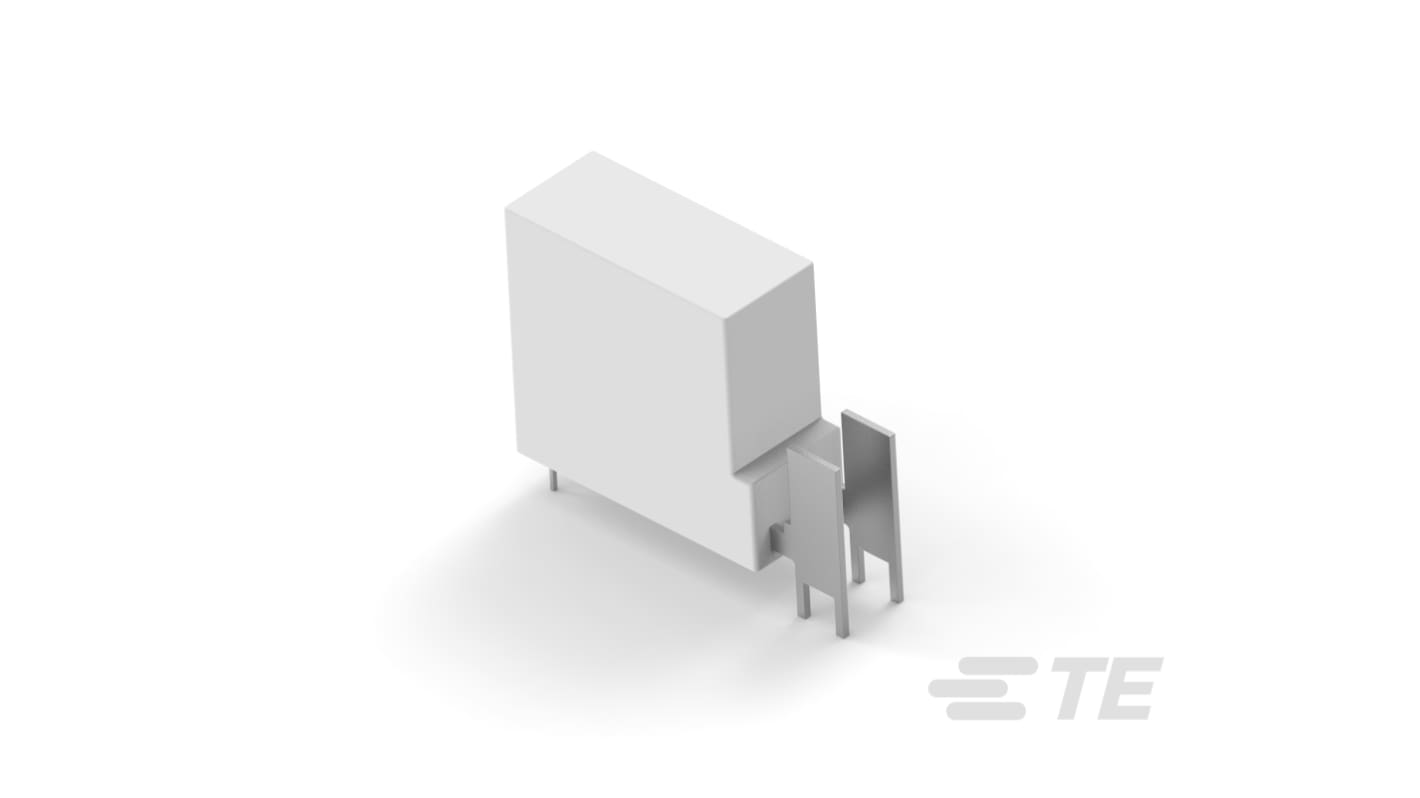

TE Connectivity Panel Power Relay, 24V Coil, 16A Switching Current, SPST
- RS Stock No.:
- 470-032
- Distrelec Article No.:
- 304-61-754
- Mfr. Part No.:
- 6-1415536-7
- Brand:
- TE Connectivity
Subtotal (1 tray of 25 units)*
£166.18
(exc. VAT)
£199.42
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 23 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £166.18 | £6.647 |
*price indicative
- RS Stock No.:
- 470-032
- Distrelec Article No.:
- 304-61-754
- Mfr. Part No.:
- 6-1415536-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Power Relay | |
| Coil Voltage | 24V | |
| Contact Configuration | SPST | |
| Mount Type | Panel | |
| Series | SCHRACK 41063 | |
| Switching Current | 16A | |
| Switching AC Voltage | 400V ac | |
| Minimum Operating Temperature | -20°C | |
| Coil Resistance | 1.6kΩ | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | UL Coil Insulation Class F | |
| Coil Power | 360mW | |
| Width | 12.5mm | |
| Height | 28.5mm | |
| Length | 40.5mm | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Power Relay | ||
Coil Voltage 24V | ||
Contact Configuration SPST | ||
Mount Type Panel | ||
Series SCHRACK 41063 | ||
Switching Current 16A | ||
Switching AC Voltage 400V ac | ||
Minimum Operating Temperature -20°C | ||
Coil Resistance 1.6kΩ | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals UL Coil Insulation Class F | ||
Coil Power 360mW | ||
Width 12.5mm | ||
Height 28.5mm | ||
Length 40.5mm | ||
Contact Material Silver Nickel Alloy | ||
- COO (Country of Origin):
- CZ
The TE Connectivity Power relay is designed to deliver exceptional performance in various demanding applications. Featuring a monostable DC magnetic system, it ensures reliable operation with a coil power rating of 360 mW and a coil resistance of 1600 Ω. This product exemplifies robust engineering with its UL Coil Insulation Class F, making it suitable for environments where electrical reliability is crucial. Ideal for printed circuit board mounting, the relay's compact dimensions and thoughtful design accommodate space constraints while delivering superior functionality. Its single Form A (normally open) contact arrangement provides versatility, ensuring compatibility with a wide range of electronic systems. With a maximum contact switching voltage of 400 VAC, this relay rises to meet the challenges posed by modern power management, marking it as a dependable choice for both industrial and commercial applications.
Monostable DC design enhances operational reliability
Compact size facilitates installation in tight spaces
High dielectric strength separates electrical components for safety
UL-certified insulation class ensures compliance with safety standards
Lightweight construction aids in reducing overall product weight
Versatile mounting options expedite the assembly process
Compatible with multiple TE products for seamless integration
