TE Connectivity PCB Power Relay, 230V ac Coil, 8A Switching Current, DPDT
- RS Stock No.:
- 420-312
- Mfr. Part No.:
- XT424T30 1887203-1
- Brand:
- TE Connectivity

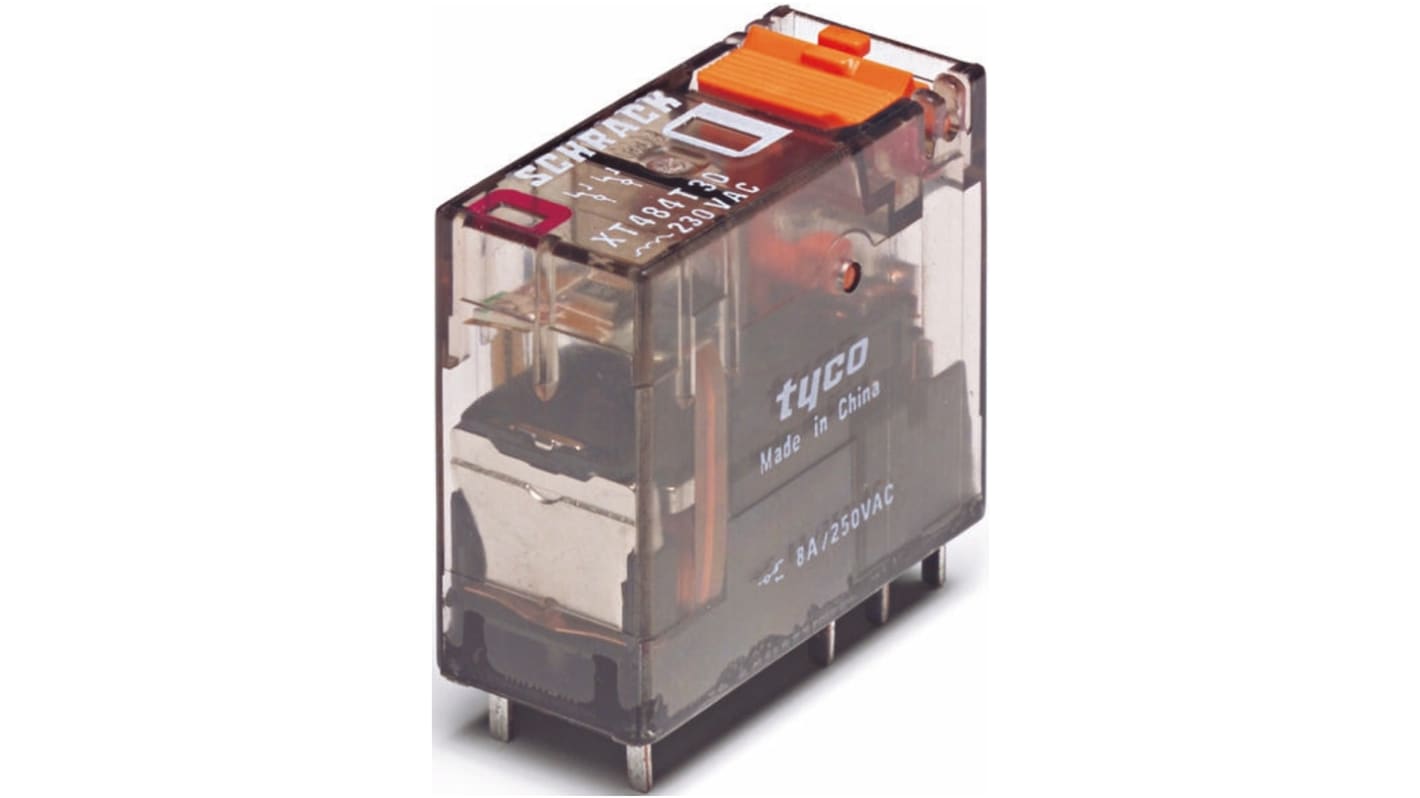

Image representative of range
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 420-312
- Mfr. Part No.:
- XT424T30 1887203-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Power Relay | |
| Coil Voltage | 230V ac | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Series | XT | |
| Terminal Type | Through Hole | |
| Switching Current | 8A | |
| Switching Power | 2kVA | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 400V ac | |
| Coil Resistance | 32.5kΩ | |
| Maximum Operating Temperature | 70°C | |
| Coil Power | 760mW | |
| Width | 13.7mm | |
| Height | 26.7mm | |
| Length | 29mm | |
| Standards/Approvals | VDE, UL, RoHS, IEC | |
| Contact Material | Silver Alloy | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Power Relay | ||
Coil Voltage 230V ac | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Series XT | ||
Terminal Type Through Hole | ||
Switching Current 8A | ||
Switching Power 2kVA | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 400V ac | ||
Coil Resistance 32.5kΩ | ||
Maximum Operating Temperature 70°C | ||
Coil Power 760mW | ||
Width 13.7mm | ||
Height 26.7mm | ||
Length 29mm | ||
Standards/Approvals VDE, UL, RoHS, IEC | ||
Contact Material Silver Alloy | ||
Interface Plug In Relay - XT Series
Applications include panel boards and mechanical engineering
Reinforced insulation, protection class II (VDE 0700)
AgNi 90 / 10 contacts
Suitable for use in Tyco standard RT sockets
Recycleable packaging
